Automated F(C)CS analysis of clone # 1368

Created on 12/08/2014
Back to overview

Gene and protein information

Clone # 1368
Gene symbol: KIAA1967
Description: KIAA1967
Molecular weight (with FP): 129.9 kDa
Localisation: homogeneous nucleus, dim nucleoli, no speckles, no cytoplasm

Image and FCS data

Images Ch1 (EYFP construct), Ch2 (H2B-mCherry) with measurement points

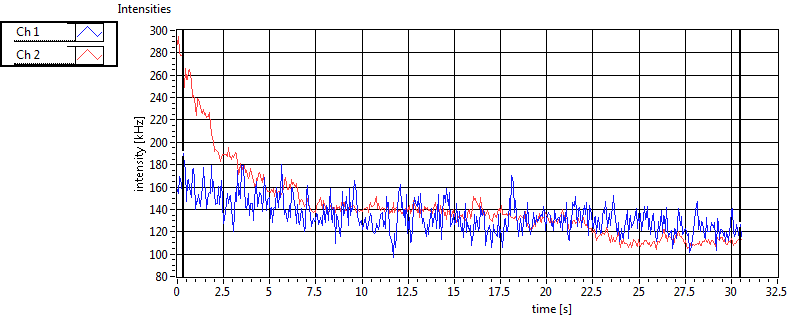

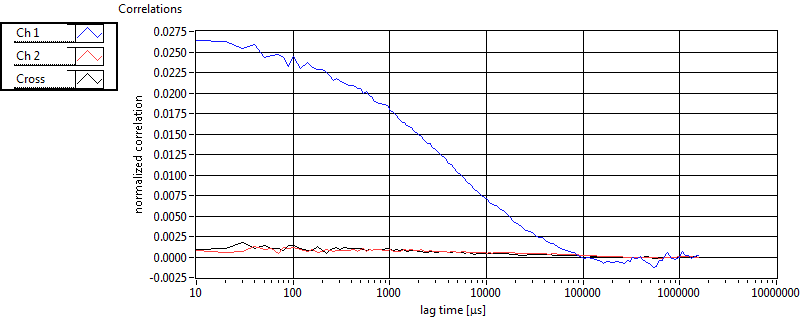

Point 1, intensity traces and correlation functions

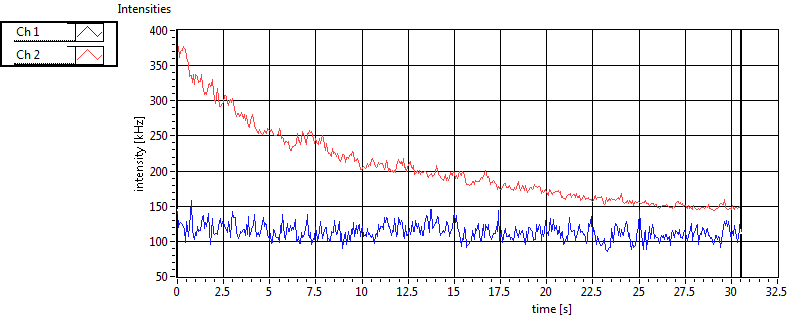

Point 2, intensity traces and correlation functions

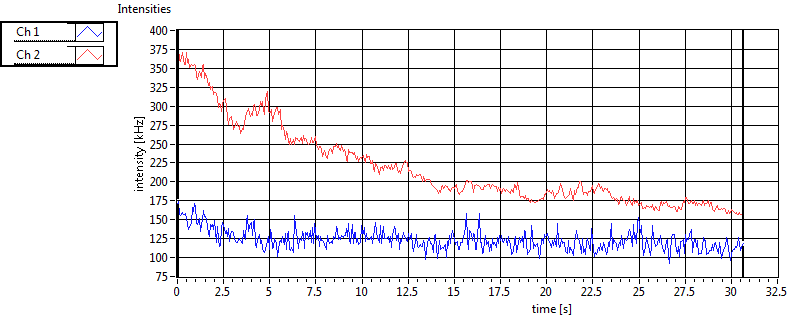

Point 3, intensity traces and correlation functions

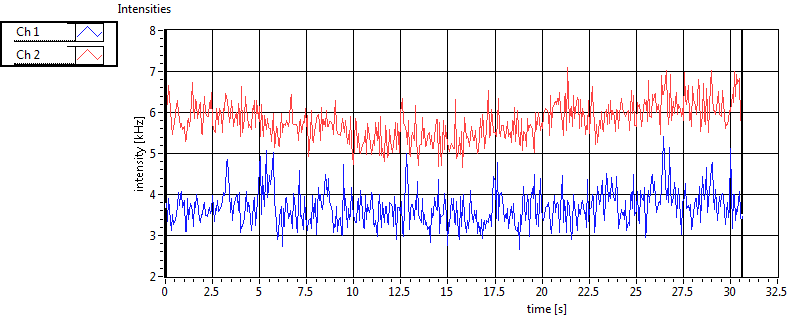

Point 4, intensity traces and correlation functions

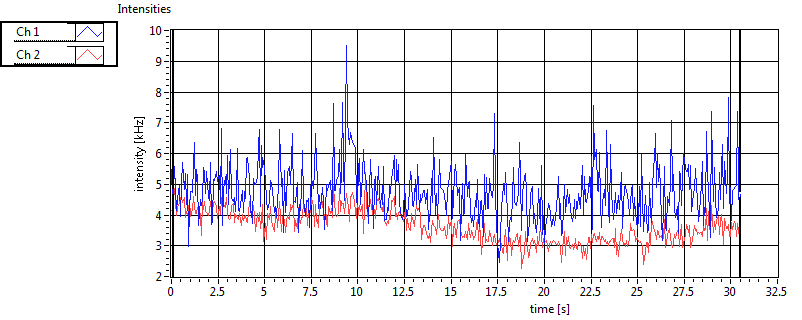

Point 5, intensity traces and correlation functions

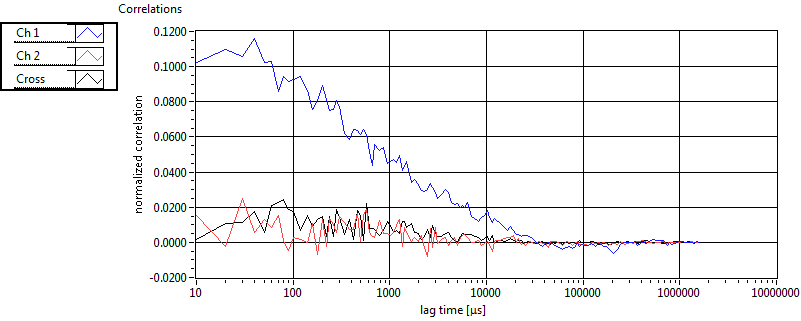

Point 6, intensity traces and correlation functions

Sessions

1 20111125\U03--V01--1368
2 20111130\U01--V01--1368
3 20111201\U01--V01--1368
4 20111207\U03--V01--1368
5 20111216\U03--V00--1368

Results table

Ch1 ave
Nuc		 Ch1 sd
Nuc		 Ch2 ave
Nuc		 Ch2 sd
Nuc		 Cross ave
Nuc		 Cross sd
Nuc		 Ch1 ave
Cyto		 Ch1 sd
Cyto		 Ch2 ave
Cyto		 Ch2 sd
Cyto		 Cross ave
Cyto		 Cross sd
Cyto
N 6.457E+1 4.440E+1 1.135E+3 5.638E+2 5.343E+0 7.412E+0 1.944E+1 3.067E+1 2.226E+2 2.357E+2 1.612E+1 2.683E+1
N_corr 7.551E+1 5.456E+1 1.626E+3 8.906E+2 7.393E+0 1.099E+1 2.064E+1 4.771E+1 3.124E+2 4.392E+2 5.244E+1 1.697E+2
c [nM] 4.016E+2 2.761E+2 5.266E+3 2.615E+3 2.747E+1 3.811E+1 1.209E+2 1.907E+2 1.032E+3 1.093E+3 8.288E+1 1.379E+2
c_corr [nM] 4.696E+2 3.393E+2 7.542E+3 4.131E+3 3.801E+1 5.649E+1 1.284E+2 2.967E+2 1.449E+3 2.037E+3 2.696E+2 8.723E+2
ratioG 7.308E-2 5.309E-2 3.034E-1 2.131E-1
ratioG_corr 3.879E-3 4.071E-2 1.912E-1 2.452E-1
f_1 9.310E-1 1.041E-1 4.435E-1 2.258E-1 9.668E-1 7.764E-2 8.797E-1 7.293E-2 6.449E-1 3.462E-1 9.399E-1 1.010E-1
tauD_1 [ms] 4.045E+0 1.269E+0 1.860E+0 2.220E-16 2.709E+0 1.208E+0 1.085E+0 1.326E+0 1.860E+0 0.000E+0 1.839E+0 9.936E-1
D_1 [mum^2/s] 3.095E+0 2.306E+0 6.926E+0 3.553E-15 5.890E+0 7.875E+0 2.105E+1 1.670E+1 6.926E+0 0.000E+0 1.266E+1 1.655E+1
alpha_1 9.695E-1 9.762E-2 9.200E-1 8.882E-16 9.705E-1 2.043E-1 9.713E-1 1.351E-1 9.200E-1 0.000E+0 9.546E-1 2.479E-1
f_2 6.904E-2 1.041E-1 5.565E-1 2.258E-1 3.319E-2 7.764E-2 1.203E-1 7.293E-2 3.551E-1 3.462E-1 6.011E-2 1.010E-1
tauD_2 [ms] 4.297E+1 2.211E+1 9.745E+1 1.186E+2 1.021E+2 8.178E+1 2.344E+1 2.631E+1 8.530E+1 1.702E+2 6.079E+1 4.542E+1
D_2 [mum^2/s] 2.913E-1 1.064E-1 4.966E-1 7.251E-1 1.705E-1 9.645E-2 7.586E-1 4.659E-1 8.425E-1 1.056E+0 2.723E-1 1.410E-1
alpha_2 1.223E+0 2.253E-1 1.254E+0 3.219E-1 1.161E+0 2.326E-1 1.164E+0 1.795E-1 1.235E+0 3.444E-1 1.279E+0 3.791E-1
tauD_m [ms] 7.571E+0 7.191E+0 4.970E+1 5.746E+1 8.200E+0 2.267E+1 4.054E+0 6.697E+0 2.209E+1 4.925E+1 7.884E+0 1.724E+1
D_m [mum^2/s] 2.803E+0 1.861E+0 3.404E+0 1.354E+0 5.665E+0 6.959E+0 1.853E+1 1.447E+1 5.032E+0 1.645E+0 1.181E+1 1.610E+1
R [1/s] 1.208E+1 1.220E+1 2.146E+1 3.932E+1
CPM [kHz] 2.618E+0 1.264E+0 4.544E-1 3.533E-1 9.888E-1 6.897E-1 3.116E-1 2.696E-1
CPM_corr [kHz] 2.660E+0 1.269E+0 5.142E-1 3.979E-1 5.074E-1 1.235E+1 5.987E-1 5.425E-1
Int [kHz] 1.598E+2 1.233E+2 2.362E+2 7.158E+1 1.527E+1 2.593E+1 5.754E+1 6.102E+1
Int_corr [kHz] 1.878E+2 1.404E+2 3.774E+2 1.245E+2 1.808E+1 3.501E+1 9.102E+1 1.067E+2
# samples 384 384 307 307 287 287 255 255 32 32 25 25
# cells 141

Histograms

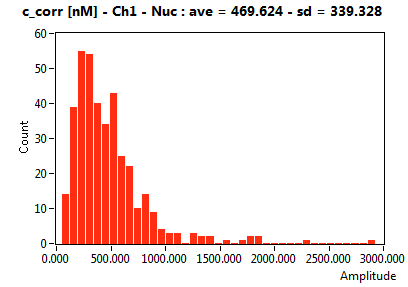

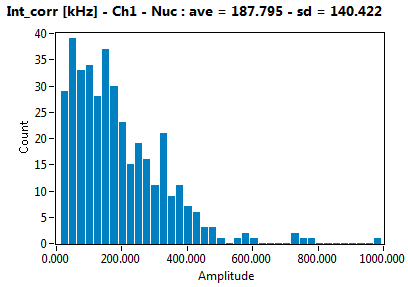

c_corr [nM] - Ch1 - Nuc : ave = 469.624 - sd = 339.328Int_corr [kHz] - Ch1 - Nuc : ave = 187.795 - sd = 140.422r = 0.711 - r^2 = 0.506

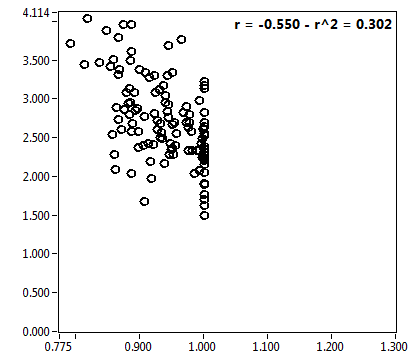

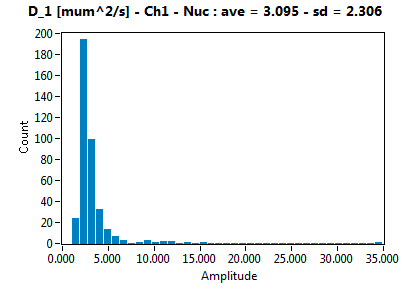

f_1 - Ch1 - Nuc : ave = 0.931 - sd = 0.104D_1 [mum^2/s] - Ch1 - Nuc : ave = 3.095 - sd = 2.306r = -0.550 - r^2 = 0.302

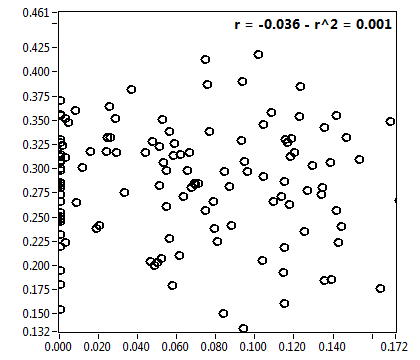

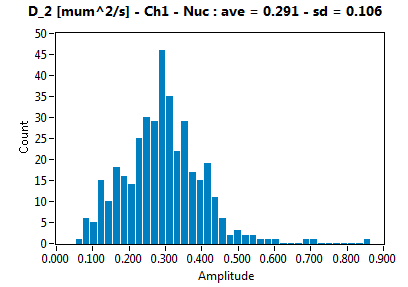

f_2 - Ch1 - Nuc : ave = 0.069 - sd = 0.104D_2 [mum^2/s] - Ch1 - Nuc : ave = 0.291 - sd = 0.106r = -0.036 - r^2 = 0.001

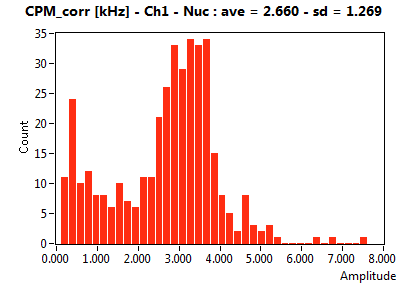

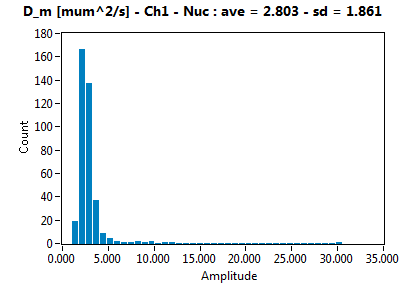

CPM_corr [kHz] - Ch1 - Nuc : ave = 2.660 - sd = 1.269D_m [mum^2/s] - Ch1 - Nuc : ave = 2.803 - sd = 1.861r = -0.004 - r^2 = 1.993E-5

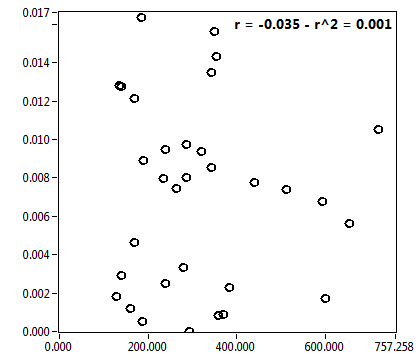

c_corr [nM] - Ch1 - Nuc : ave = 469.624 - sd = 339.328ratioG_corr - Cross - Nuc : ave = 0.004 - sd = 0.041r = -0.035 - r^2 = 0.001

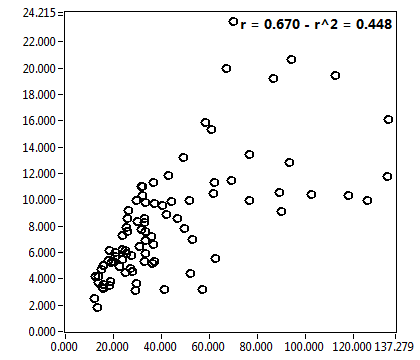

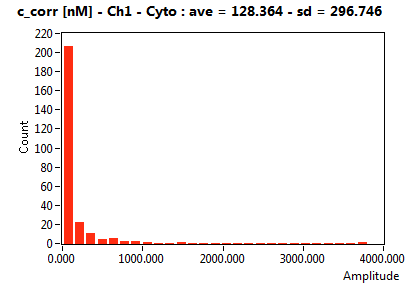

c_corr [nM] - Ch1 - Cyto : ave = 128.364 - sd = 296.746Int_corr [kHz] - Ch1 - Cyto : ave = 18.075 - sd = 35.008r = 0.670 - r^2 = 0.448

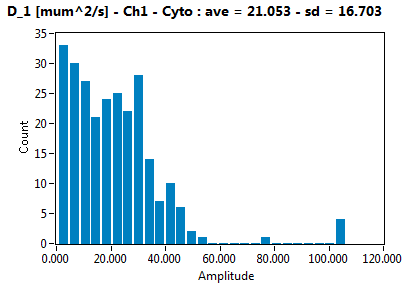

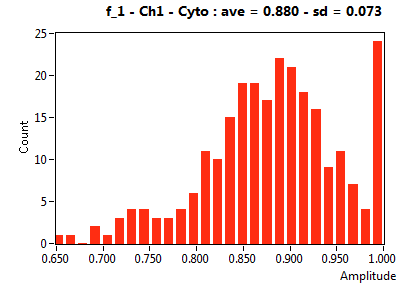

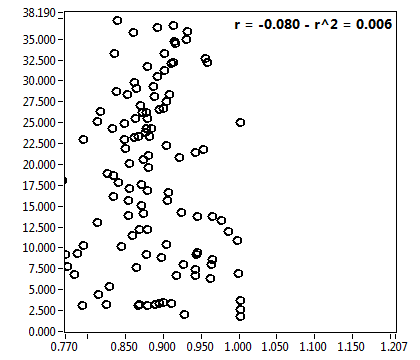

f_1 - Ch1 - Cyto : ave = 0.880 - sd = 0.073D_1 [mum^2/s] - Ch1 - Cyto : ave = 21.053 - sd = 16.703r = -0.080 - r^2 = 0.006

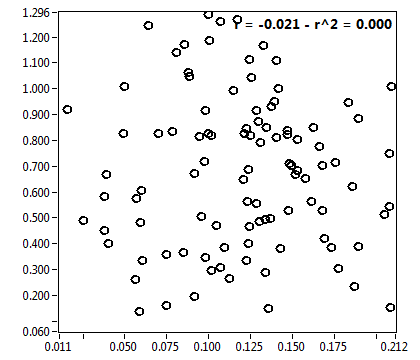

f_2 - Ch1 - Cyto : ave = 0.120 - sd = 0.073D_2 [mum^2/s] - Ch1 - Cyto : ave = 0.759 - sd = 0.466r = -0.021 - r^2 = 0.000

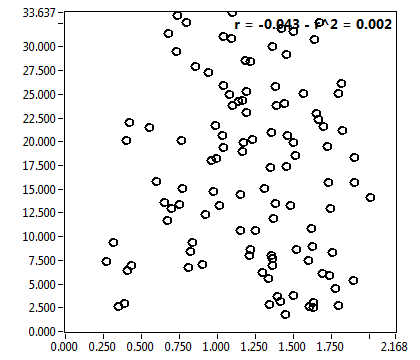

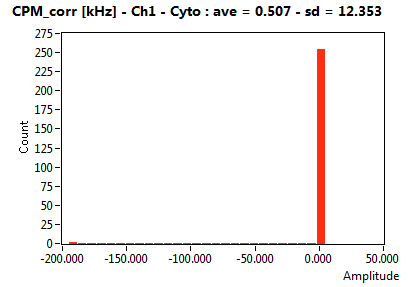

CPM_corr [kHz] - Ch1 - Cyto : ave = 0.507 - sd = 12.353D_m [mum^2/s] - Ch1 - Cyto : ave = 18.534 - sd = 14.470r = -0.043 - r^2 = 0.002
