Automated F(C)CS analysis of clone # ZNF339D10

Created on 12/08/2014
Back to overview

Gene and protein information

Clone # ZNF339D10
Gene symbol: OVOL2
Description: ovo-like 2 (Drosophila)
Molecular weight (with FP): 57.4 kDa
Localisation: granular nucleus, bright nucleoli, no speckles, no cytoplasm

Image and FCS data

Images Ch1 (EYFP construct), Ch2 (H2B-mCherry) with measurement points


Point 1, intensity traces and correlation functions

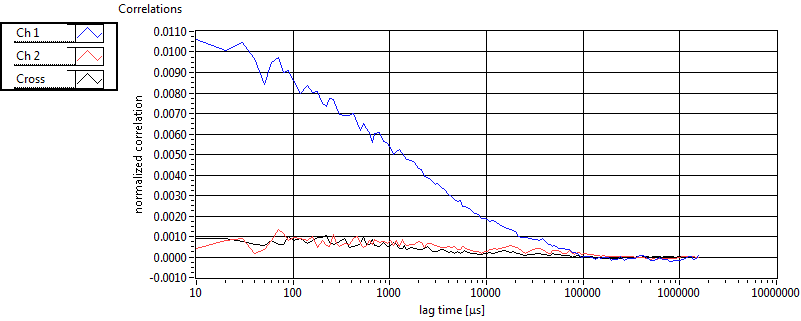

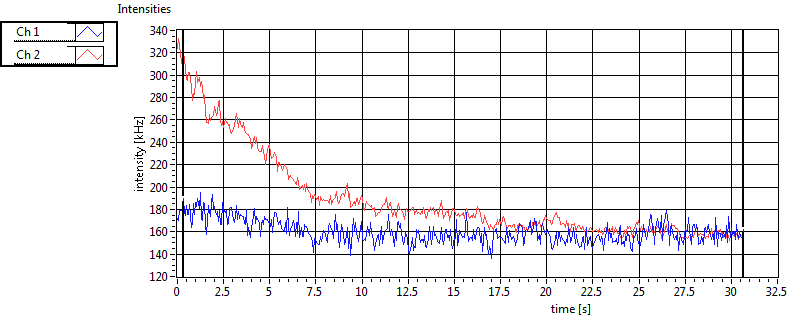

Point 2, intensity traces and correlation functions

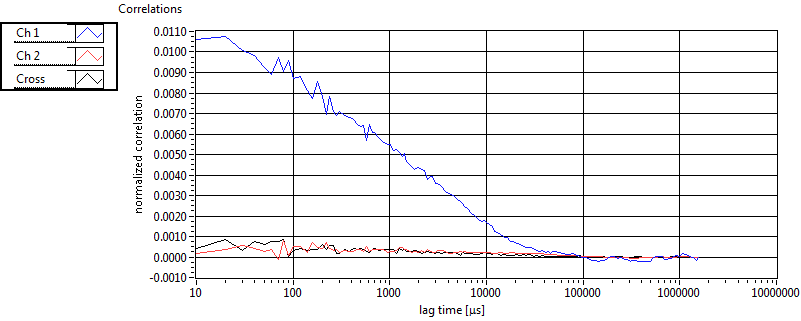

Point 3, intensity traces and correlation functions

Point 4, intensity traces and correlation functions

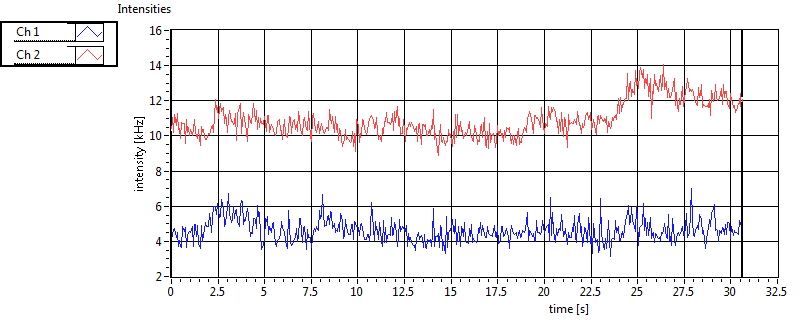

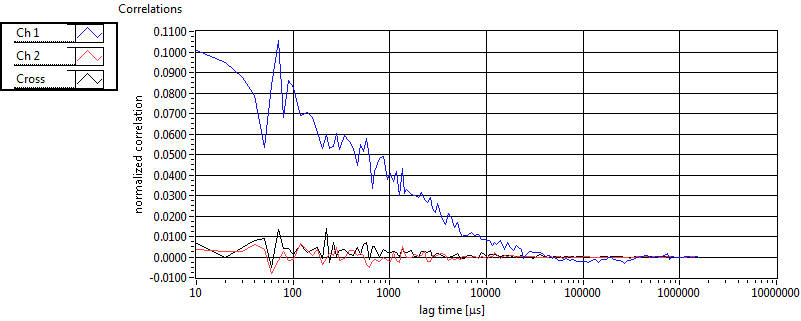

Point 5, intensity traces and correlation functions

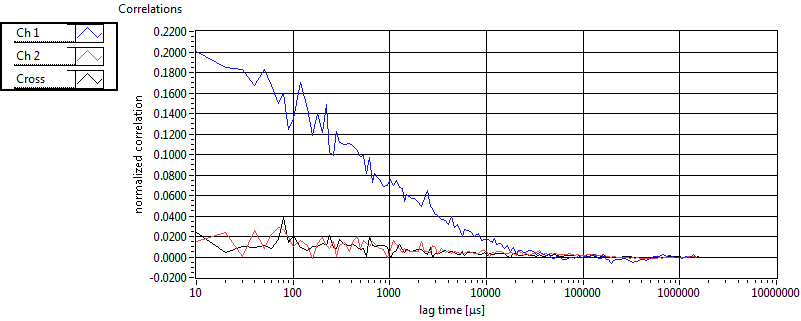

Point 6, intensity traces and correlation functions

Sessions

1 20120202\U01--V00--ZNF339D10
2 20120207\U01--V00--ZNF339D10
3 20120221\U01--V00--ZNF339D10
4 20120306\U01--V00--ZNF339D10
5 20120315\U00--V00--ZNF339D10

Results table

Ch1 ave
Nuc		 Ch1 sd
Nuc		 Ch2 ave
Nuc		 Ch2 sd
Nuc		 Cross ave
Nuc		 Cross sd
Nuc		 Ch1 ave
Cyto		 Ch1 sd
Cyto		 Ch2 ave
Cyto		 Ch2 sd
Cyto		 Cross ave
Cyto		 Cross sd
Cyto
N 1.467E+2 7.466E+1 1.093E+3 5.342E+2 2.075E+1 1.880E+1 2.734E+1 3.998E+1 3.098E+2 1.591E+2 3.862E+1 3.906E+1
N_corr 1.545E+2 7.879E+1 1.583E+3 9.445E+2 2.260E+1 1.986E+1 2.551E+1 4.212E+1 3.783E+2 2.282E+2 4.191E+1 4.414E+1
c [nM] 9.121E+2 4.643E+2 5.071E+3 2.478E+3 1.067E+2 9.667E+1 1.701E+2 2.487E+2 1.437E+3 7.379E+2 1.985E+2 2.008E+2
c_corr [nM] 9.609E+2 4.900E+2 7.343E+3 4.381E+3 1.162E+2 1.021E+2 1.586E+2 2.619E+2 1.755E+3 1.058E+3 2.155E+2 2.269E+2
ratioG 1.381E-1 7.633E-2 3.205E-1 1.605E-1
ratioG_corr 2.816E-2 3.934E-2 2.784E-1 1.652E-1
f_1 8.478E-1 1.142E-1 3.649E-1 1.974E-1 9.654E-1 7.154E-2 9.153E-1 7.774E-2 6.139E-1 3.487E-1 9.518E-1 1.186E-1
tauD_1 [ms] 2.901E+0 1.997E+0 1.860E+0 4.441E-16 2.316E+0 2.140E+0 1.086E+0 7.284E-1 1.860E+0 4.441E-16 2.514E+0 6.629E-1
D_1 [mum^2/s] 4.622E+0 1.835E+0 6.926E+0 8.882E-16 8.174E+0 7.545E+0 1.400E+1 8.550E+0 6.926E+0 0.000E+0 5.245E+0 1.981E+0
alpha_1 9.659E-1 9.477E-2 9.200E-1 0.000E+0 7.691E-1 2.013E-1 9.315E-1 1.329E-1 9.200E-1 0.000E+0 1.170E+0 9.632E-2
f_2 1.522E-1 1.142E-1 6.351E-1 1.974E-1 3.464E-2 7.154E-2 8.471E-2 7.774E-2 3.861E-1 3.487E-1 4.818E-2 1.186E-1
tauD_2 [ms] 3.236E+1 1.823E+1 7.347E+1 8.208E+1 8.920E+1 8.513E+1 2.172E+1 1.964E+1 5.311E+1 9.325E+1 5.685E+1 1.880E+1
D_2 [mum^2/s] 3.865E-1 1.321E-1 5.639E-1 8.167E-1 1.981E-1 9.594E-2 6.596E-1 3.000E-1 1.961E+0 1.824E+0 2.305E-1 6.188E-2
alpha_2 1.406E+0 3.123E-1 1.269E+0 3.066E-1 1.141E+0 1.850E-1 1.187E+0 1.732E-1 1.417E+0 4.691E-1 1.094E+0 1.761E-1
tauD_m [ms] 7.104E+0 4.626E+0 4.648E+1 5.493E+1 6.632E+0 1.916E+1 2.662E+0 2.124E+0 1.713E+1 3.340E+1 6.720E+0 1.098E+1
D_m [mum^2/s] 3.948E+0 1.453E+0 2.917E+0 1.272E+0 7.884E+0 7.341E+0 1.269E+1 7.526E+0 5.396E+0 1.319E+0 4.963E+0 1.996E+0
R [1/s] 1.673E+1 1.623E+1 6.293E+0 1.344E+1
CPM [kHz] 1.487E+0 3.019E-1 3.254E-1 2.809E-1 5.830E-1 3.968E-1 2.767E-1 1.361E-1
CPM_corr [kHz] 1.503E+0 3.028E-1 3.981E-1 3.444E-1 8.906E-1 5.984E-1 3.121E-1 1.461E-1
Int [kHz] 2.327E+2 1.144E+2 1.825E+2 6.674E+1 1.117E+1 1.449E+1 5.944E+1 2.181E+1
Int_corr [kHz] 2.464E+2 1.185E+2 3.101E+2 1.284E+2 1.238E+1 1.605E+1 8.336E+1 4.064E+1
# samples 151 151 110 110 106 106 122 122 12 12 11 11
# cells 53

Histograms

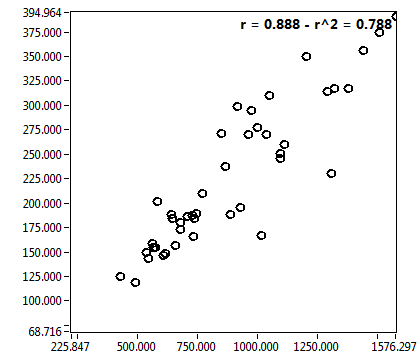

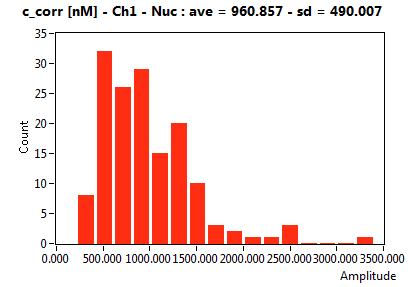

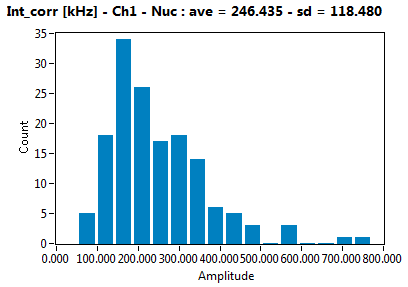

c_corr [nM] - Ch1 - Nuc : ave = 960.857 - sd = 490.007Int_corr [kHz] - Ch1 - Nuc : ave = 246.435 - sd = 118.480r = 0.888 - r^2 = 0.788

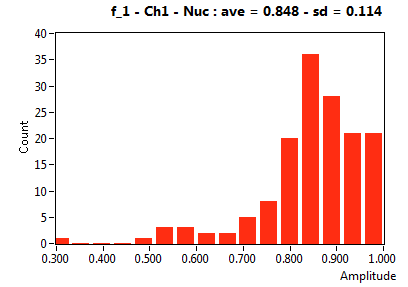

f_1 - Ch1 - Nuc : ave = 0.848 - sd = 0.114D_1 [mum^2/s] - Ch1 - Nuc : ave = 4.622 - sd = 1.835r = 0.072 - r^2 = 0.005

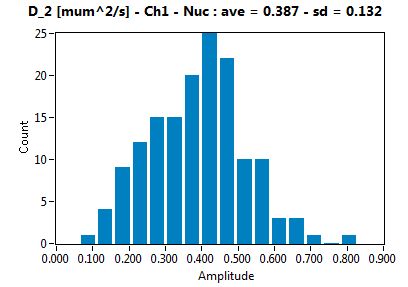

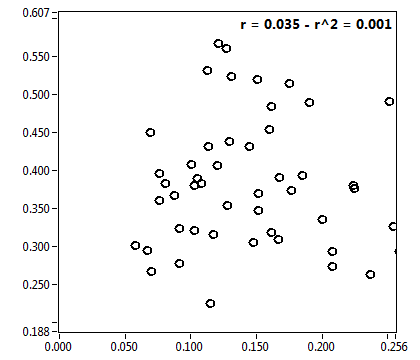

f_2 - Ch1 - Nuc : ave = 0.152 - sd = 0.114D_2 [mum^2/s] - Ch1 - Nuc : ave = 0.387 - sd = 0.132r = 0.035 - r^2 = 0.001

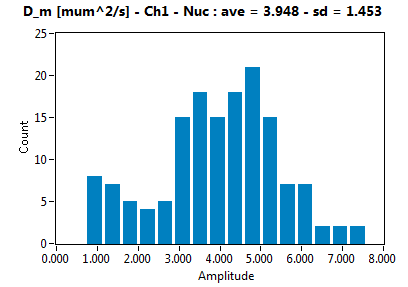

CPM_corr [kHz] - Ch1 - Nuc : ave = 1.503 - sd = 0.303D_m [mum^2/s] - Ch1 - Nuc : ave = 3.948 - sd = 1.453r = 0.293 - r^2 = 0.086

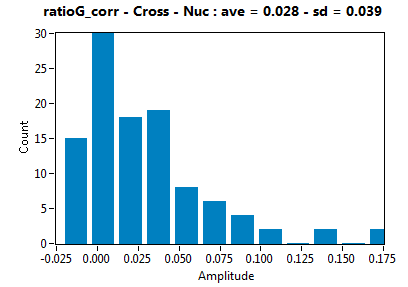

c_corr [nM] - Ch1 - Nuc : ave = 960.857 - sd = 490.007ratioG_corr - Cross - Nuc : ave = 0.028 - sd = 0.039r = 0.210 - r^2 = 0.044

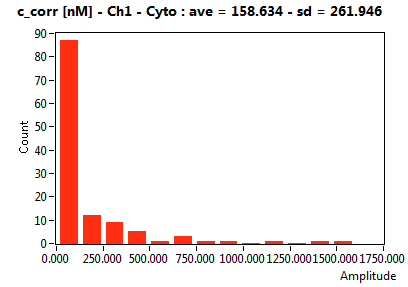

c_corr [nM] - Ch1 - Cyto : ave = 158.634 - sd = 261.946Int_corr [kHz] - Ch1 - Cyto : ave = 12.383 - sd = 16.047r = 0.528 - r^2 = 0.278

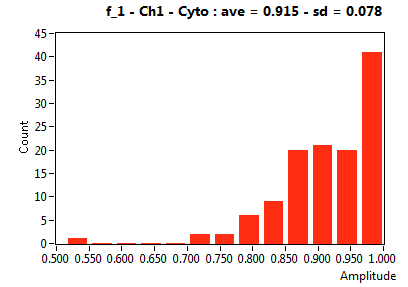

f_1 - Ch1 - Cyto : ave = 0.915 - sd = 0.078D_1 [mum^2/s] - Ch1 - Cyto : ave = 13.998 - sd = 8.550r = -0.091 - r^2 = 0.008

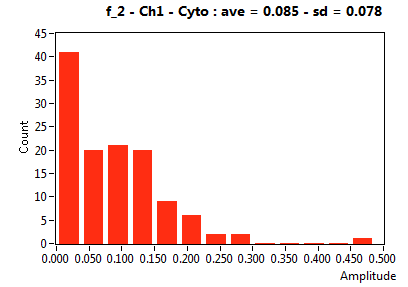

f_2 - Ch1 - Cyto : ave = 0.085 - sd = 0.078D_2 [mum^2/s] - Ch1 - Cyto : ave = 0.660 - sd = 0.300r = -0.089 - r^2 = 0.008

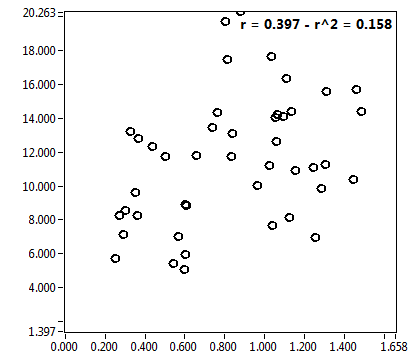

CPM_corr [kHz] - Ch1 - Cyto : ave = 0.891 - sd = 0.598D_m [mum^2/s] - Ch1 - Cyto : ave = 12.687 - sd = 7.526r = 0.397 - r^2 = 0.158
