Automated F(C)CS analysis of clone # 1909hi

Created on 12/08/2014
Back to overview

Gene and protein information

Clone # 1909hi
Gene symbol: DMAP1
Description: DNA methyltransferase 1 associated protein 1
Molecular weight (with FP): 80.0 kDa
Localisation: granular nucleus, ave. nucleoli, no speckles, no cytoplasm

Image and FCS data

Images Ch1 (EYFP construct), Ch2 (H2B-mCherry) with measurement points

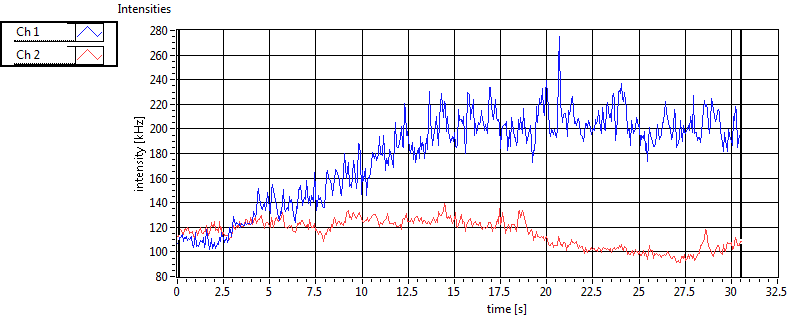

Point 1, intensity traces and correlation functions

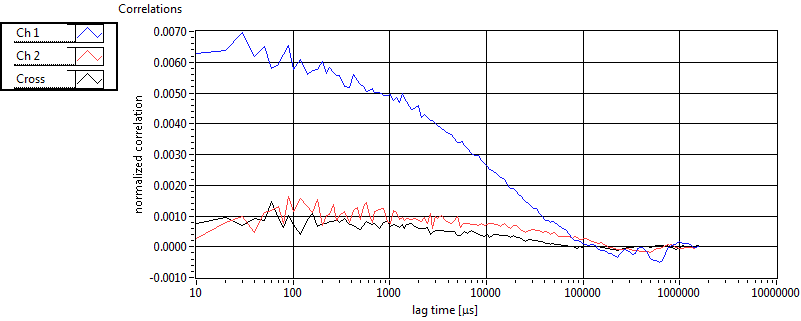

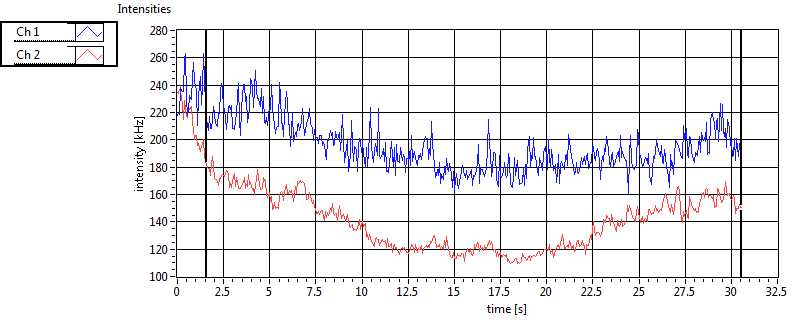

Point 2, intensity traces and correlation functions

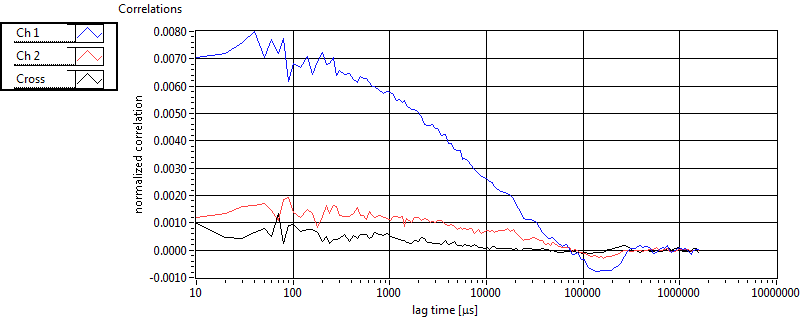

Point 3, intensity traces and correlation functions

Point 4, intensity traces and correlation functions

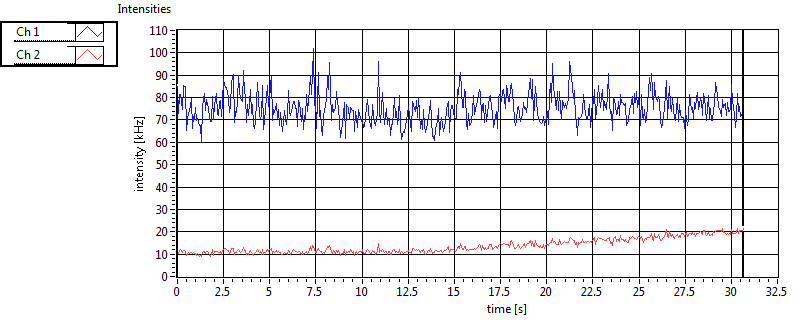

Point 5, intensity traces and correlation functions

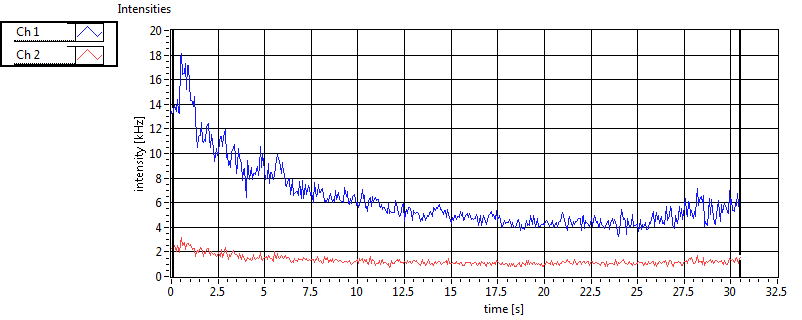

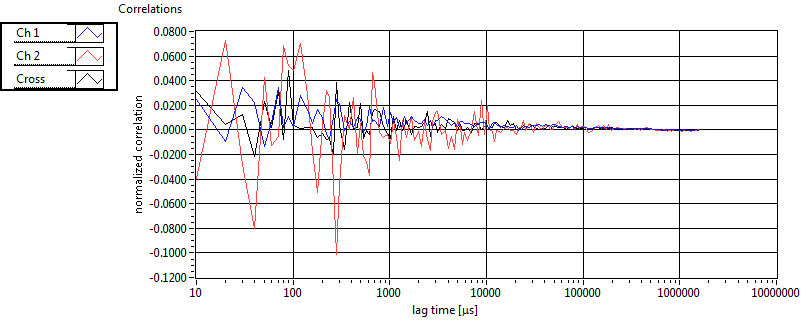

Point 6, intensity traces and correlation functions

Sessions

1 20130109\U02--V00--1909hi
2 20130110\U01--V01--1909hi
3 20130118\X05--Y00--1909hi
4 20130118\X06--Y00--1909hi

Results table

Ch1 ave
Nuc		 Ch1 sd
Nuc		 Ch2 ave
Nuc		 Ch2 sd
Nuc		 Cross ave
Nuc		 Cross sd
Nuc		 Ch1 ave
Cyto		 Ch1 sd
Cyto		 Ch2 ave
Cyto		 Ch2 sd
Cyto		 Cross ave
Cyto		 Cross sd
Cyto
N 1.718E+2 1.024E+2 9.963E+2 8.431E+2 3.161E+1 3.133E+1 4.890E+1 4.005E+1 1.385E+2 1.637E+2 2.846E+1 1.907E+1
N_corr 1.889E+2 1.201E+2 1.191E+3 9.684E+2 4.542E+1 6.330E+1 6.263E+1 6.106E+1 1.611E+2 3.057E+2 6.772E+1 1.097E+2
c [nM] 1.069E+3 6.370E+2 4.621E+3 3.910E+3 1.625E+2 1.611E+2 3.041E+2 2.491E+2 6.425E+2 7.594E+2 1.463E+2 9.802E+1
c_corr [nM] 1.175E+3 7.468E+2 5.526E+3 4.492E+3 2.335E+2 3.254E+2 3.895E+2 3.798E+2 7.470E+2 1.418E+3 3.482E+2 5.637E+2
ratioG 1.640E-1 8.562E-2 6.301E-1 2.048E-1
ratioG_corr 5.088E-2 1.030E-1 2.242E-1 1.121E-1
f_1 8.354E-1 1.709E-1 4.132E-1 2.460E-1 9.421E-1 1.134E-1 8.882E-1 1.425E-1 3.540E-1 2.543E-1 7.882E-1 1.819E-1
tauD_1 [ms] 6.034E+0 5.793E+0 1.860E+0 4.441E-16 3.842E+0 3.089E+0 7.559E+0 8.946E+0 1.860E+0 2.220E-16 8.591E+0 8.156E+0
D_1 [mum^2/s] 5.072E+0 9.031E+0 6.926E+0 8.882E-16 6.573E+0 1.002E+1 9.526E+0 1.685E+1 6.926E+0 8.882E-16 3.736E+0 7.799E+0
alpha_1 9.949E-1 1.237E-1 9.200E-1 1.110E-16 9.629E-1 2.163E-1 9.402E-1 1.449E-1 9.200E-1 2.220E-16 9.169E-1 1.544E-1
f_2 1.646E-1 1.709E-1 5.868E-1 2.460E-1 5.791E-2 1.134E-1 1.118E-1 1.425E-1 6.460E-1 2.543E-1 2.118E-1 1.819E-1
tauD_2 [ms] 5.645E+1 3.115E+1 7.163E+1 9.786E+1 1.106E+2 7.505E+1 8.529E+1 1.028E+2 4.410E+1 3.776E+1 9.888E+1 7.553E+1
D_2 [mum^2/s] 2.774E-1 2.778E-1 6.168E-1 8.923E-1 1.439E-1 7.198E-2 3.057E-1 3.481E-1 5.399E-1 4.737E-1 1.689E-1 8.435E-2
alpha_2 1.410E+0 3.229E-1 1.459E+0 3.752E-1 1.190E+0 2.697E-1 1.268E+0 2.470E-1 1.196E+0 2.553E-1 1.547E+0 3.803E-1
tauD_m [ms] 1.485E+1 1.118E+1 3.839E+1 6.408E+1 1.010E+1 1.420E+1 1.833E+1 2.733E+1 2.721E+1 2.374E+1 2.632E+1 1.922E+1
D_m [mum^2/s] 3.784E+0 4.557E+0 3.314E+0 1.446E+0 6.286E+0 1.004E+1 8.770E+0 1.649E+1 2.816E+0 1.622E+0 3.113E+0 7.522E+0
R [1/s] 4.705E+0 8.733E+0 1.426E+0 7.877E+0
CPM [kHz] 1.026E+0 7.286E-1 3.381E-1 2.081E-1 2.820E+0 3.521E+0 4.930E-1 3.849E-1
CPM_corr [kHz] 1.046E+0 7.261E-1 4.034E-1 2.749E-1 2.919E+0 3.523E+0 2.082E+0 1.967E+0
Int [kHz] 1.577E+2 1.096E+2 2.011E+2 1.248E+2 9.570E+1 9.476E+1 4.273E+1 4.326E+1
Int_corr [kHz] 1.762E+2 1.282E+2 2.737E+2 1.431E+2 1.310E+2 1.393E+2 7.983E+1 1.134E+2
# samples 189 189 155 155 86 86 131 131 76 76 68 68
# cells 80

Histograms

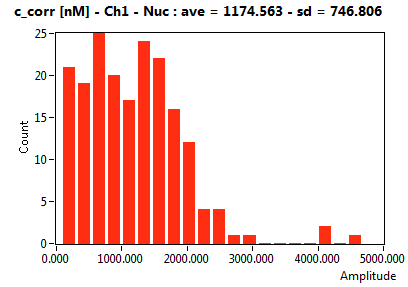

c_corr [nM] - Ch1 - Nuc : ave = 1174.563 - sd = 746.806Int_corr [kHz] - Ch1 - Nuc : ave = 176.183 - sd = 128.209r = 0.637 - r^2 = 0.406

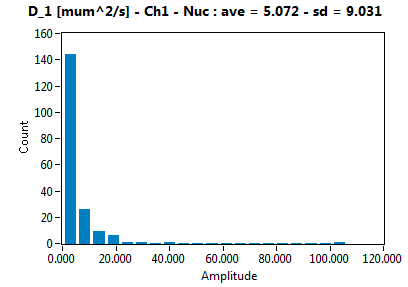

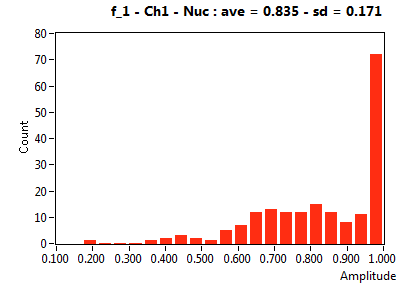

f_1 - Ch1 - Nuc : ave = 0.835 - sd = 0.171D_1 [mum^2/s] - Ch1 - Nuc : ave = 5.072 - sd = 9.031r = -0.513 - r^2 = 0.263

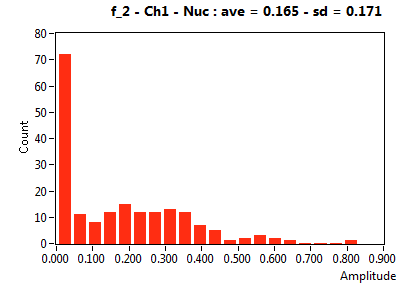

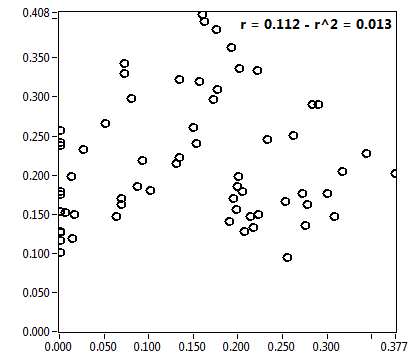

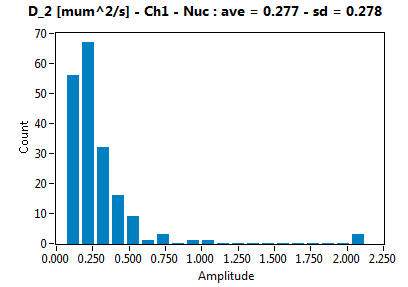

f_2 - Ch1 - Nuc : ave = 0.165 - sd = 0.171D_2 [mum^2/s] - Ch1 - Nuc : ave = 0.277 - sd = 0.278r = 0.112 - r^2 = 0.013

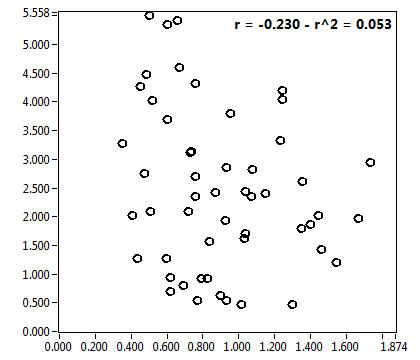

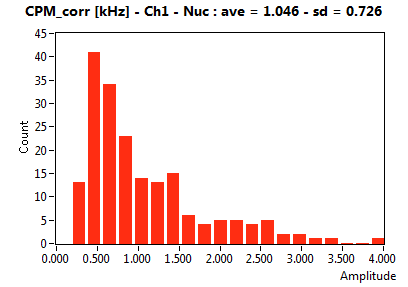

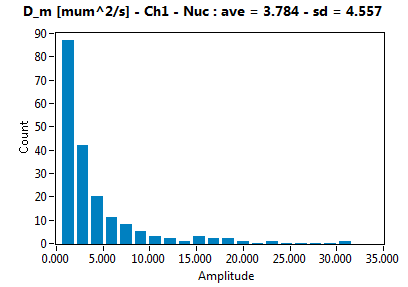

CPM_corr [kHz] - Ch1 - Nuc : ave = 1.046 - sd = 0.726D_m [mum^2/s] - Ch1 - Nuc : ave = 3.784 - sd = 4.557r = -0.230 - r^2 = 0.053

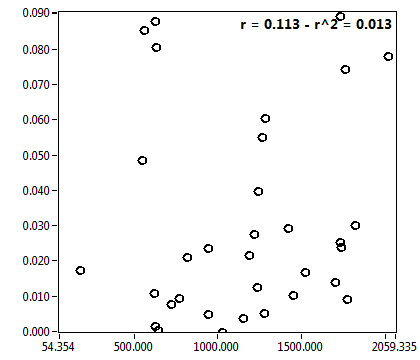

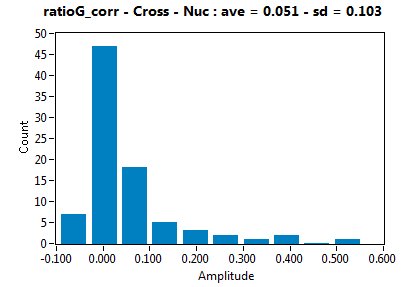

c_corr [nM] - Ch1 - Nuc : ave = 1174.563 - sd = 746.806ratioG_corr - Cross - Nuc : ave = 0.051 - sd = 0.103r = 0.113 - r^2 = 0.013

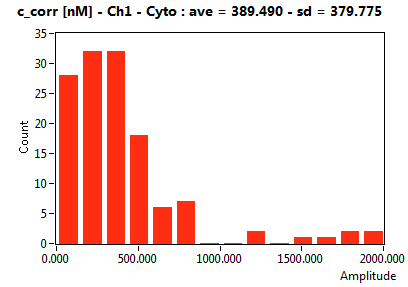

c_corr [nM] - Ch1 - Cyto : ave = 389.490 - sd = 379.775Int_corr [kHz] - Ch1 - Cyto : ave = 130.958 - sd = 139.269r = 0.275 - r^2 = 0.075

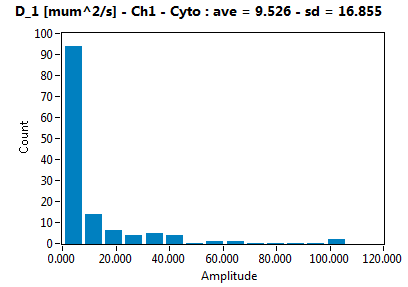

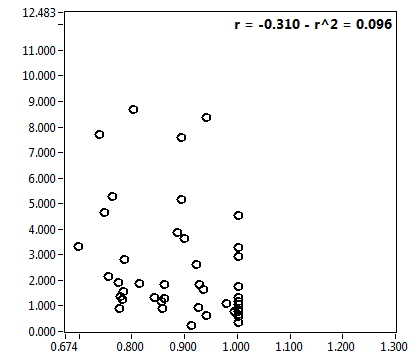

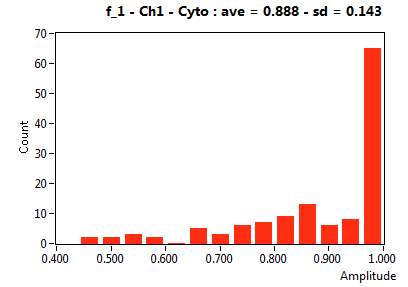

f_1 - Ch1 - Cyto : ave = 0.888 - sd = 0.143D_1 [mum^2/s] - Ch1 - Cyto : ave = 9.526 - sd = 16.855r = -0.310 - r^2 = 0.096

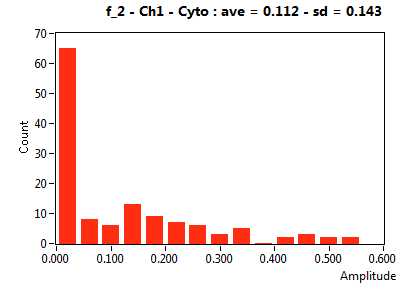

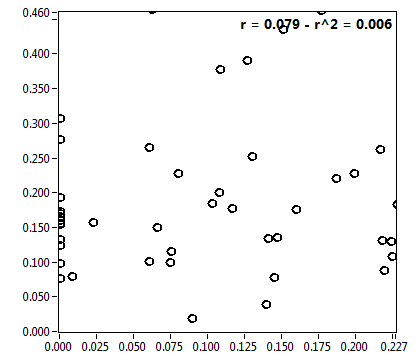

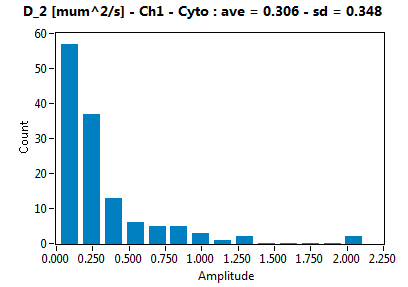

f_2 - Ch1 - Cyto : ave = 0.112 - sd = 0.143D_2 [mum^2/s] - Ch1 - Cyto : ave = 0.306 - sd = 0.348r = 0.079 - r^2 = 0.006

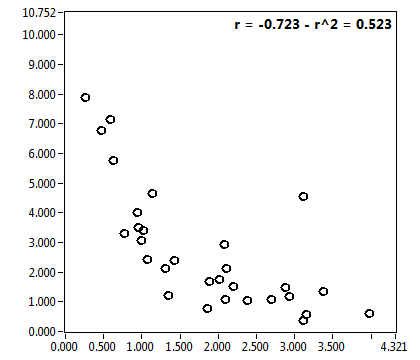

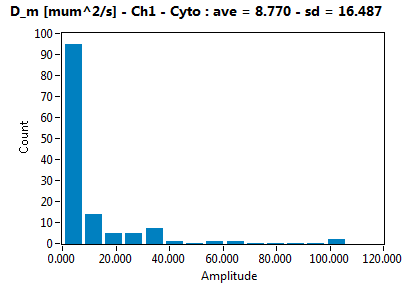

CPM_corr [kHz] - Ch1 - Cyto : ave = 2.919 - sd = 3.523D_m [mum^2/s] - Ch1 - Cyto : ave = 8.770 - sd = 16.487r = -0.723 - r^2 = 0.523
