Automated F(C)CS analysis of clone # H2Ahi

Created on 12/08/2014
Back to overview

Gene and protein information

Clone # H2Ahi
Gene symbol: HIST3H2A
Description: histone cluster 3, H2A
Molecular weight (with FP): 41.1 kDa
Localisation: granular nucleus, dim nucleoli, no speckles, no cytoplasm

Image and FCS data

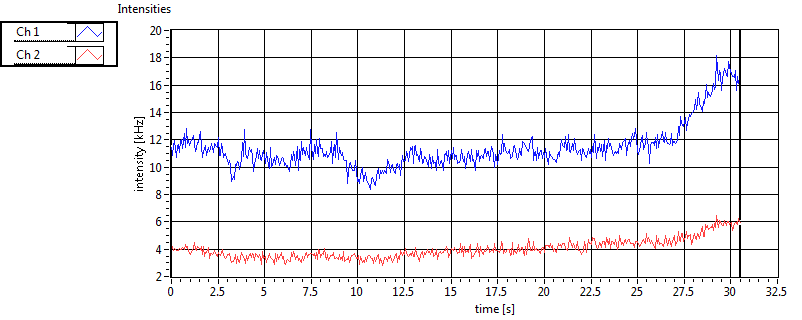

Images Ch1 (EYFP construct), Ch2 (H2B-mCherry) with measurement points

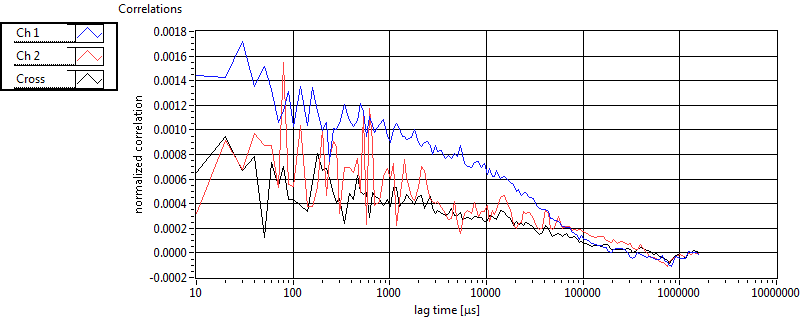

Point 1, intensity traces and correlation functions

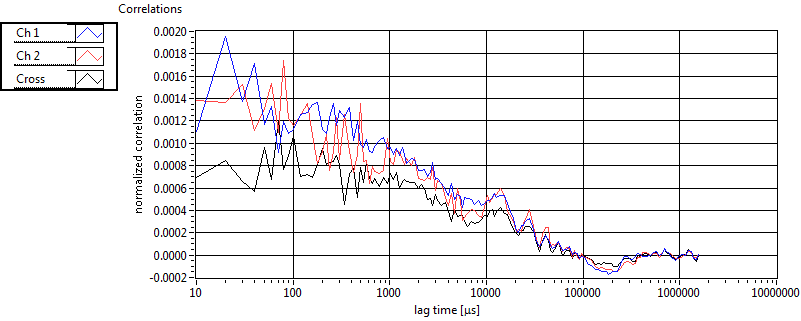

Point 2, intensity traces and correlation functions

Point 3, intensity traces and correlation functions

Point 4, intensity traces and correlation functions

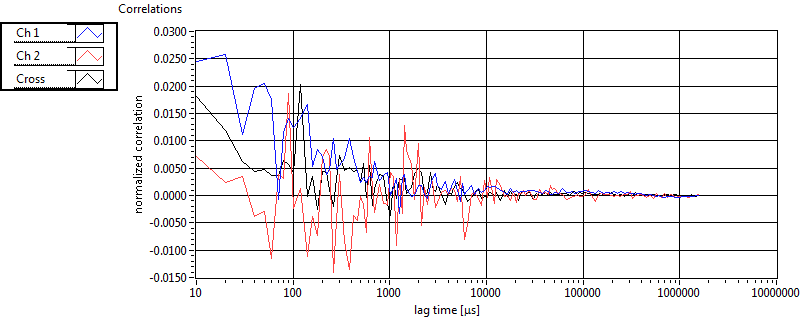

Point 5, intensity traces and correlation functions

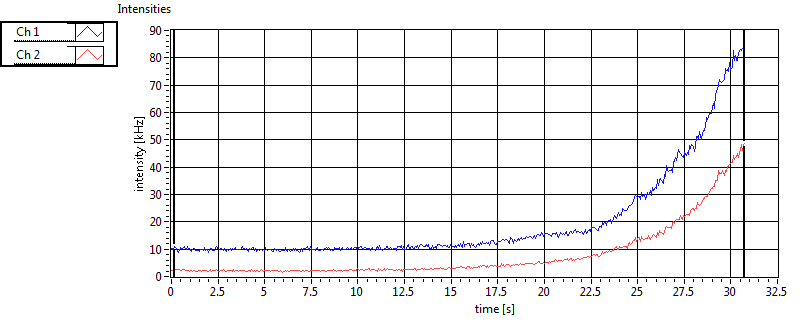

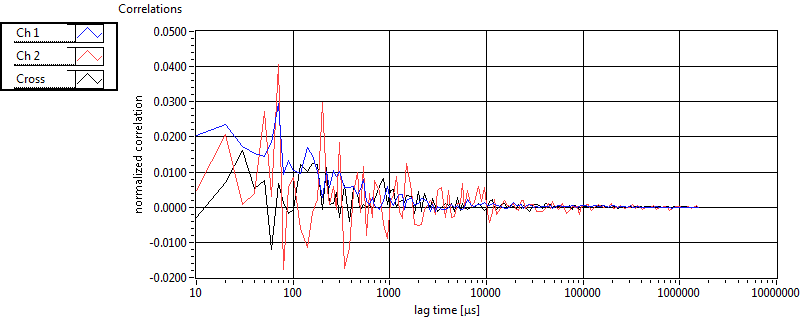

Point 6, intensity traces and correlation functions

Sessions

1 20130109\U03--V00--H2Ahi
2 20130110\U01--V00--H2Ahi

Results table

Ch1 ave
Nuc		 Ch1 sd
Nuc		 Ch2 ave
Nuc		 Ch2 sd
Nuc		 Cross ave
Nuc		 Cross sd
Nuc		 Ch1 ave
Cyto		 Ch1 sd
Cyto		 Ch2 ave
Cyto		 Ch2 sd
Cyto		 Cross ave
Cyto		 Cross sd
Cyto
N 3.523E+2 2.039E+2 6.570E+2 2.915E+2 1.329E+2 1.118E+2 3.118E+1 4.102E+1 5.156E+2 3.491E+2 3.232E+1 3.579E+1
N_corr 5.564E+2 3.171E+2 8.795E+2 4.145E+2 4.066E+2 3.736E+2 3.745E+1 8.646E+1 8.958E+2 5.645E+2 1.876E+2 2.177E+2
c [nM] 2.191E+3 1.268E+3 3.048E+3 1.352E+3 6.833E+2 5.748E+2 1.939E+2 2.551E+2 2.391E+3 1.619E+3 1.661E+2 1.840E+2
c_corr [nM] 3.461E+3 1.972E+3 4.080E+3 1.923E+3 2.091E+3 1.921E+3 2.329E+2 5.377E+2 4.155E+3 2.619E+3 9.645E+2 1.119E+3
ratioG 3.379E-1 1.520E-1 1.799E-1 7.139E-2
ratioG_corr 4.424E-1 2.624E-1 3.314E-1 1.723E-1
f_1 7.625E-1 1.473E-1 4.274E-1 2.756E-1 7.728E-1 2.220E-1 9.527E-1 5.321E-2 6.321E-1 3.273E-1 8.987E-1 1.266E-1
tauD_1 [ms] 2.805E+0 3.435E+0 1.860E+0 4.441E-16 3.618E+0 5.031E+0 3.554E-1 3.848E-1 1.860E+0 2.220E-16 2.716E+0 9.729E-1
D_1 [mum^2/s] 7.195E+0 6.004E+0 6.926E+0 8.882E-16 7.056E+0 1.264E+1 4.437E+1 2.208E+1 6.926E+0 8.882E-16 4.904E+0 1.405E+0
alpha_1 9.492E-1 1.632E-1 9.200E-1 0.000E+0 9.145E-1 2.359E-1 1.057E+0 1.527E-1 9.200E-1 1.110E-16 9.504E-1 2.020E-1
f_2 2.375E-1 1.473E-1 5.726E-1 2.756E-1 2.272E-1 2.220E-1 4.726E-2 5.321E-2 3.679E-1 3.273E-1 1.013E-1 1.266E-1
tauD_2 [ms] 5.921E+1 6.541E+1 7.374E+1 8.712E+1 1.235E+2 1.955E+2 1.744E+1 1.951E+1 9.717E+1 7.748E+1 6.771E+1 1.790E+1
D_2 [mum^2/s] 2.841E-1 2.073E-1 7.266E-1 9.530E-1 1.704E-1 9.168E-2 1.079E+0 6.468E-1 3.004E-1 2.913E-1 1.907E-1 5.328E-2
alpha_2 1.528E+0 3.619E-1 1.401E+0 4.317E-1 1.397E+0 4.029E-1 1.121E+0 1.349E-1 1.201E+0 2.899E-1 1.326E+0 3.898E-1
tauD_m [ms] 1.628E+1 1.949E+1 3.644E+1 4.991E+1 3.381E+1 5.252E+1 1.611E+0 3.196E+0 2.649E+1 2.107E+1 1.125E+1 1.253E+1
D_m [mum^2/s] 5.515E+0 5.065E+0 3.516E+0 1.510E+0 5.798E+0 1.240E+1 4.279E+1 2.197E+1 4.524E+0 2.115E+0 4.569E+0 1.639E+0
R [1/s] 5.759E+0 9.541E+0 1.896E+1 2.068E+1
CPM [kHz] 4.880E-1 1.903E-1 3.685E-1 2.618E-1 3.236E-1 1.161E-1 5.035E-1 3.563E-1
CPM_corr [kHz] 4.963E-1 1.913E-1 4.337E-1 2.932E-1 5.014E-1 2.205E-1 5.652E-1 4.193E-1
Int [kHz] 1.509E+2 9.377E+1 1.460E+2 3.297E+1 1.084E+1 1.424E+1 1.020E+2 3.600E+1
Int_corr [kHz] 2.367E+2 1.320E+2 2.339E+2 6.754E+1 1.508E+1 2.975E+1 2.038E+2 9.943E+1
# samples 137 137 118 118 101 101 95 95 9 9 4 4
# cells 74

Histograms

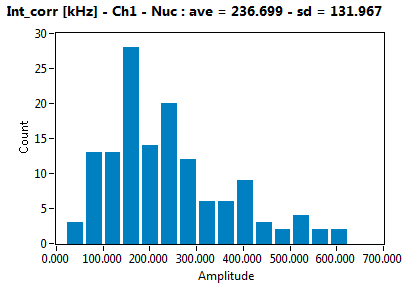

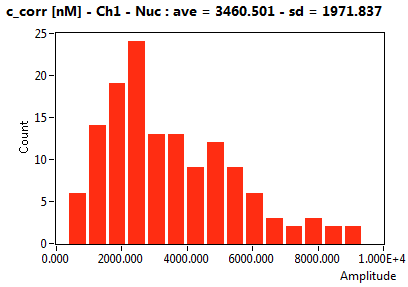

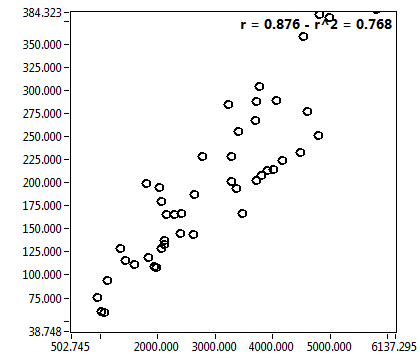

c_corr [nM] - Ch1 - Nuc : ave = 3460.501 - sd = 1971.837Int_corr [kHz] - Ch1 - Nuc : ave = 236.699 - sd = 131.967r = 0.876 - r^2 = 0.768

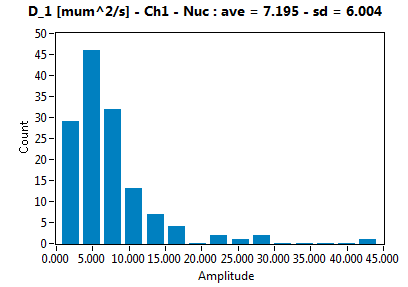

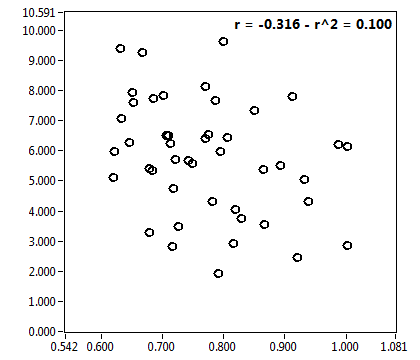

f_1 - Ch1 - Nuc : ave = 0.762 - sd = 0.147D_1 [mum^2/s] - Ch1 - Nuc : ave = 7.195 - sd = 6.004r = -0.316 - r^2 = 0.100

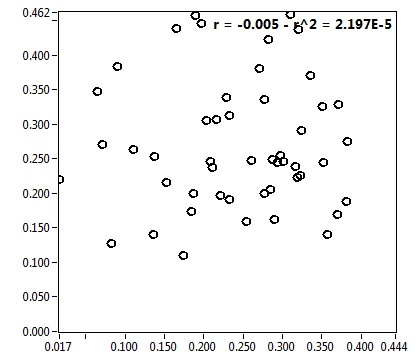

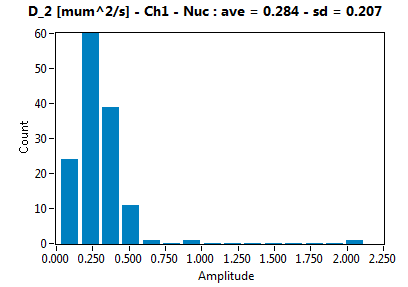

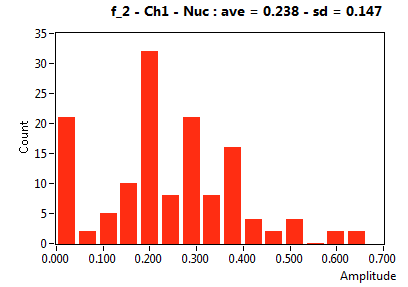

f_2 - Ch1 - Nuc : ave = 0.238 - sd = 0.147D_2 [mum^2/s] - Ch1 - Nuc : ave = 0.284 - sd = 0.207r = -0.005 - r^2 = 2.197E-5

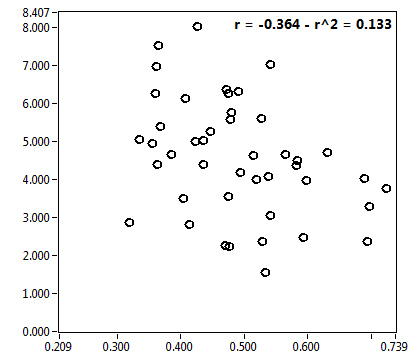

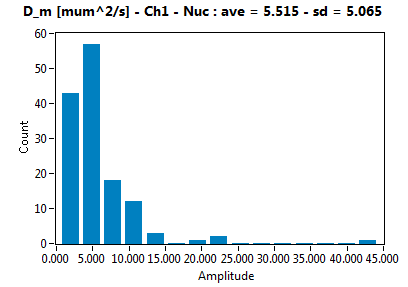

CPM_corr [kHz] - Ch1 - Nuc : ave = 0.496 - sd = 0.191D_m [mum^2/s] - Ch1 - Nuc : ave = 5.515 - sd = 5.065r = -0.364 - r^2 = 0.133

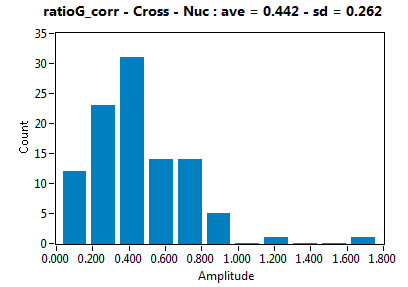

c_corr [nM] - Ch1 - Nuc : ave = 3460.501 - sd = 1971.837ratioG_corr - Cross - Nuc : ave = 0.442 - sd = 0.262r = 0.630 - r^2 = 0.396

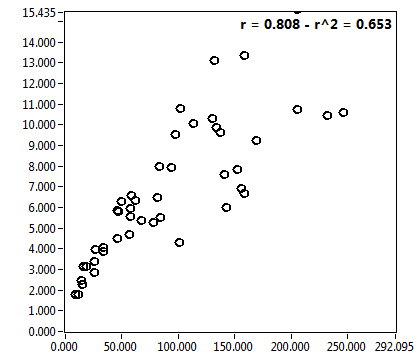

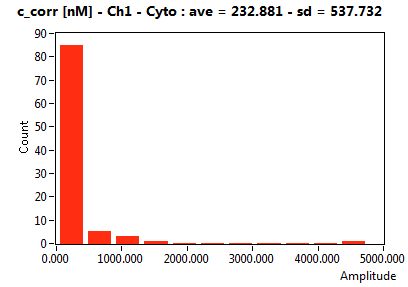

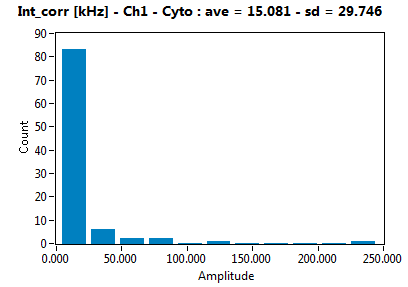

c_corr [nM] - Ch1 - Cyto : ave = 232.881 - sd = 537.732Int_corr [kHz] - Ch1 - Cyto : ave = 15.081 - sd = 29.746r = 0.808 - r^2 = 0.653

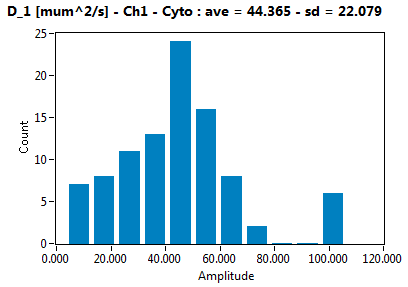

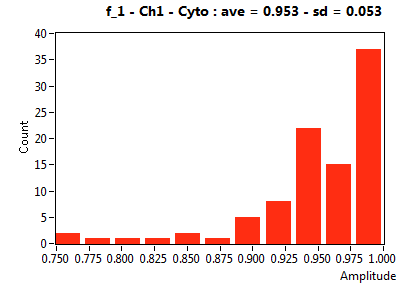

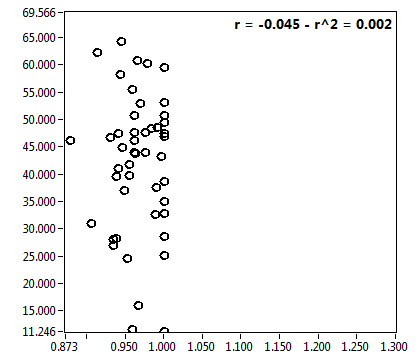

f_1 - Ch1 - Cyto : ave = 0.953 - sd = 0.053D_1 [mum^2/s] - Ch1 - Cyto : ave = 44.365 - sd = 22.079r = -0.045 - r^2 = 0.002

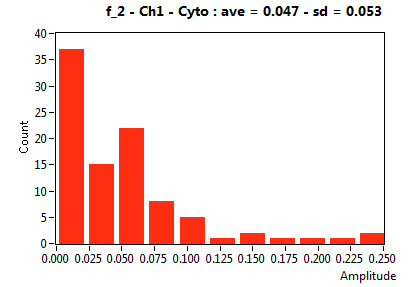

f_2 - Ch1 - Cyto : ave = 0.047 - sd = 0.053D_2 [mum^2/s] - Ch1 - Cyto : ave = 1.079 - sd = 0.647r = -0.058 - r^2 = 0.003

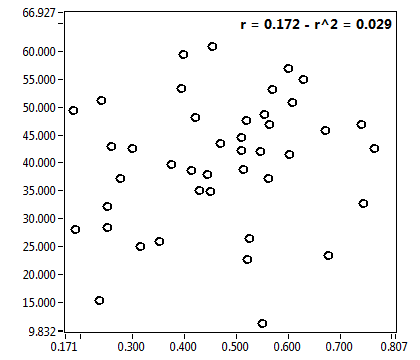

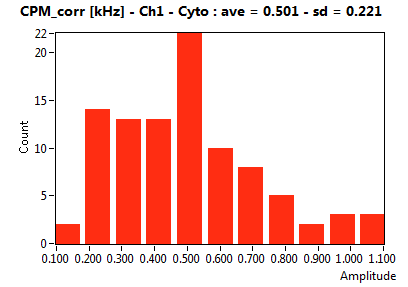

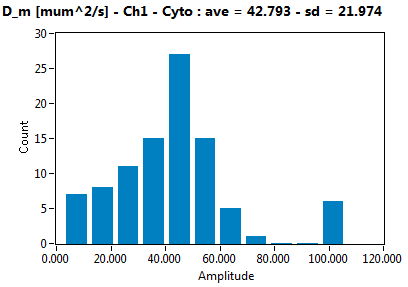

CPM_corr [kHz] - Ch1 - Cyto : ave = 0.501 - sd = 0.221D_m [mum^2/s] - Ch1 - Cyto : ave = 42.793 - sd = 21.974r = 0.172 - r^2 = 0.029
