Automated F(C)CS analysis of clone # EYFPN2

Created on 12/08/2014
Back to overview

Gene and protein information

Clone # EYFPN2
Gene symbol: EYFPN2
Description: enhanced yellow fluorescent protein N2
Molecular weight (with FP): 27.0 kDa
Localisation: homogeneous nucleus, ave. nucleoli, no speckles, no cytoplasm

Image and FCS data

Images Ch1 (EYFPN2 construct), Ch2 (H2B-mCherry) with measurement points

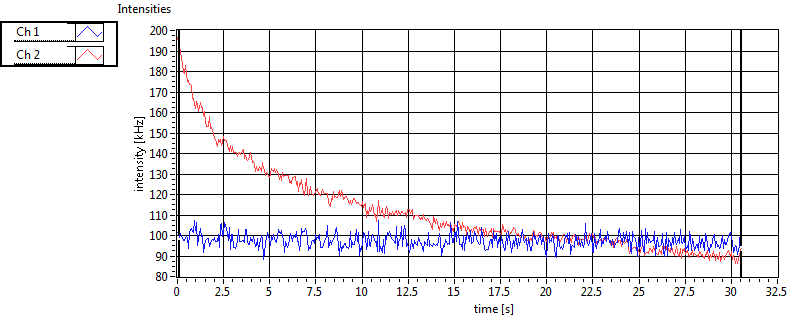

Point 1, intensity traces and correlation functions

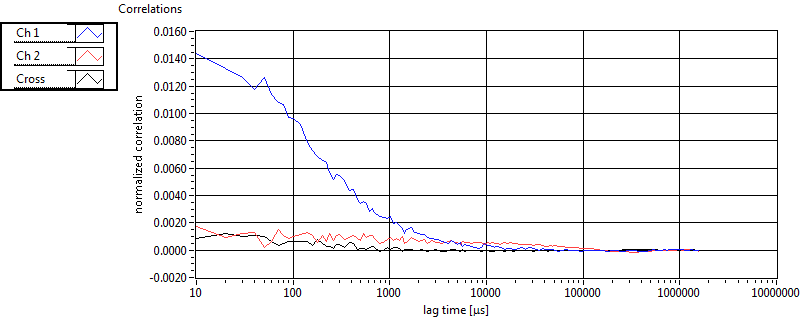

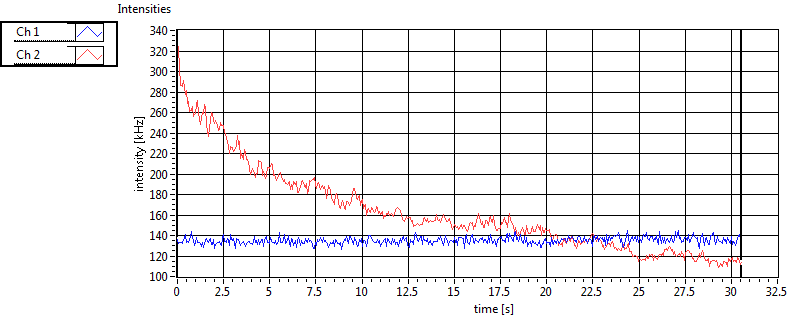

Point 2, intensity traces and correlation functions

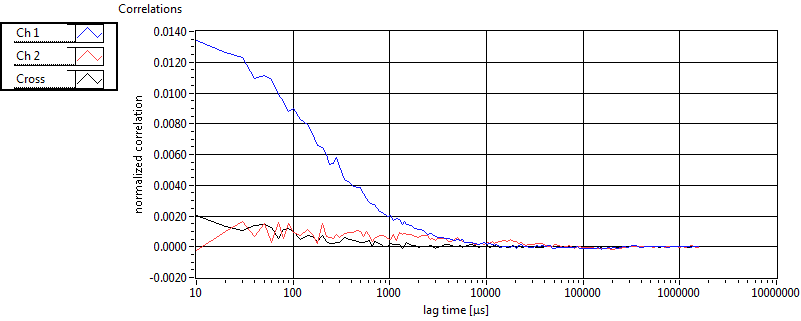

Point 3, intensity traces and correlation functions

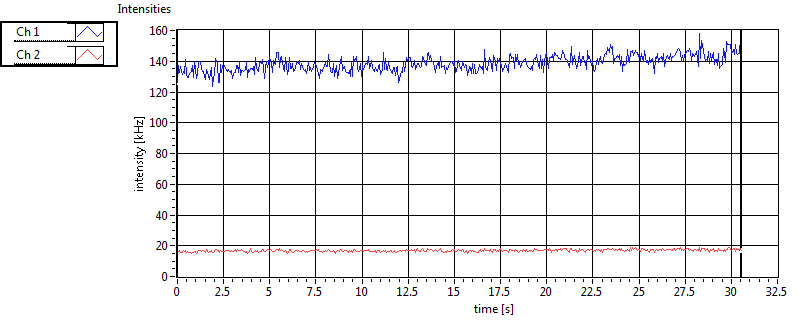

Point 4, intensity traces and correlation functions

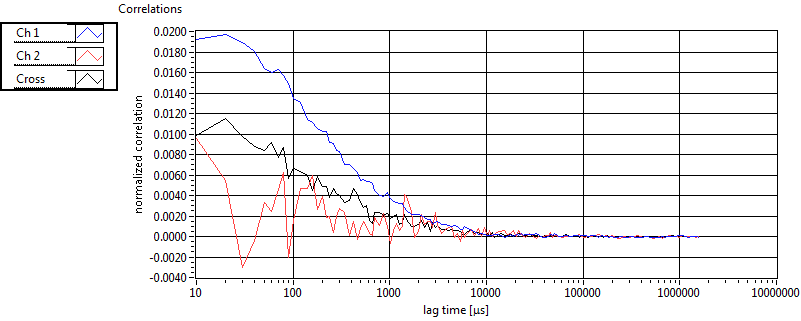

Point 5, intensity traces and correlation functions

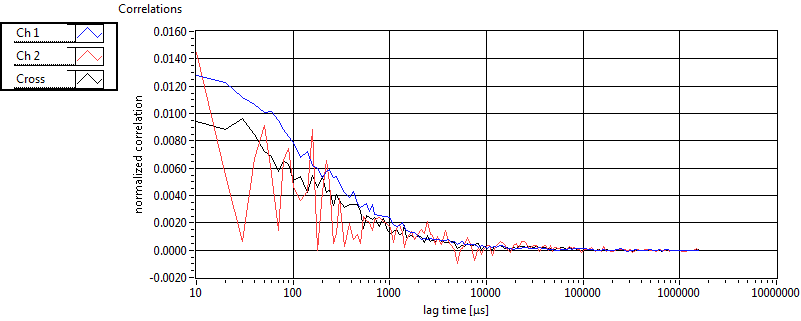

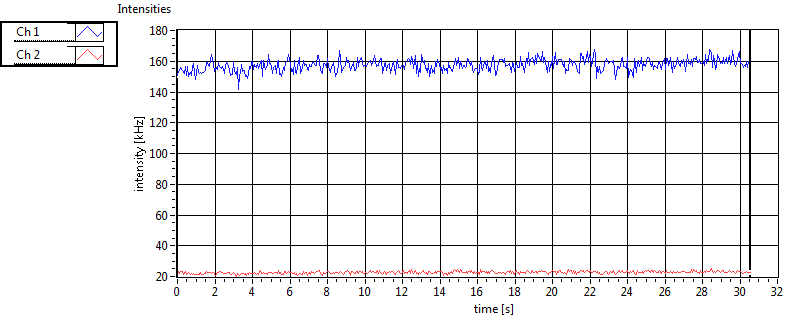

Point 6, intensity traces and correlation functions

Sessions

1 20120126\U03--V00--EYFPN2
2 20120127\U03--V00--EYFPN2
3 20120131\U03--V00--EYFPN2
4 20120201\U03--V00--EYFPN2
5 20120202\U03--V00--EYFPN2
6 20120203\U03--V00--EYFPN2
7 20120207\U03--V00--EYFPN2
8 20120214\U03--V00--EYFPN2
9 20120215\U03--V00--EYFPN2
10 20120217\U03--V00--EYFPN2
11 20120221\U03--V00--EYFPN2
12 20120223\U03--V00--EYFPN2
13 20120228\U03--V00--EYFPN2
14 20120229\U03--V00--EYFPN2
15 20120306\U03--V00--EYFPN2
16 20120307\U03--V00--EYFPN2
17 20120308\U03--V00--EYFPN2
18 20120309\U03--V00--EYFPN2
19 20120315\U03--V00--EYFPN2
20 20120316\U02--V00--EYFPN2
21 20120322\U03--V00--EYFPN2

Results table

Ch1 ave
Nuc		 Ch1 sd
Nuc		 Ch2 ave
Nuc		 Ch2 sd
Nuc		 Cross ave
Nuc		 Cross sd
Nuc		 Ch1 ave
Cyto		 Ch1 sd
Cyto		 Ch2 ave
Cyto		 Ch2 sd
Cyto		 Cross ave
Cyto		 Cross sd
Cyto
N 6.290E+1 2.876E+1 1.033E+3 5.309E+2 5.467E+0 5.655E+0 5.600E+1 5.573E+1 1.463E+2 1.333E+2 3.010E+1 1.972E+1
N_corr 6.322E+1 2.937E+1 1.573E+3 9.606E+2 5.615E+0 5.872E+0 5.889E+1 5.772E+1 9.789E+1 2.341E+2 3.344E+1 2.198E+1
c [nM] 3.912E+2 1.789E+2 4.791E+3 2.463E+3 2.811E+1 2.907E+1 3.483E+2 3.466E+2 6.786E+2 6.185E+2 1.548E+2 1.014E+2
c_corr [nM] 3.932E+2 1.827E+2 7.295E+3 4.456E+3 2.886E+1 3.019E+1 3.662E+2 3.590E+2 4.541E+2 1.086E+3 1.719E+2 1.130E+2
ratioG 7.288E-2 4.259E-2 5.660E-1 2.105E-1
ratioG_corr 6.209E-3 2.313E-2 9.028E-2 8.767E-2
f_1 9.833E-1 4.680E-2 4.868E-1 2.617E-1 9.945E-1 2.492E-2 9.619E-1 1.014E-1 9.029E-1 2.090E-1 9.607E-1 4.773E-2
tauD_1 [ms] 3.770E-1 7.425E-2 1.860E+0 4.441E-16 2.697E-1 2.438E-1 4.487E-1 2.858E-1 1.860E+0 2.220E-16 2.245E-1 2.213E-1
D_1 [mum^2/s] 2.916E+1 5.848E+0 6.926E+0 5.329E-15 9.091E+1 2.289E+2 2.751E+1 8.475E+0 6.926E+0 8.882E-16 7.489E+1 5.663E+1
alpha_1 1.074E+0 1.003E-1 9.200E-1 1.110E-15 1.094E+0 2.322E-1 1.021E+0 1.247E-1 9.200E-1 3.331E-16 1.016E+0 1.996E-1
f_2 1.667E-2 4.680E-2 5.132E-1 2.617E-1 5.494E-3 2.492E-2 3.808E-2 1.014E-1 9.707E-2 2.090E-1 3.929E-2 4.773E-2
tauD_2 [ms] 9.404E+0 1.318E+1 7.621E+1 9.389E+1 3.252E+1 2.233E+1 1.668E+1 2.801E+1 2.705E+1 5.947E+1 1.264E+1 1.027E+1
D_2 [mum^2/s] 3.102E+0 3.912E+0 7.466E-1 9.940E-1 6.547E-1 1.383E+0 2.180E+0 4.206E+0 2.201E+0 3.898E+0 1.417E+0 1.281E+0
alpha_2 1.055E+0 9.796E-2 1.297E+0 3.351E-1 1.069E+0 6.428E-2 1.030E+0 1.723E-1 1.083E+0 1.358E-1 1.082E+0 4.784E-2
tauD_m [ms] 4.563E-1 2.055E-1 3.705E+1 5.224E+1 3.964E-1 9.184E-1 1.104E+0 2.461E+0 4.338E+0 1.582E+1 5.889E-1 5.995E-1
D_m [mum^2/s] 2.875E+1 5.764E+0 3.867E+0 1.475E+0 9.047E+1 2.288E+2 2.626E+1 7.130E+0 7.015E+0 1.317E+0 7.202E+1 5.643E+1
R [1/s] 3.553E+2 5.720E+2 2.528E+2 6.739E+2
CPM [kHz] 1.662E+0 1.699E-1 3.647E-1 3.263E-1 1.631E+0 5.687E-1 1.784E-1 1.195E-1
CPM_corr [kHz] 1.693E+0 1.724E-1 4.087E-1 3.625E-1 1.674E+0 5.655E-1 7.169E-1 3.736E-1
Int [kHz] 1.255E+2 5.353E+1 1.875E+2 6.896E+1 9.899E+1 5.959E+1 2.954E+1 3.329E+1
Int_corr [kHz] 1.281E+2 5.461E+1 3.138E+2 1.376E+2 1.050E+2 6.173E+1 3.834E+1 5.909E+1
# samples 627 627 482 482 447 447 433 433 189 189 171 171
# cells 236

Histograms

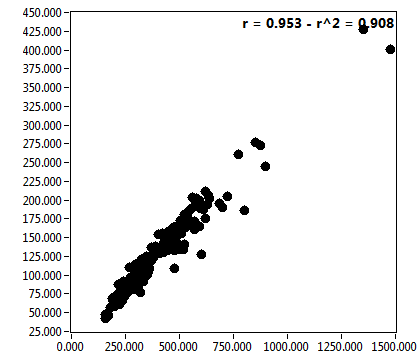

c_corr [nM] - Ch1 - Nuc : ave = 393.181 - sd = 182.678Int_corr [kHz] - Ch1 - Nuc : ave = 128.080 - sd = 54.608r = 0.953 - r^2 = 0.908

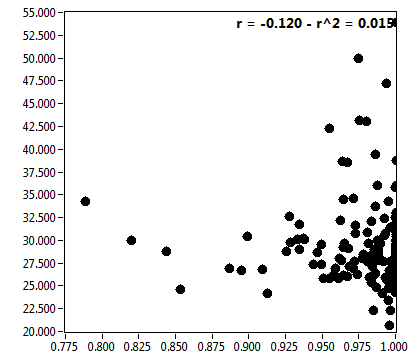

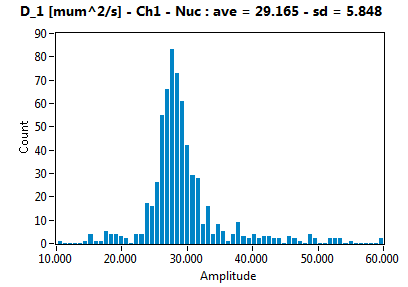

f_1 - Ch1 - Nuc : ave = 0.983 - sd = 0.047D_1 [mum^2/s] - Ch1 - Nuc : ave = 29.165 - sd = 5.848r = -0.120 - r^2 = 0.015

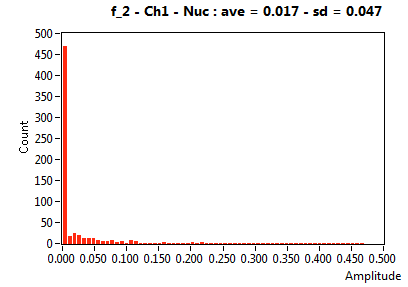

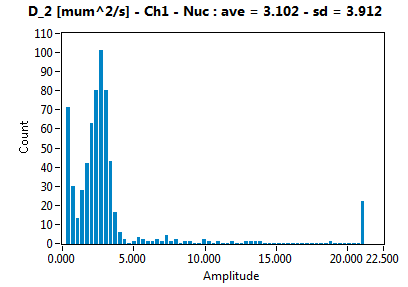

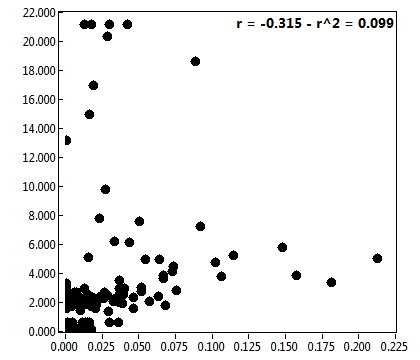

f_2 - Ch1 - Nuc : ave = 0.017 - sd = 0.047D_2 [mum^2/s] - Ch1 - Nuc : ave = 3.102 - sd = 3.912r = -0.315 - r^2 = 0.099

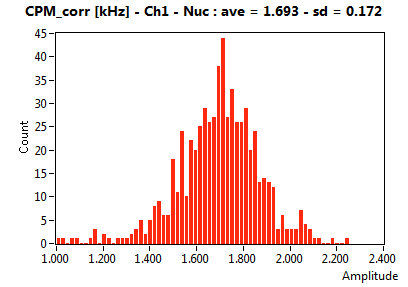

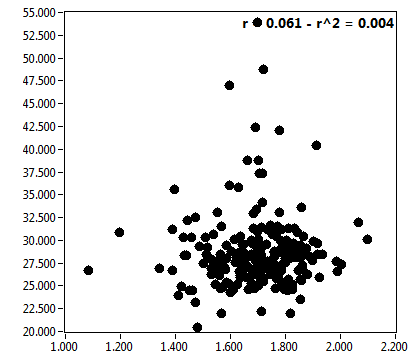

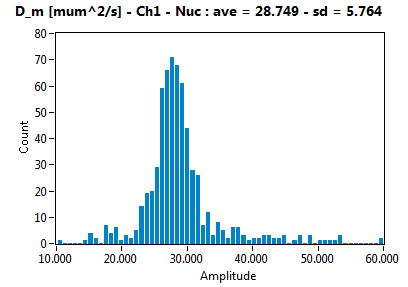

CPM_corr [kHz] - Ch1 - Nuc : ave = 1.693 - sd = 0.172D_m [mum^2/s] - Ch1 - Nuc : ave = 28.749 - sd = 5.764r = 0.061 - r^2 = 0.004

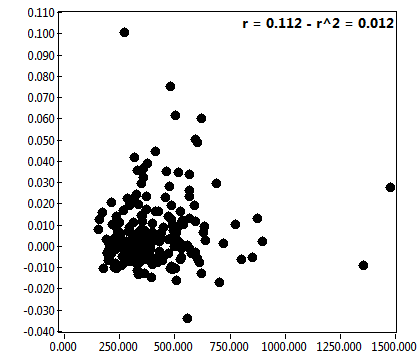

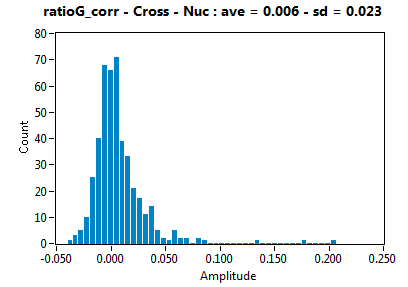

c_corr [nM] - Ch1 - Nuc : ave = 393.181 - sd = 182.678ratioG_corr - Cross - Nuc : ave = 0.006 - sd = 0.023r = 0.112 - r^2 = 0.012
c_corr [nM] - Ch1 - Cyto : ave = 366.228 - sd = 359.003Int_corr [kHz] - Ch1 - Cyto : ave = 104.978 - sd = 61.728r = 0.627 - r^2 = 0.394

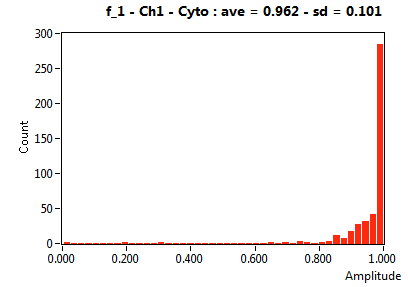

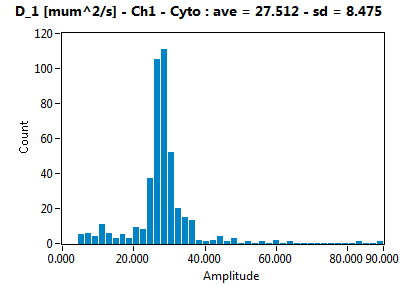

f_1 - Ch1 - Cyto : ave = 0.962 - sd = 0.101D_1 [mum^2/s] - Ch1 - Cyto : ave = 27.512 - sd = 8.475r = -0.162 - r^2 = 0.026

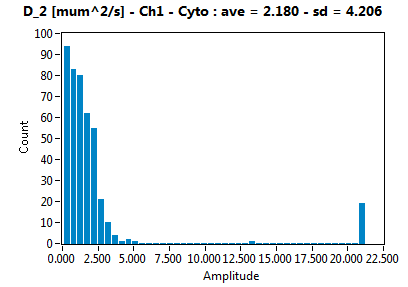

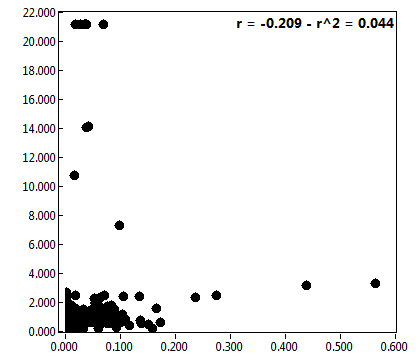

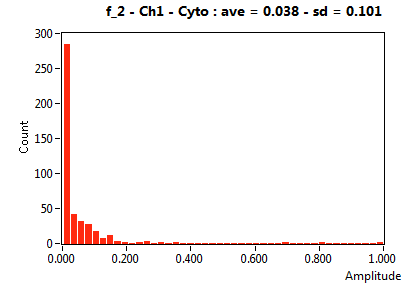

f_2 - Ch1 - Cyto : ave = 0.038 - sd = 0.101D_2 [mum^2/s] - Ch1 - Cyto : ave = 2.180 - sd = 4.206r = -0.209 - r^2 = 0.044

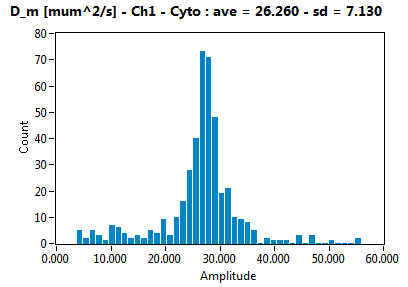

CPM_corr [kHz] - Ch1 - Cyto : ave = 1.674 - sd = 0.566D_m [mum^2/s] - Ch1 - Cyto : ave = 26.260 - sd = 7.130r = 0.286 - r^2 = 0.082
