Automated F(C)CS analysis of clone # EYFPC1hi

Created on 12/08/2014
Back to overview

Gene and protein information

Clone # EYFPC1hi
Gene symbol: EYFPC1
Description: enhanced yellow fluorescent protein C1
Molecular weight (with FP): 27.0 kDa
Localisation: homogeneous nucleus, ave. nucleoli, no speckles, no cytoplasm

Image and FCS data

Images Ch1 (EYFP construct), Ch2 (H2B-mCherry) with measurement points


Point 1, intensity traces and correlation functions

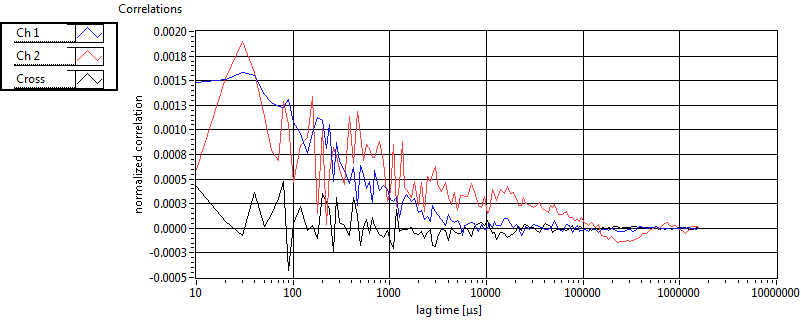

Point 2, intensity traces and correlation functions

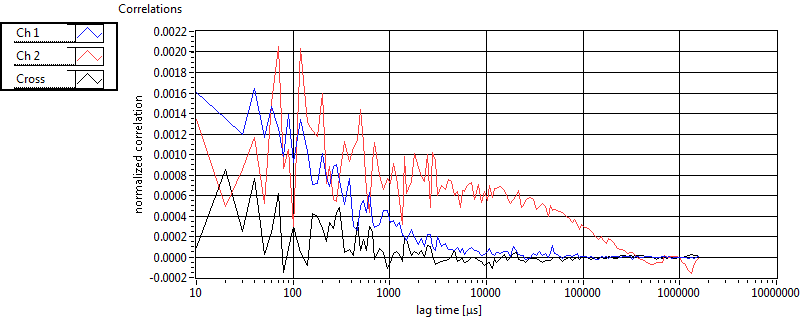

Point 3, intensity traces and correlation functions

Point 4, intensity traces and correlation functions

Point 5, intensity traces and correlation functions

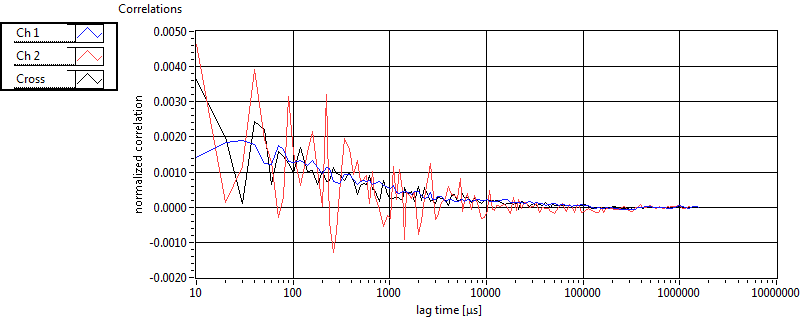

Point 6, intensity traces and correlation functions

Sessions

1 20130109\U00--V00--EYFPC1hi
2 20130110\U00--V00--EYFPC1hi

Results table

Ch1 ave
Nuc		 Ch1 sd
Nuc		 Ch2 ave
Nuc		 Ch2 sd
Nuc		 Cross ave
Nuc		 Cross sd
Nuc		 Ch1 ave
Cyto		 Ch1 sd
Cyto		 Ch2 ave
Cyto		 Ch2 sd
Cyto		 Cross ave
Cyto		 Cross sd
Cyto
N 1.400E+3 8.668E+2 1.406E+3 6.133E+2 6.054E+2 4.552E+2 1.058E+3 6.928E+2 1.020E+3 7.235E+2 7.683E+2 2.449E+2
N_corr 1.432E+3 8.846E+2 1.206E+3 5.026E+2 6.208E+2 4.641E+2 1.075E+3 6.843E+2 9.026E+2 6.501E+2 8.158E+2 2.692E+2
c [nM] 8.709E+3 5.391E+3 6.523E+3 2.845E+3 3.112E+3 2.340E+3 6.580E+3 4.309E+3 4.733E+3 3.356E+3 3.950E+3 1.259E+3
c_corr [nM] 8.906E+3 5.502E+3 5.596E+3 2.331E+3 3.192E+3 2.386E+3 6.683E+3 4.256E+3 4.186E+3 3.015E+3 4.194E+3 1.384E+3
ratioG 3.794E-1 1.560E-1 4.915E-1 1.536E-2
ratioG_corr 9.983E-2 1.090E-1 2.061E-1 1.865E-3
f_1 9.352E-1 4.225E-2 5.324E-1 2.127E-1 9.958E-1 1.347E-2 8.582E-1 8.419E-2 5.064E-1 3.100E-1 1.000E+0 0.000E+0
tauD_1 [ms] 3.783E-1 2.065E-1 1.860E+0 2.220E-16 2.440E-1 2.175E-1 6.441E-1 9.558E-1 1.860E+0 2.220E-16 1.130E-1 1.303E-2
D_1 [mum^2/s] 3.459E+1 1.458E+1 6.926E+0 8.882E-16 7.497E+1 3.743E+1 2.609E+1 1.522E+1 6.926E+0 8.882E-16 1.075E+2 1.239E+1
alpha_1 1.125E+0 9.852E-2 9.200E-1 1.110E-16 1.127E+0 1.251E-1 1.121E+0 1.059E-1 9.200E-1 0.000E+0 9.752E-1 2.248E-1
f_2 6.478E-2 4.225E-2 4.676E-1 2.127E-1 4.216E-3 1.347E-2 1.418E-1 8.419E-2 4.936E-1 3.100E-1 0.000E+0 0.000E+0
tauD_2 [ms] 1.482E+1 1.892E+1 6.162E+1 6.334E+1 4.321E+1 4.396E+1 4.335E+1 7.289E+1 3.086E+1 2.435E+1 2.666E+1 6.303E+0
D_2 [mum^2/s] 1.132E+0 5.300E-1 4.768E-1 5.516E-1 4.103E-1 2.145E-1 5.855E-1 3.742E-1 9.945E-1 1.118E+0 4.764E-1 1.127E-1
alpha_2 1.109E+0 9.755E-2 1.376E+0 3.602E-1 1.104E+0 1.209E-1 1.132E+0 2.580E-1 1.312E+0 3.454E-1 1.081E+0 2.300E-3
tauD_m [ms] 1.509E+0 2.286E+0 3.058E+1 3.678E+1 7.967E-1 2.191E+0 9.551E+0 2.264E+1 1.436E+1 9.513E+0 1.130E-1 1.303E-2
D_m [mum^2/s] 3.254E+1 1.421E+1 3.927E+0 1.343E+0 7.477E+1 3.756E+1 2.298E+1 1.510E+1 3.943E+0 2.015E+0 1.075E+2 1.239E+1
R [1/s] 1.079E+2 6.256E+1 1.104E+2 3.298E+0
CPM [kHz] 4.128E-1 1.479E-1 2.070E-1 1.179E-1 5.333E-1 2.317E-1 1.713E-1 7.113E-2
CPM_corr [kHz] 4.150E-1 1.482E-1 3.214E-1 1.825E-1 5.389E-1 2.344E-1 5.577E-1 4.603E-1
Int [kHz] 5.938E+2 3.153E+2 1.936E+2 4.887E+1 5.197E+2 3.273E+2 1.567E+2 1.053E+2
Int_corr [kHz] 6.096E+2 3.236E+2 2.629E+2 6.235E+1 5.274E+2 3.204E+2 2.223E+2 1.545E+2
# samples 149 149 89 89 38 38 59 59 8 8 2 2
# cells 88

Histograms

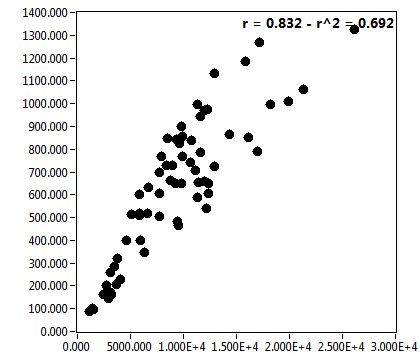

c_corr [nM] - Ch1 - Nuc : ave = 8905.641 - sd = 5501.840Int_corr [kHz] - Ch1 - Nuc : ave = 609.609 - sd = 323.562r = 0.832 - r^2 = 0.692

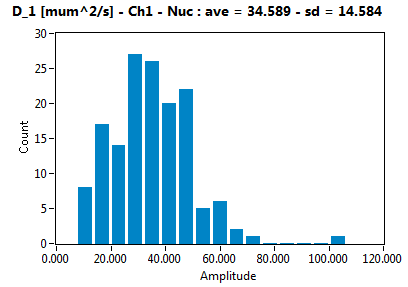

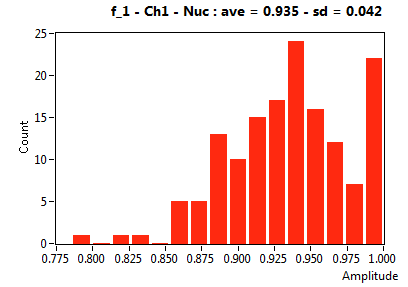

f_1 - Ch1 - Nuc : ave = 0.935 - sd = 0.042D_1 [mum^2/s] - Ch1 - Nuc : ave = 34.589 - sd = 14.584r = 0.007 - r^2 = 5.015E-5

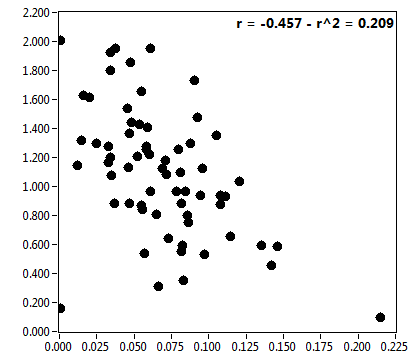

f_2 - Ch1 - Nuc : ave = 0.065 - sd = 0.042D_2 [mum^2/s] - Ch1 - Nuc : ave = 1.132 - sd = 0.530r = -0.457 - r^2 = 0.209

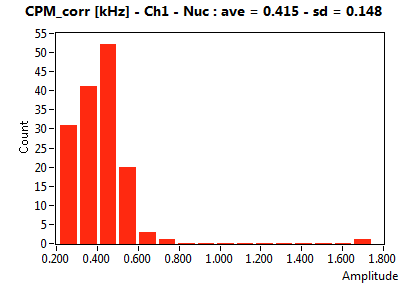

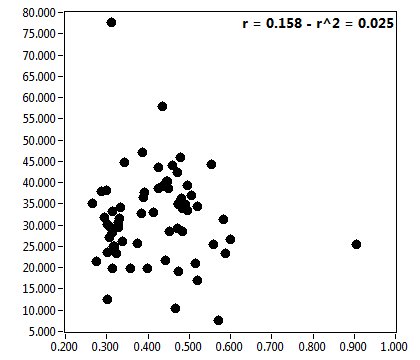

CPM_corr [kHz] - Ch1 - Nuc : ave = 0.415 - sd = 0.148D_m [mum^2/s] - Ch1 - Nuc : ave = 32.542 - sd = 14.206r = 0.158 - r^2 = 0.025

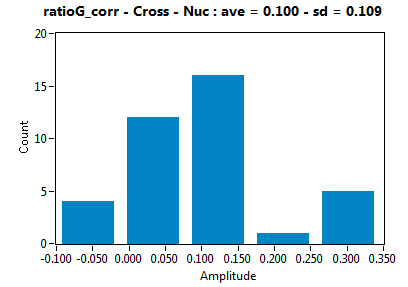

c_corr [nM] - Ch1 - Nuc : ave = 8905.641 - sd = 5501.840ratioG_corr - Cross - Nuc : ave = 0.100 - sd = 0.109r = 0.082 - r^2 = 0.007

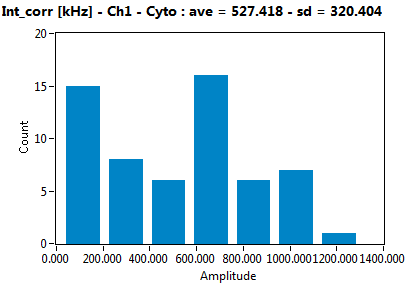

c_corr [nM] - Ch1 - Cyto : ave = 6682.877 - sd = 4255.798Int_corr [kHz] - Ch1 - Cyto : ave = 527.418 - sd = 320.404r = 0.919 - r^2 = 0.844

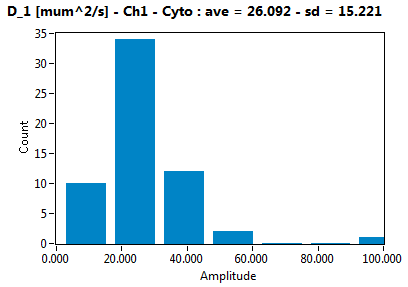

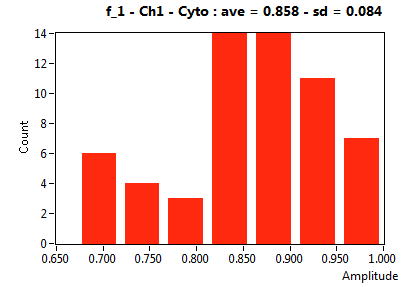

f_1 - Ch1 - Cyto : ave = 0.858 - sd = 0.084D_1 [mum^2/s] - Ch1 - Cyto : ave = 26.092 - sd = 15.221r = 0.347 - r^2 = 0.121

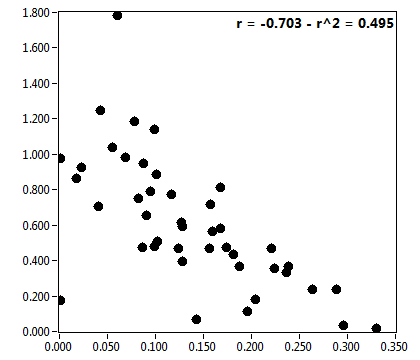

f_2 - Ch1 - Cyto : ave = 0.142 - sd = 0.084D_2 [mum^2/s] - Ch1 - Cyto : ave = 0.586 - sd = 0.374r = -0.703 - r^2 = 0.495

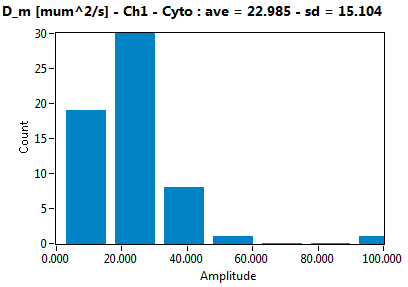

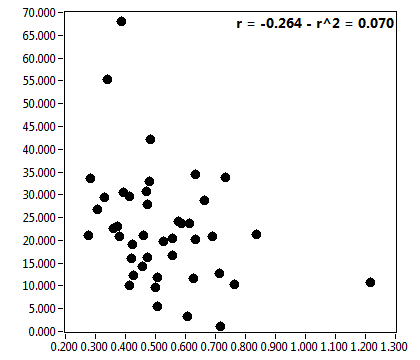

CPM_corr [kHz] - Ch1 - Cyto : ave = 0.539 - sd = 0.234D_m [mum^2/s] - Ch1 - Cyto : ave = 22.985 - sd = 15.104r = -0.264 - r^2 = 0.070
