Automated F(C)CS analysis of clone # DDIT3G06

Created on 12/08/2014
Back to overview

Gene and protein information

Clone # DDIT3G06
Gene symbol: DDIT3
Description: DNA-damage-inducible transcript 3
Molecular weight (with FP): 46.2 kDa
Localisation: homogeneous nucleus, dim nucleoli, no speckles, no cytoplasm

Image and FCS data

Images Ch1 (EYFP construct), Ch2 (H2B-mCherry) with measurement points

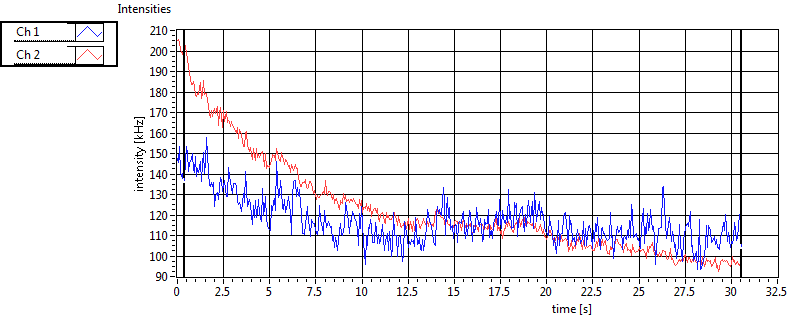

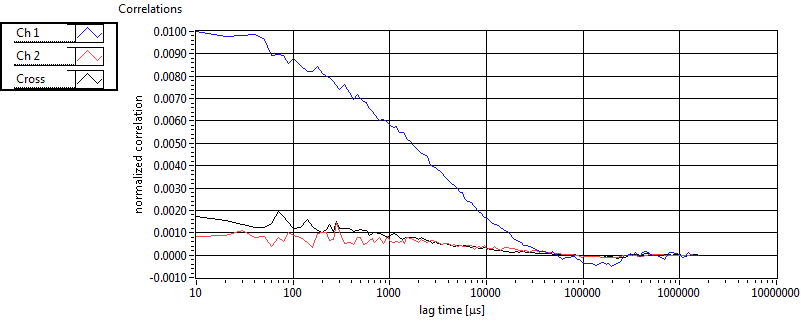

Point 1, intensity traces and correlation functions

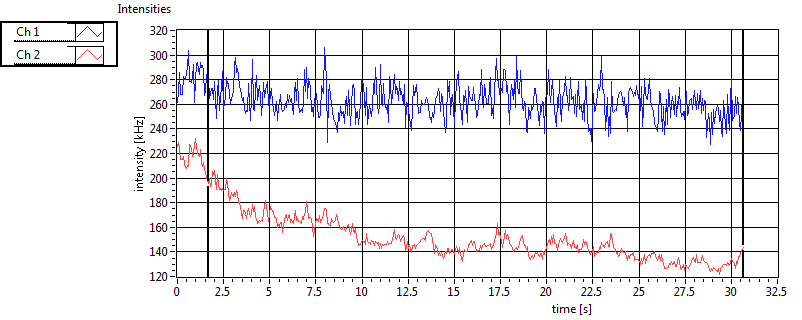

Point 2, intensity traces and correlation functions

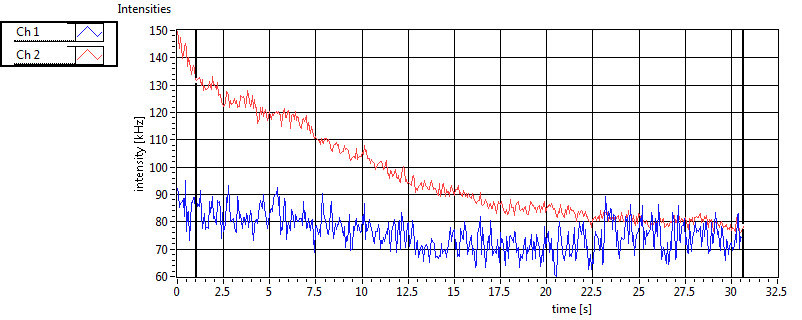

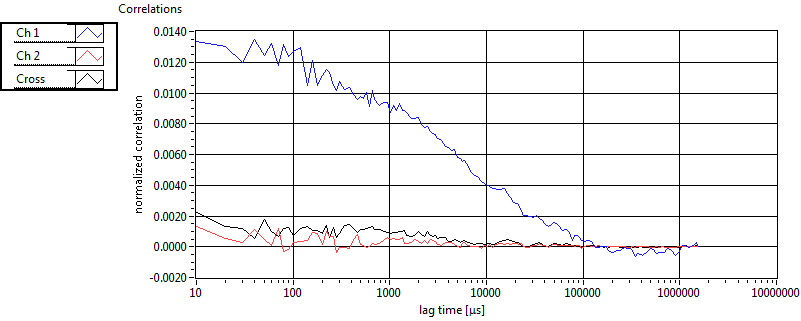

Point 3, intensity traces and correlation functions

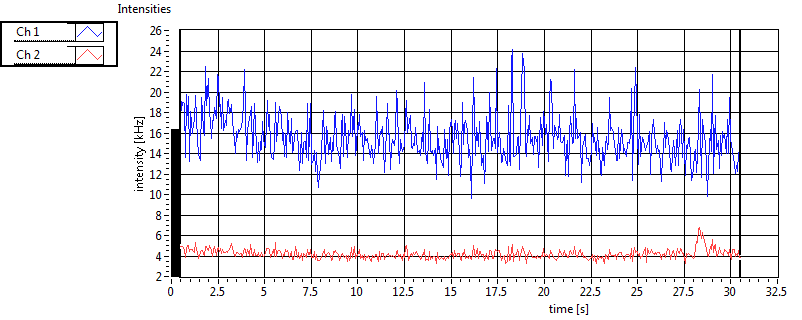

Point 4, intensity traces and correlation functions

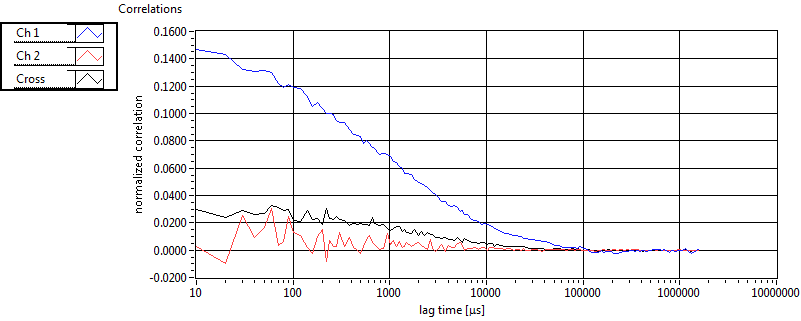

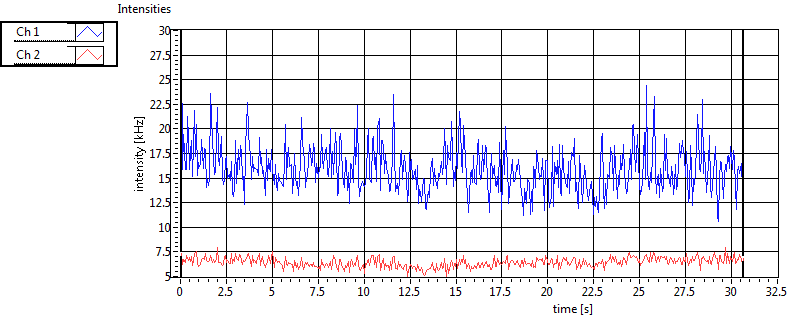

Point 5, intensity traces and correlation functions

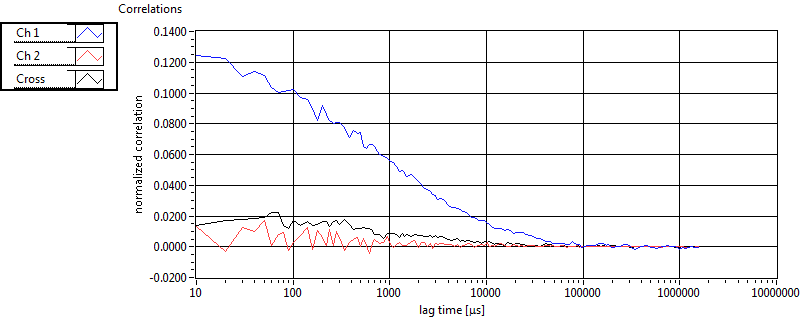

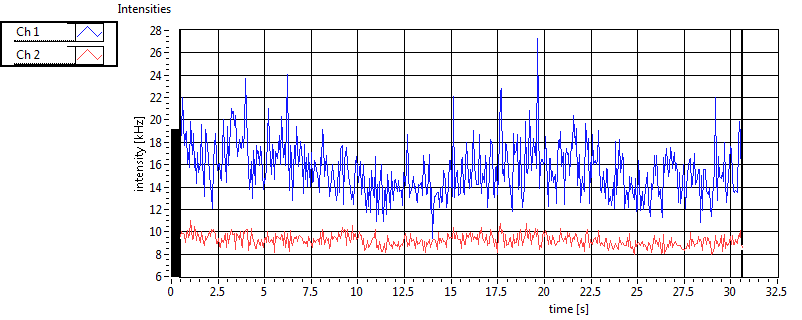

Point 6, intensity traces and correlation functions

Sessions

1 20120202\U02--V00--DDIT3G06
2 20120207\U02--V00--DDIT3G06

Results table

Ch1 ave
Nuc		 Ch1 sd
Nuc		 Ch2 ave
Nuc		 Ch2 sd
Nuc		 Cross ave
Nuc		 Cross sd
Nuc		 Ch1 ave
Cyto		 Ch1 sd
Cyto		 Ch2 ave
Cyto		 Ch2 sd
Cyto		 Cross ave
Cyto		 Cross sd
Cyto
N 7.951E+1 3.386E+1 9.112E+2 4.466E+2 1.209E+1 8.130E+0 2.158E+1 2.949E+1 1.443E+2 1.713E+2 7.152E+0 4.947E+0
N_corr 8.272E+1 3.624E+1 1.155E+3 6.619E+2 1.326E+1 9.194E+0 2.129E+1 3.030E+1 1.463E+2 2.516E+2 8.751E+0 5.960E+0
c [nM] 4.945E+2 2.106E+2 4.226E+3 2.071E+3 6.218E+1 4.180E+1 1.342E+2 1.834E+2 6.692E+2 7.945E+2 3.677E+1 2.543E+1
c_corr [nM] 5.144E+2 2.254E+2 5.356E+3 3.070E+3 6.818E+1 4.727E+1 1.324E+2 1.884E+2 6.786E+2 1.167E+3 4.499E+1 3.064E+1
ratioG 1.330E-1 5.130E-2 3.779E-1 1.787E-1
ratioG_corr 9.304E-3 2.590E-2 7.969E-2 5.454E-2
f_1 8.821E-1 1.015E-1 4.547E-1 1.913E-1 9.806E-1 4.553E-2 8.975E-1 6.566E-2 8.636E-1 2.263E-1 9.783E-1 4.276E-2
tauD_1 [ms] 2.720E+0 1.150E+0 1.860E+0 2.220E-16 1.763E+0 7.054E-1 1.230E+0 6.985E-1 1.860E+0 2.220E-16 8.009E-1 6.663E-1
D_1 [mum^2/s] 4.344E+0 1.305E+0 6.926E+0 0.000E+0 8.182E+0 4.194E+0 1.152E+1 9.637E+0 6.926E+0 0.000E+0 2.527E+1 1.737E+1
alpha_1 9.776E-1 8.236E-2 9.200E-1 2.220E-16 8.533E-1 1.794E-1 9.448E-1 1.031E-1 9.200E-1 1.110E-16 7.766E-1 1.708E-1
f_2 1.179E-1 1.015E-1 5.453E-1 1.913E-1 1.944E-2 4.553E-2 1.025E-1 6.566E-2 1.364E-1 2.263E-1 2.174E-2 4.276E-2
tauD_2 [ms] 3.071E+1 1.573E+1 8.482E+1 9.525E+1 5.464E+1 3.716E+1 2.468E+1 1.768E+1 4.708E+1 4.723E+1 3.004E+1 2.079E+1
D_2 [mum^2/s] 4.032E-1 1.389E-1 6.155E-1 9.642E-1 2.783E-1 1.092E-1 5.676E-1 2.657E-1 8.126E-1 1.529E+0 5.393E-1 2.767E-1
alpha_2 1.335E+0 2.643E-1 1.287E+0 3.324E-1 1.133E+0 2.170E-1 1.167E+0 1.713E-1 1.169E+0 2.988E-1 1.113E+0 1.475E-1
tauD_m [ms] 6.236E+0 4.287E+0 4.416E+1 5.419E+1 2.884E+0 3.560E+0 3.584E+0 3.085E+0 6.581E+0 9.091E+0 1.329E+0 1.399E+0
D_m [mum^2/s] 3.880E+0 1.211E+0 3.572E+0 1.099E+0 8.055E+0 4.221E+0 1.015E+1 6.862E+0 6.279E+0 9.941E-1 2.480E+1 1.707E+1
R [1/s] 2.102E+1 2.026E+1 2.902E+1 3.076E+1
CPM [kHz] 2.377E+0 6.476E-1 3.683E-1 3.034E-1 1.499E+0 7.432E-1 2.058E-1 1.319E-1
CPM_corr [kHz] 2.405E+0 6.436E-1 4.599E-1 3.655E-1 1.696E+0 7.892E-1 6.042E-1 6.316E-1
Int [kHz] 2.086E+2 1.118E+2 1.646E+2 5.209E+1 2.582E+1 2.470E+1 3.324E+1 4.590E+1
Int_corr [kHz] 2.190E+2 1.181E+2 2.586E+2 9.535E+1 2.813E+1 2.631E+1 4.869E+1 8.001E+1
# samples 216 216 162 162 162 162 167 167 53 53 43 43
# cells 74

Histograms

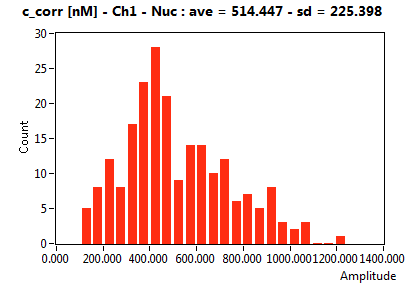

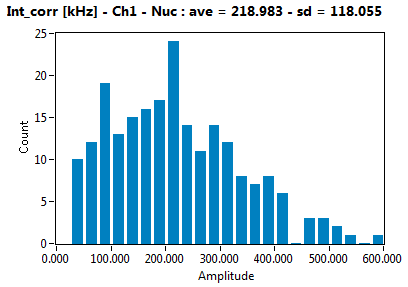

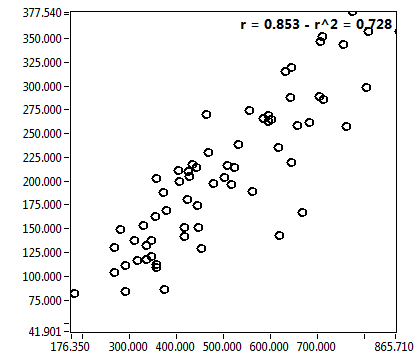

c_corr [nM] - Ch1 - Nuc : ave = 514.447 - sd = 225.398Int_corr [kHz] - Ch1 - Nuc : ave = 218.983 - sd = 118.055r = 0.853 - r^2 = 0.728

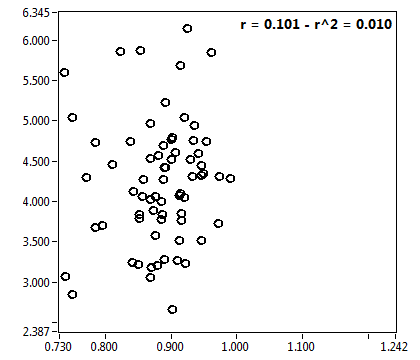

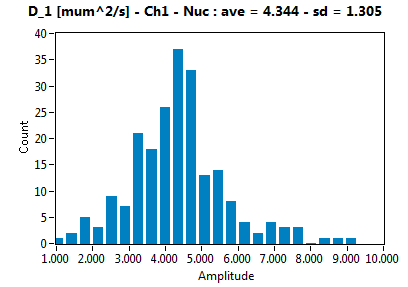

f_1 - Ch1 - Nuc : ave = 0.882 - sd = 0.102D_1 [mum^2/s] - Ch1 - Nuc : ave = 4.344 - sd = 1.305r = 0.101 - r^2 = 0.010

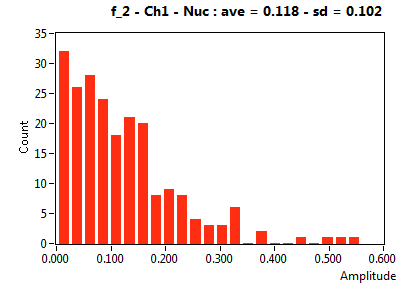

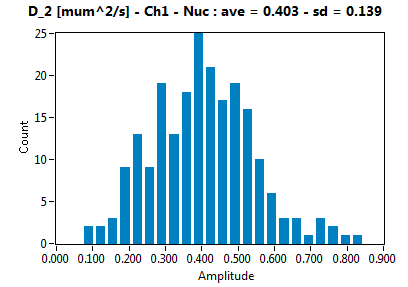

f_2 - Ch1 - Nuc : ave = 0.118 - sd = 0.102D_2 [mum^2/s] - Ch1 - Nuc : ave = 0.403 - sd = 0.139r = -0.289 - r^2 = 0.084

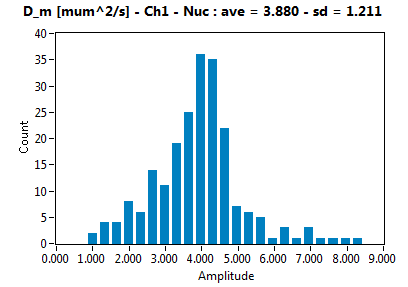

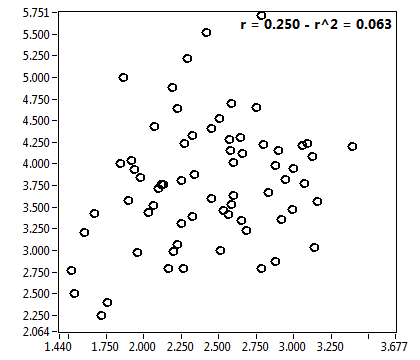

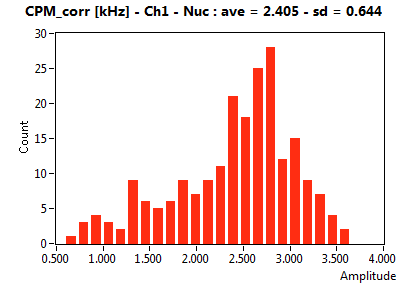

CPM_corr [kHz] - Ch1 - Nuc : ave = 2.405 - sd = 0.644D_m [mum^2/s] - Ch1 - Nuc : ave = 3.880 - sd = 1.211r = 0.250 - r^2 = 0.063

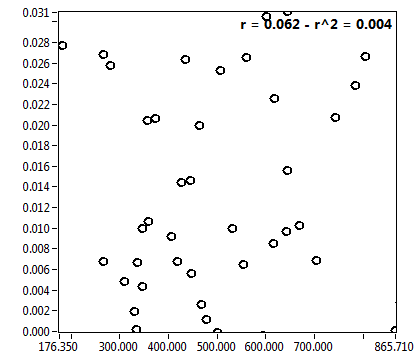

c_corr [nM] - Ch1 - Nuc : ave = 514.447 - sd = 225.398ratioG_corr - Cross - Nuc : ave = 0.009 - sd = 0.026r = 0.062 - r^2 = 0.004

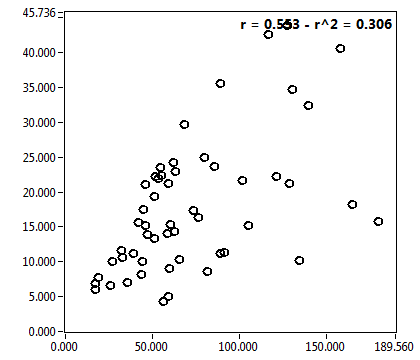

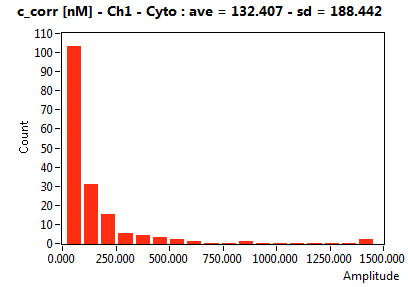

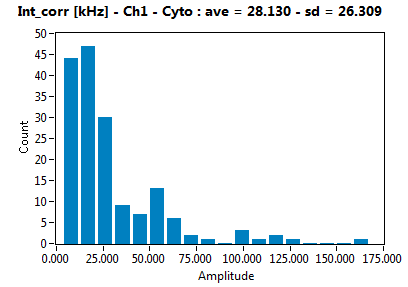

c_corr [nM] - Ch1 - Cyto : ave = 132.407 - sd = 188.442Int_corr [kHz] - Ch1 - Cyto : ave = 28.130 - sd = 26.309r = 0.553 - r^2 = 0.306

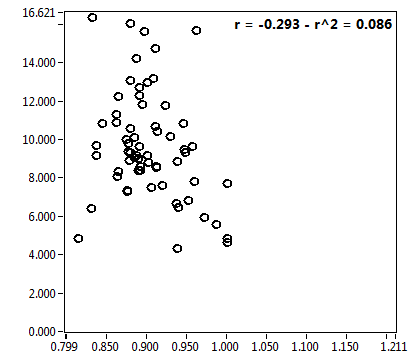

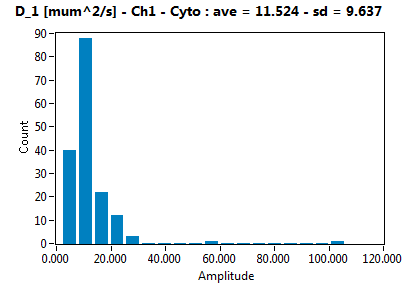

f_1 - Ch1 - Cyto : ave = 0.897 - sd = 0.066D_1 [mum^2/s] - Ch1 - Cyto : ave = 11.524 - sd = 9.637r = -0.293 - r^2 = 0.086

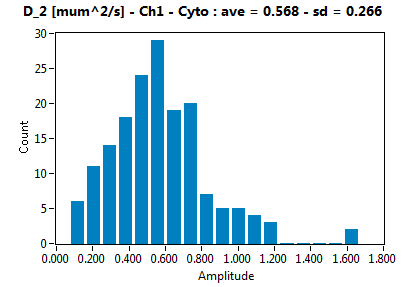

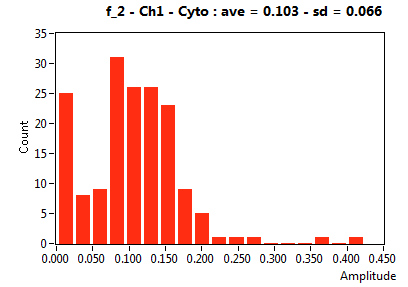

f_2 - Ch1 - Cyto : ave = 0.103 - sd = 0.066D_2 [mum^2/s] - Ch1 - Cyto : ave = 0.568 - sd = 0.266r = -0.032 - r^2 = 0.001

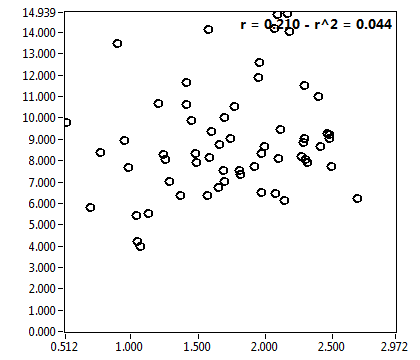

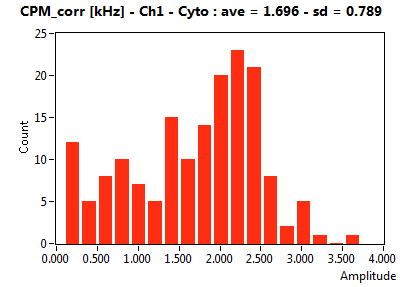

CPM_corr [kHz] - Ch1 - Cyto : ave = 1.696 - sd = 0.789D_m [mum^2/s] - Ch1 - Cyto : ave = 10.155 - sd = 6.862r = 0.210 - r^2 = 0.044
