Automated F(C)CS analysis of clone # CENPAC07

Created on 12/08/2014
Back to overview

Gene and protein information

Clone # CENPAC07
Gene symbol: CENPA
Description: centromere protein A
Molecular weight (with FP): 43.0 kDa
Localisation: granular nucleus, ave. nucleoli, no speckles, no cytoplasm

Image and FCS data

Images Ch1 (EYFP construct), Ch2 (H2B-mCherry) with measurement points

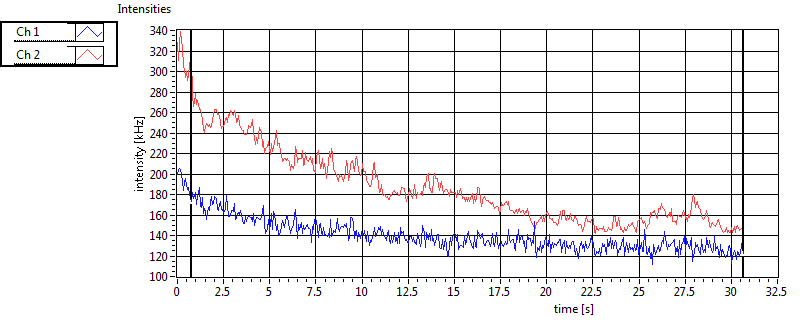

Point 1, intensity traces and correlation functions

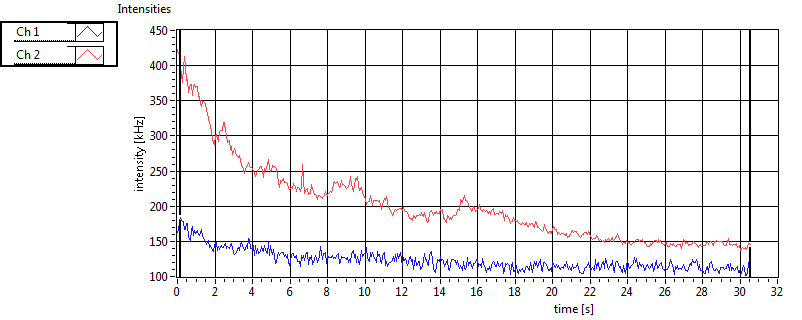

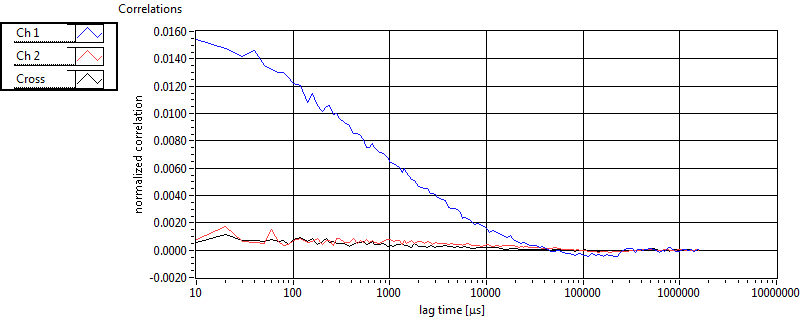

Point 2, intensity traces and correlation functions

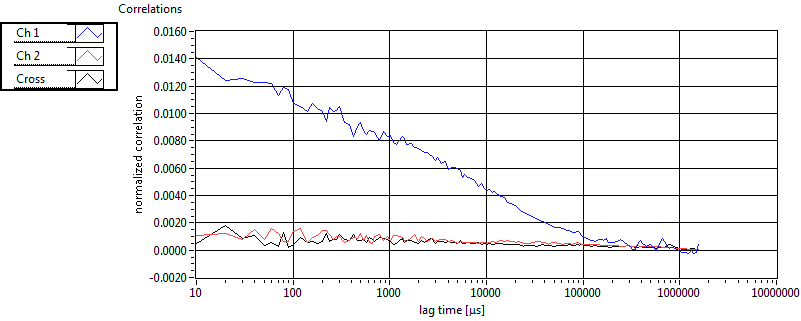

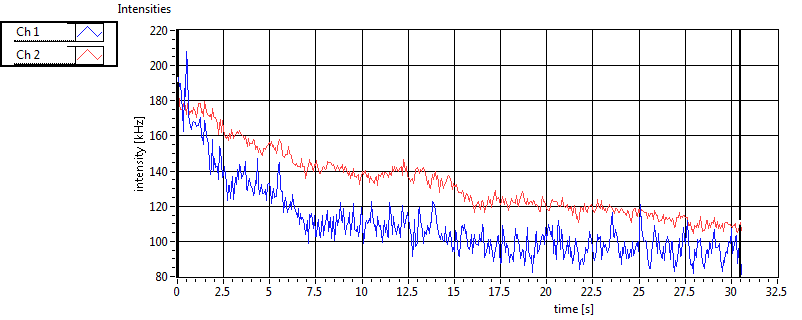

Point 3, intensity traces and correlation functions

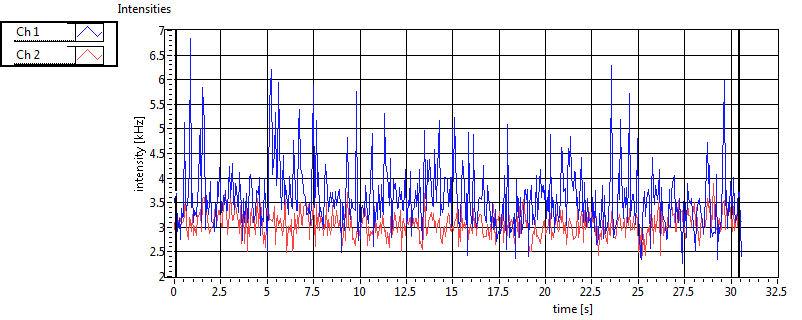

Point 4, intensity traces and correlation functions

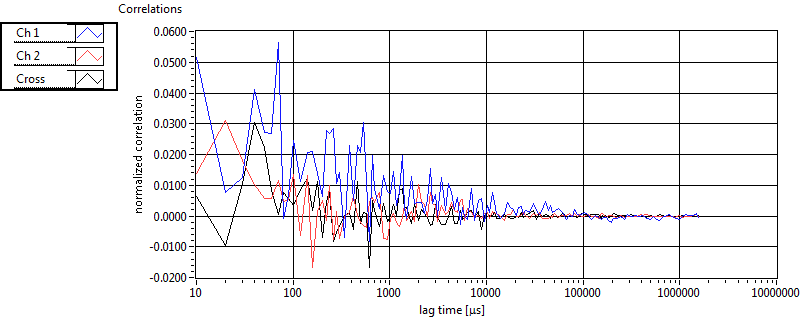

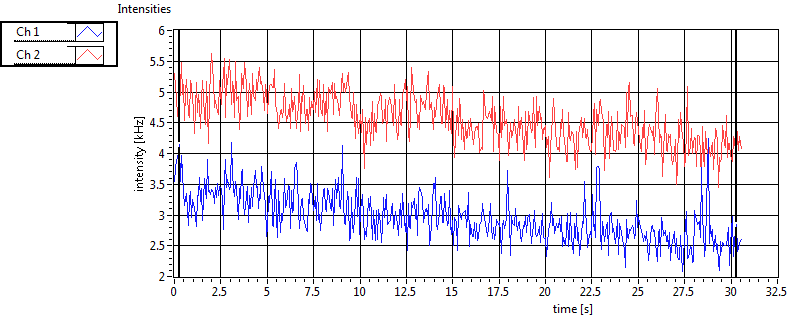

Point 5, intensity traces and correlation functions

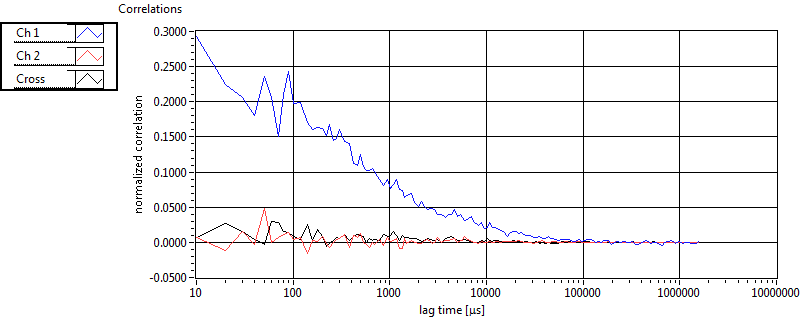

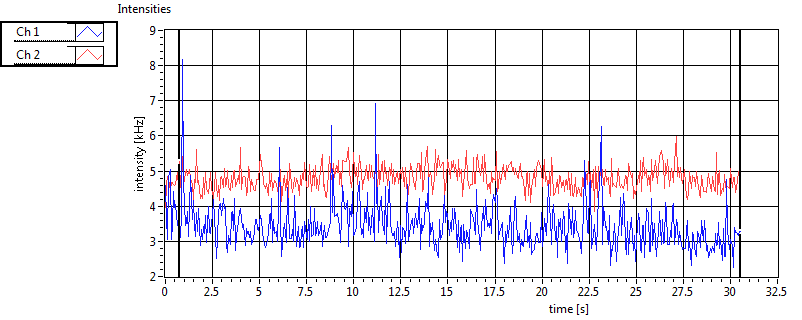

Point 6, intensity traces and correlation functions

Sessions

1 20120203\U00--V00--CENPAC07
2 20120221\U02--V00--CENPAC07

Results table

Ch1 ave
Nuc		 Ch1 sd
Nuc		 Ch2 ave
Nuc		 Ch2 sd
Nuc		 Cross ave
Nuc		 Cross sd
Nuc		 Ch1 ave
Cyto		 Ch1 sd
Cyto		 Ch2 ave
Cyto		 Ch2 sd
Cyto		 Cross ave
Cyto		 Cross sd
Cyto
N 1.005E+2 6.516E+1 1.012E+3 4.800E+2 1.048E+1 1.252E+1 2.341E+1 2.958E+1 2.943E+2 1.904E+2 1.450E+1 1.984E+1
N_corr 1.520E+2 1.269E+2 1.537E+3 7.913E+2 2.129E+1 2.949E+1 2.742E+1 4.768E+1 3.739E+2 2.921E+2 4.059E+1 8.412E+1
c [nM] 6.249E+2 4.052E+2 4.692E+3 2.226E+3 5.387E+1 6.434E+1 1.456E+2 1.840E+2 1.365E+3 8.833E+2 7.455E+1 1.020E+2
c_corr [nM] 9.451E+2 7.892E+2 7.129E+3 3.670E+3 1.094E+2 1.516E+2 1.705E+2 2.965E+2 1.734E+3 1.355E+3 2.087E+2 4.325E+2
ratioG 9.279E-2 5.779E-2 2.577E-1 1.597E-1
ratioG_corr 2.311E-2 5.371E-2 1.991E-1 2.421E-1
f_1 8.106E-1 1.538E-1 4.383E-1 2.158E-1 9.520E-1 1.018E-1 8.921E-1 8.474E-2 7.129E-1 3.586E-1 9.181E-1 1.145E-1
tauD_1 [ms] 2.619E+0 2.616E+0 1.860E+0 2.220E-16 2.083E+0 1.956E+0 1.064E+0 1.209E+0 1.860E+0 0.000E+0 1.795E+0 1.269E+0
D_1 [mum^2/s] 6.142E+0 3.729E+0 6.926E+0 8.882E-16 1.148E+1 1.587E+1 1.853E+1 1.443E+1 6.926E+0 0.000E+0 2.163E+1 3.296E+1
alpha_1 9.346E-1 9.898E-2 9.200E-1 0.000E+0 8.014E-1 2.242E-1 9.809E-1 1.111E-1 9.200E-1 0.000E+0 1.041E+0 1.907E-1
f_2 1.894E-1 1.538E-1 5.617E-1 2.158E-1 4.805E-2 1.018E-1 1.079E-1 8.474E-2 2.871E-1 3.586E-1 8.190E-2 1.145E-1
tauD_2 [ms] 3.714E+1 3.039E+1 9.316E+1 1.125E+2 1.180E+2 1.090E+2 2.058E+1 1.494E+1 6.663E+1 8.760E+1 5.167E+1 3.081E+1
D_2 [mum^2/s] 4.059E-1 1.980E-1 4.908E-1 7.188E-1 1.610E-1 8.776E-2 7.206E-1 4.027E-1 1.506E+0 2.703E+0 4.491E-1 5.232E-1
alpha_2 1.366E+0 2.861E-1 1.310E+0 3.065E-1 1.125E+0 1.671E-1 1.138E+0 1.497E-1 1.301E+0 4.114E-1 1.152E+0 2.719E-1
tauD_m [ms] 9.675E+0 9.659E+0 5.163E+1 6.239E+1 1.338E+1 3.852E+1 3.622E+0 4.829E+0 1.033E+1 1.267E+1 8.192E+0 1.405E+1
D_m [mum^2/s] 4.988E+0 2.674E+0 3.358E+0 1.329E+0 1.083E+1 1.441E+1 1.661E+1 1.335E+1 5.869E+0 1.394E+0 2.045E+1 3.167E+1
R [1/s] 2.136E+1 2.028E+1 3.393E+1 4.385E+1
CPM [kHz] 1.543E+0 5.184E-1 4.422E-1 4.368E-1 8.340E-1 5.614E-1 2.154E-1 1.134E-1
CPM_corr [kHz] 1.569E+0 5.136E-1 5.043E-1 4.810E-1 1.139E+0 7.174E-1 3.136E-1 2.035E-1
Int [kHz] 1.547E+2 9.873E+1 1.803E+2 5.551E+1 1.477E+1 1.500E+1 5.519E+1 3.427E+1
Int_corr [kHz] 2.263E+2 1.574E+2 3.137E+2 1.133E+2 1.867E+1 2.053E+1 8.345E+1 6.278E+1
# samples 192 192 140 140 131 131 142 142 24 24 19 19
# cells 66

Histograms

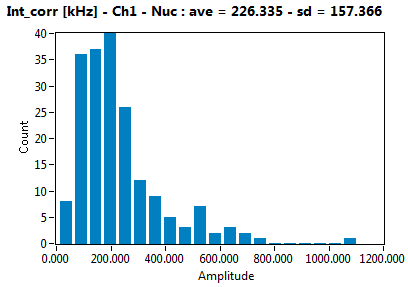

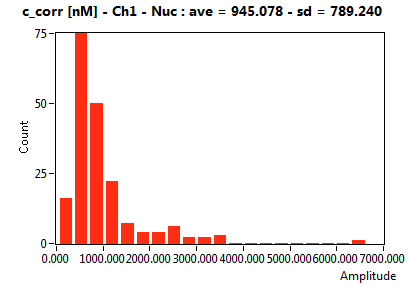

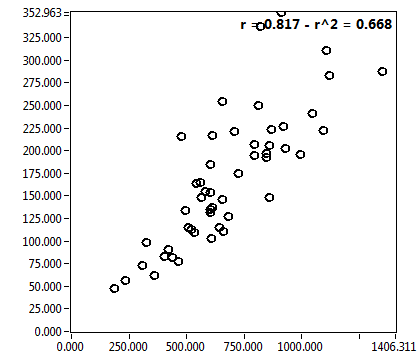

c_corr [nM] - Ch1 - Nuc : ave = 945.078 - sd = 789.240Int_corr [kHz] - Ch1 - Nuc : ave = 226.335 - sd = 157.366r = 0.817 - r^2 = 0.668

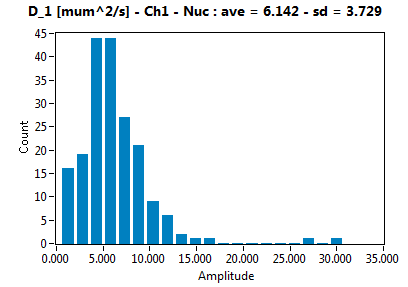

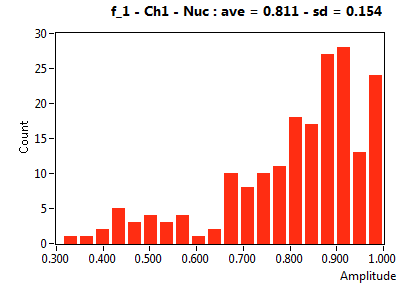

f_1 - Ch1 - Nuc : ave = 0.811 - sd = 0.154D_1 [mum^2/s] - Ch1 - Nuc : ave = 6.142 - sd = 3.729r = 0.075 - r^2 = 0.006

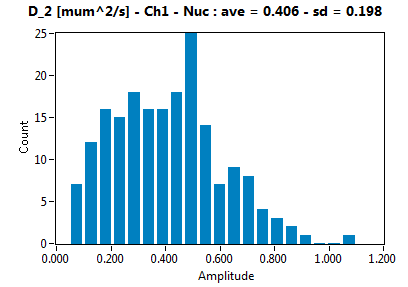

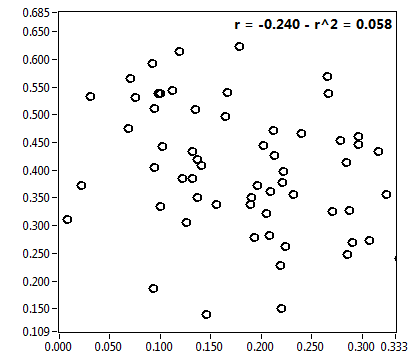

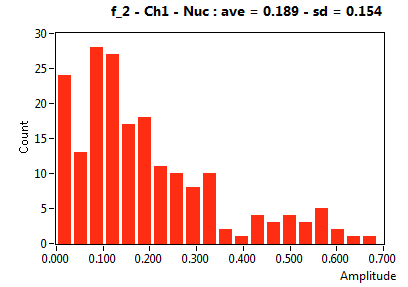

f_2 - Ch1 - Nuc : ave = 0.189 - sd = 0.154D_2 [mum^2/s] - Ch1 - Nuc : ave = 0.406 - sd = 0.198r = -0.240 - r^2 = 0.058

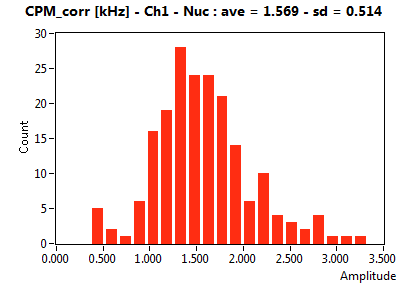

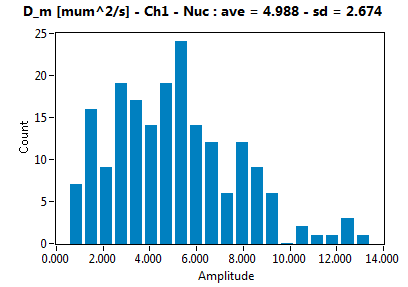

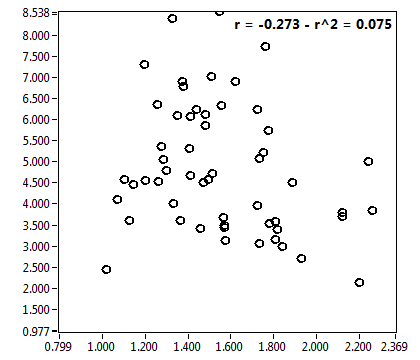

CPM_corr [kHz] - Ch1 - Nuc : ave = 1.569 - sd = 0.514D_m [mum^2/s] - Ch1 - Nuc : ave = 4.988 - sd = 2.674r = -0.273 - r^2 = 0.075

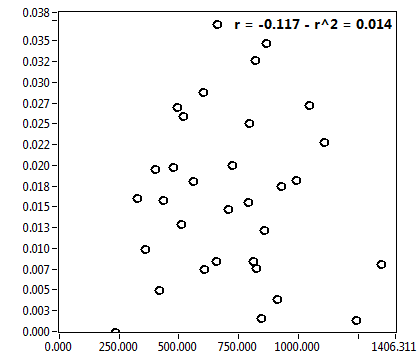

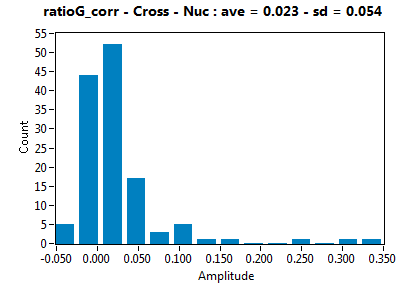

c_corr [nM] - Ch1 - Nuc : ave = 945.078 - sd = 789.240ratioG_corr - Cross - Nuc : ave = 0.023 - sd = 0.054r = -0.117 - r^2 = 0.014

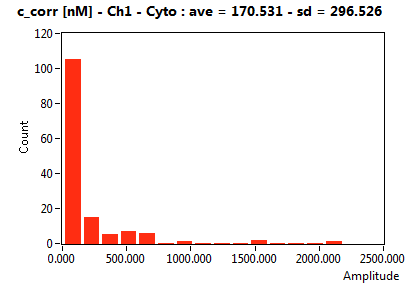

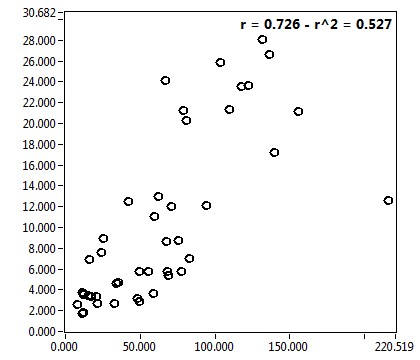

c_corr [nM] - Ch1 - Cyto : ave = 170.531 - sd = 296.526Int_corr [kHz] - Ch1 - Cyto : ave = 18.667 - sd = 20.526r = 0.726 - r^2 = 0.527

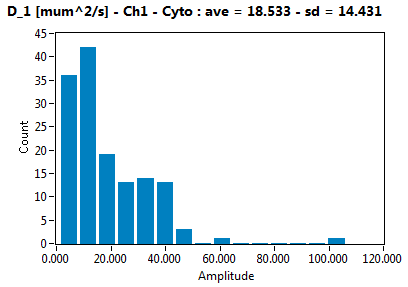

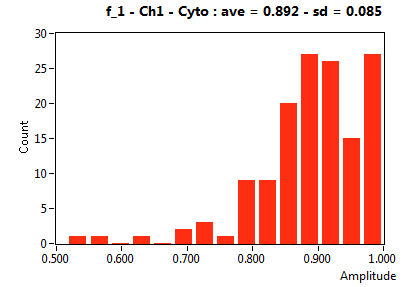

f_1 - Ch1 - Cyto : ave = 0.892 - sd = 0.085D_1 [mum^2/s] - Ch1 - Cyto : ave = 18.533 - sd = 14.431r = -0.013 - r^2 = 0.000

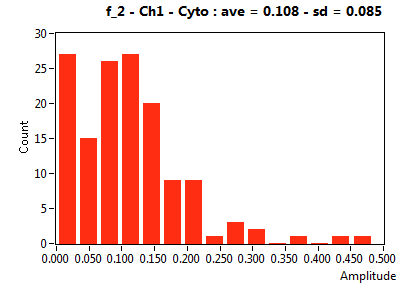

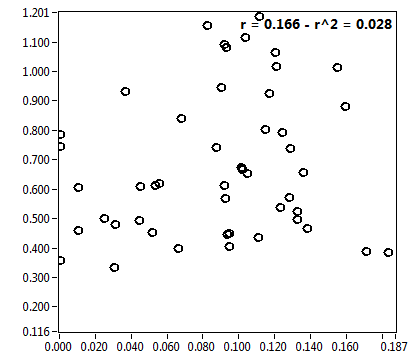

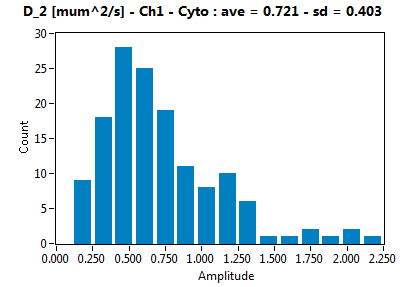

f_2 - Ch1 - Cyto : ave = 0.108 - sd = 0.085D_2 [mum^2/s] - Ch1 - Cyto : ave = 0.721 - sd = 0.403r = 0.166 - r^2 = 0.028

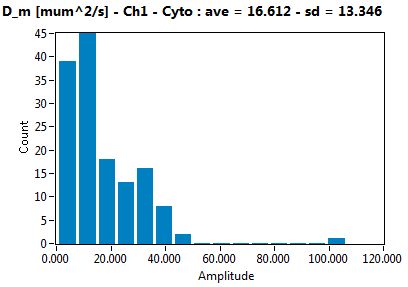

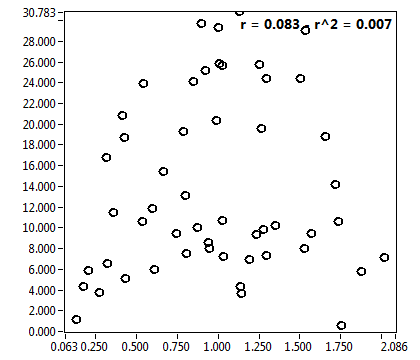

CPM_corr [kHz] - Ch1 - Cyto : ave = 1.139 - sd = 0.717D_m [mum^2/s] - Ch1 - Cyto : ave = 16.612 - sd = 13.346r = 0.083 - r^2 = 0.007
