Automated F(C)CS analysis of clone # 3099

Created on 12/08/2014
Back to overview

Gene and protein information

Clone # 3099
Gene symbol: SF3B5
Description: splicing factor 3b, subunit 5, 10kDa
Molecular weight (with FP): 37.1 kDa
Localisation: granular nucleus, dim nucleoli, no speckles, no cytoplasm

Image and FCS data

Images Ch1 (EYFP construct), Ch2 (H2B-mCherry) with measurement points

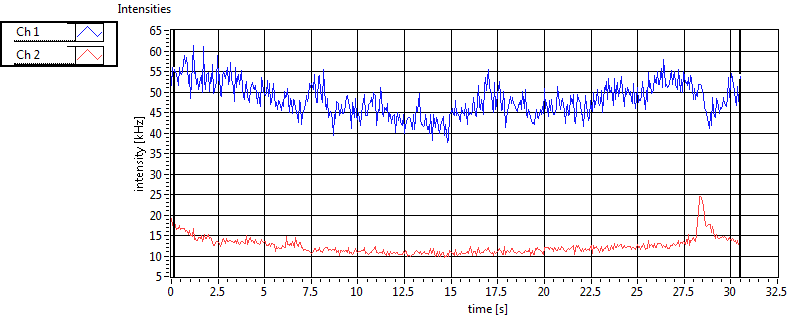

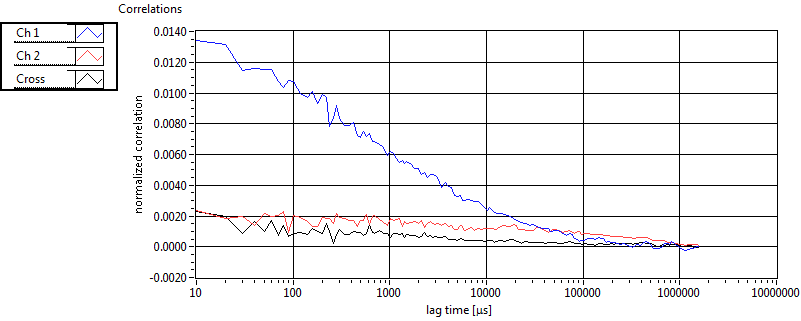

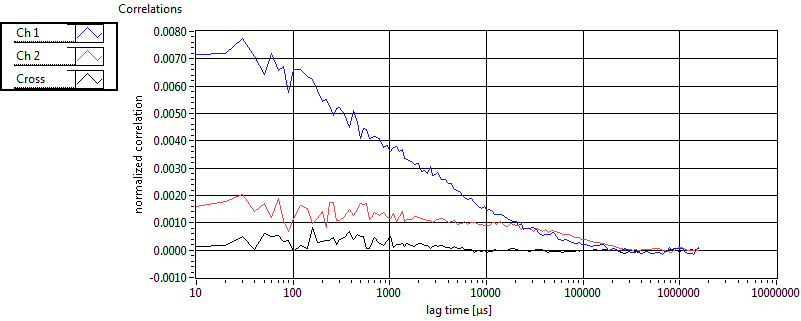

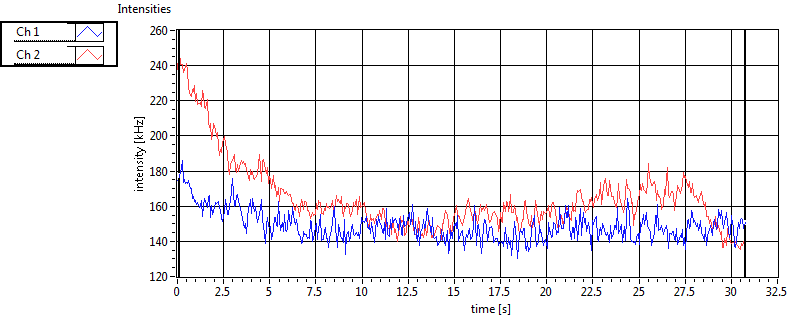

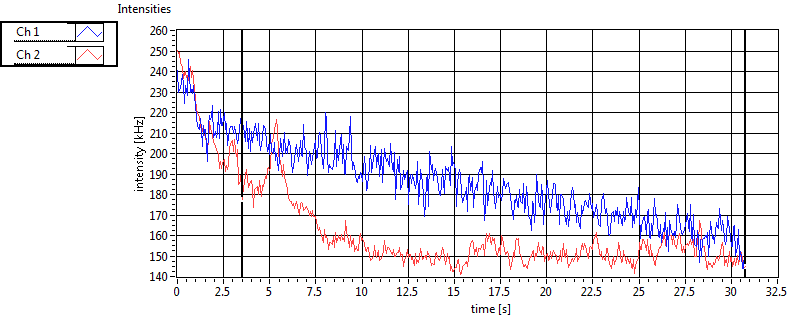

Point 1, intensity traces and correlation functions

Point 2, intensity traces and correlation functions

Point 3, intensity traces and correlation functions

Point 4, intensity traces and correlation functions

Point 5, intensity traces and correlation functions

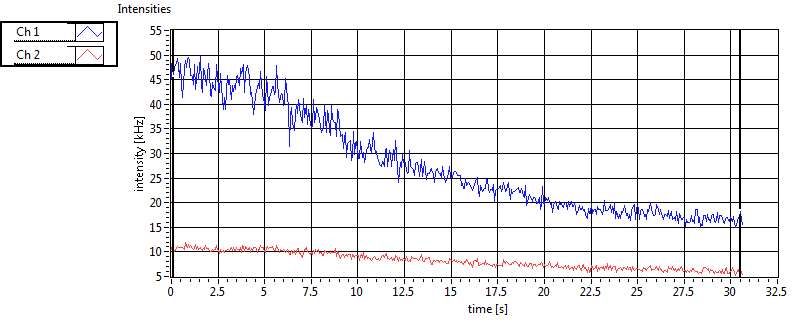

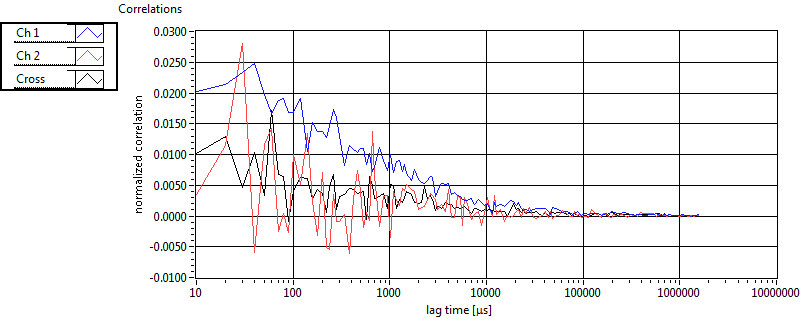

Point 6, intensity traces and correlation functions

Sessions

1 20110826\U02--V00--3099
2 20110826\U03--V00--3099
3 20110909\U03--V00--3099
4 20110923\U01--V00--3099
5 20110927\U01--V00--3099
6 20110928\U01--V00--3099
7 20110930\U01--V00--3099

Results table

Ch1 ave
Nuc		 Ch1 sd
Nuc		 Ch2 ave
Nuc		 Ch2 sd
Nuc		 Cross ave
Nuc		 Cross sd
Nuc		 Ch1 ave
Cyto		 Ch1 sd
Cyto		 Ch2 ave
Cyto		 Ch2 sd
Cyto		 Cross ave
Cyto		 Cross sd
Cyto
N 7.274E+1 5.079E+1 9.312E+2 3.441E+2 7.715E+0 1.059E+1 4.901E+1 6.004E+1 2.017E+2 3.063E+2 3.026E+1 3.871E+1
N_corr 7.816E+1 5.485E+1 1.364E+3 5.659E+2 8.745E+0 1.196E+1 5.556E+1 7.241E+1 1.904E+2 3.655E+2 3.691E+1 5.200E+1
c [nM] 4.524E+2 3.159E+2 4.319E+3 1.596E+3 3.966E+1 5.444E+1 3.048E+2 3.734E+2 9.356E+2 1.421E+3 1.555E+2 1.990E+2
c_corr [nM] 4.861E+2 3.411E+2 6.326E+3 2.625E+3 4.496E+1 6.147E+1 3.455E+2 4.503E+2 8.833E+2 1.695E+3 1.898E+2 2.673E+2
ratioG 7.925E-2 5.983E-2 5.408E-1 2.302E-1
ratioG_corr 9.766E-3 4.278E-2 1.075E-1 1.094E-1
f_1 8.641E-1 7.159E-2 4.647E-1 2.195E-1 9.927E-1 3.105E-2 9.035E-1 5.950E-2 9.850E-1 7.978E-2 9.817E-1 4.634E-2
tauD_1 [ms] 1.087E+0 5.720E-1 1.815E+0 1.124E-1 8.255E-1 8.599E-1 7.797E-1 4.755E-1 1.845E+0 2.918E+0 4.609E-1 3.137E-1
D_1 [mum^2/s] 1.186E+1 4.682E+0 7.127E+0 4.478E-1 3.219E+1 3.125E+1 1.638E+1 7.315E+0 2.108E+1 2.426E+1 3.401E+1 1.676E+1
alpha_1 9.740E-1 8.634E-2 9.212E-1 1.809E-2 8.508E-1 2.204E-1 1.022E+0 1.501E-1 8.931E-1 2.211E-1 7.956E-1 1.657E-1
f_2 1.359E-1 7.159E-2 5.353E-1 2.195E-1 7.337E-3 3.105E-2 9.654E-2 5.950E-2 1.501E-2 7.978E-2 1.828E-2 4.634E-2
tauD_2 [ms] 1.936E+1 9.702E+0 8.090E+1 1.148E+2 7.118E+1 5.151E+1 1.949E+1 2.025E+1 2.546E+1 6.081E+1 2.205E+1 2.688E+1
D_2 [mum^2/s] 6.643E-1 2.763E-1 5.811E-1 8.535E-1 2.445E-1 1.506E-1 8.016E-1 3.571E-1 1.581E+0 1.062E+0 8.248E-1 5.167E-1
alpha_2 1.347E+0 3.045E-1 1.336E+0 3.298E-1 1.134E+0 6.571E-2 1.135E+0 1.977E-1 1.039E+0 7.969E-2 1.159E+0 1.352E-1
tauD_m [ms] 3.600E+0 2.291E+0 4.064E+1 5.141E+1 1.652E+0 4.568E+0 2.320E+0 2.413E+0 5.818E+0 2.594E+1 8.427E-1 2.068E+0
D_m [mum^2/s] 1.040E+1 4.300E+0 3.667E+0 1.398E+0 3.189E+1 3.078E+1 1.479E+1 6.095E+0 2.098E+1 2.433E+1 3.333E+1 1.650E+1
R [1/s] 4.331E+1 3.526E+1 2.573E+1 3.796E+1
CPM [kHz] 1.404E+0 2.810E-1 2.942E-1 2.162E-1 1.381E+0 4.853E-1 1.684E-1 1.215E-1
CPM_corr [kHz] 1.442E+0 2.848E-1 3.329E-1 2.501E-1 1.473E+0 4.742E-1 6.400E-1 3.880E-1
Int [kHz] 1.120E+2 7.853E+1 1.495E+2 3.971E+1 7.408E+1 1.450E+2 3.351E+1 4.513E+1
Int_corr [kHz] 1.219E+2 8.353E+1 2.436E+2 6.952E+1 8.195E+1 1.510E+2 5.289E+1 8.598E+1
# samples 236 236 168 168 149 149 317 317 115 115 104 104
# cells 136

Histograms

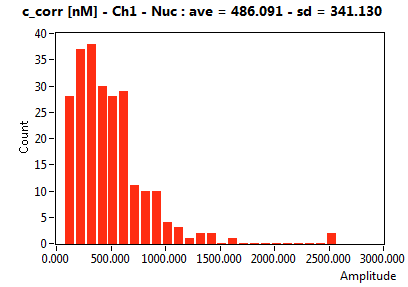

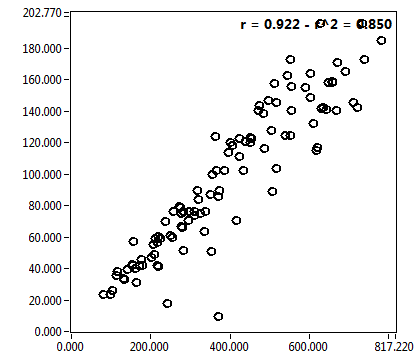

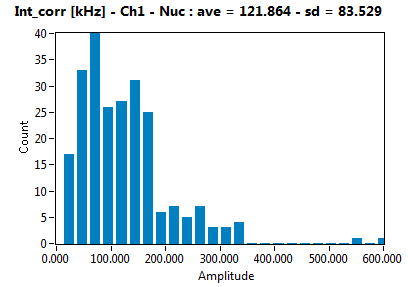

c_corr [nM] - Ch1 - Nuc : ave = 486.091 - sd = 341.130Int_corr [kHz] - Ch1 - Nuc : ave = 121.864 - sd = 83.529r = 0.922 - r^2 = 0.850

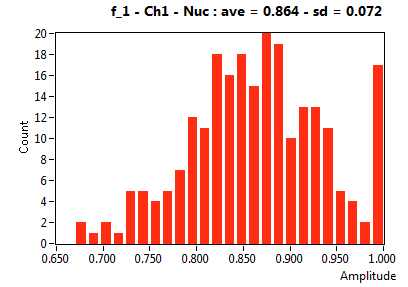

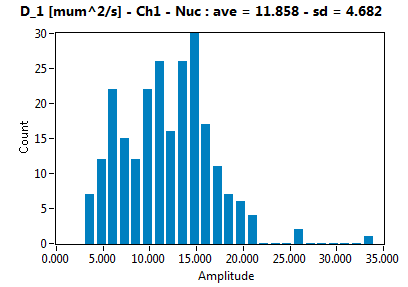

f_1 - Ch1 - Nuc : ave = 0.864 - sd = 0.072D_1 [mum^2/s] - Ch1 - Nuc : ave = 11.858 - sd = 4.682r = 0.444 - r^2 = 0.197

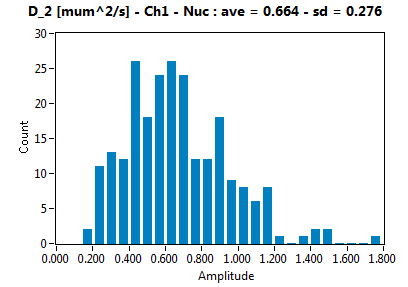

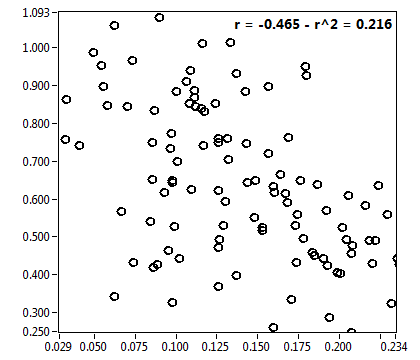

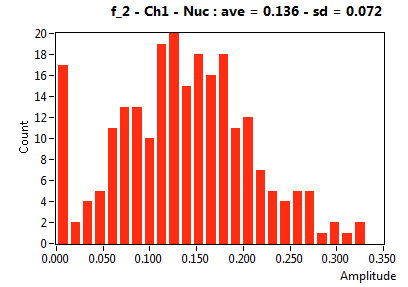

f_2 - Ch1 - Nuc : ave = 0.136 - sd = 0.072D_2 [mum^2/s] - Ch1 - Nuc : ave = 0.664 - sd = 0.276r = -0.465 - r^2 = 0.216

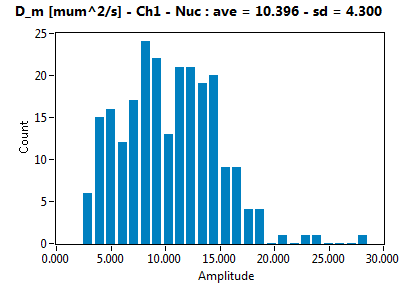

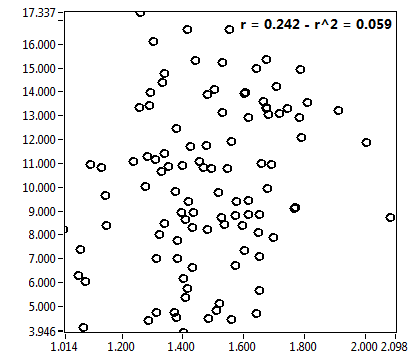

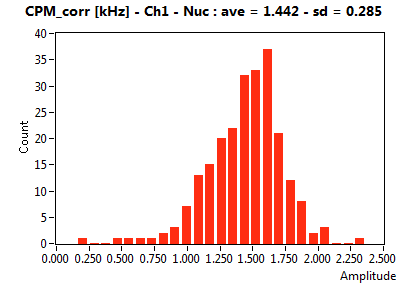

CPM_corr [kHz] - Ch1 - Nuc : ave = 1.442 - sd = 0.285D_m [mum^2/s] - Ch1 - Nuc : ave = 10.396 - sd = 4.300r = 0.242 - r^2 = 0.059

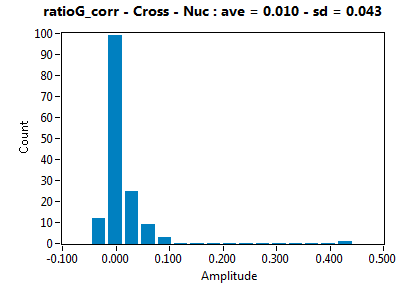

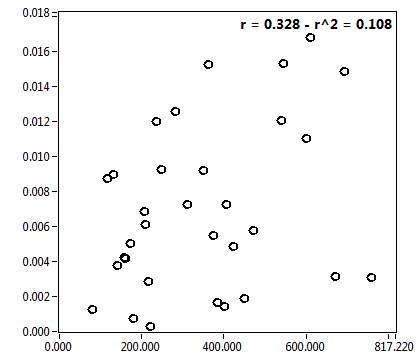

c_corr [nM] - Ch1 - Nuc : ave = 486.091 - sd = 341.130ratioG_corr - Cross - Nuc : ave = 0.010 - sd = 0.043r = 0.328 - r^2 = 0.108
c_corr [nM] - Ch1 - Cyto : ave = 345.520 - sd = 450.324Int_corr [kHz] - Ch1 - Cyto : ave = 81.949 - sd = 150.984r = 0.868 - r^2 = 0.753

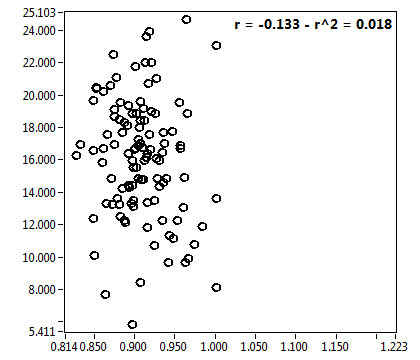

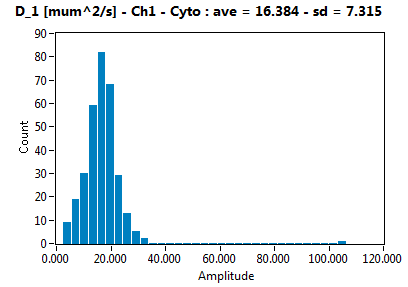

f_1 - Ch1 - Cyto : ave = 0.903 - sd = 0.060D_1 [mum^2/s] - Ch1 - Cyto : ave = 16.384 - sd = 7.315r = -0.133 - r^2 = 0.018

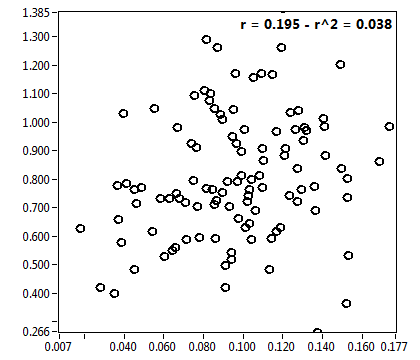

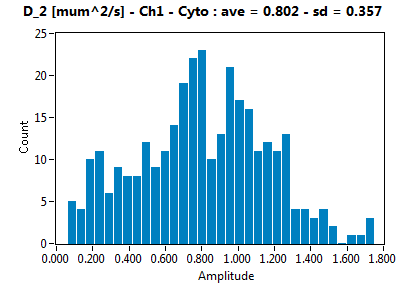

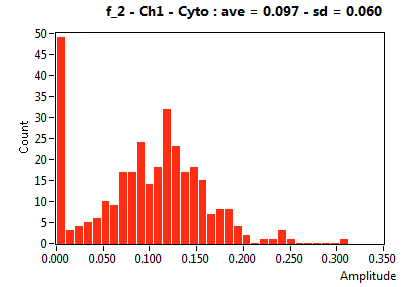

f_2 - Ch1 - Cyto : ave = 0.097 - sd = 0.060D_2 [mum^2/s] - Ch1 - Cyto : ave = 0.802 - sd = 0.357r = 0.195 - r^2 = 0.038

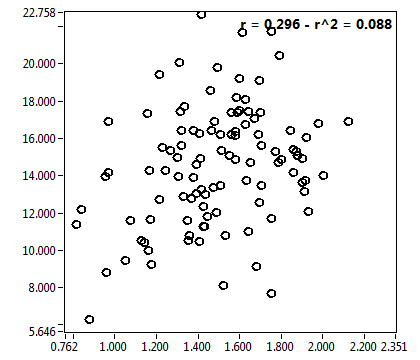

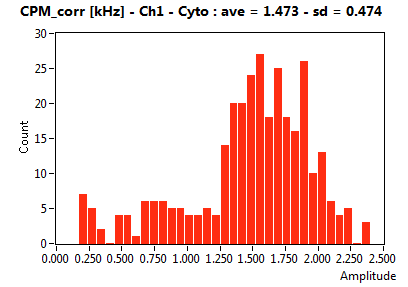

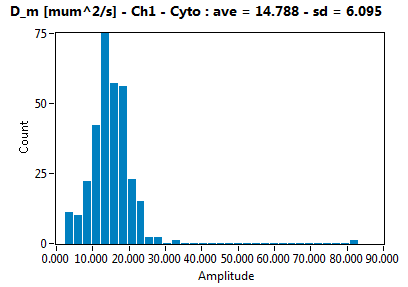

CPM_corr [kHz] - Ch1 - Cyto : ave = 1.473 - sd = 0.474D_m [mum^2/s] - Ch1 - Cyto : ave = 14.788 - sd = 6.095r = 0.296 - r^2 = 0.088
