Automated F(C)CS analysis of clone # 2692

Created on 12/08/2014
Back to overview

Gene and protein information

Clone # 2692
Gene symbol: H3F3B
Description: H3 histone, family 3B (H3.3B)
Molecular weight (with FP): 42.3 kDa
Localisation: granular nucleus, dim nucleoli, no speckles, no cytoplasm

Image and FCS data

Images Ch1 (EYFP construct), Ch2 (H2B-mCherry) with measurement points

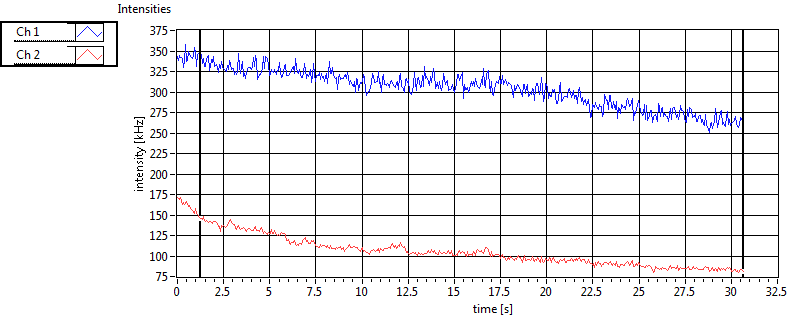

Point 1, intensity traces and correlation functions

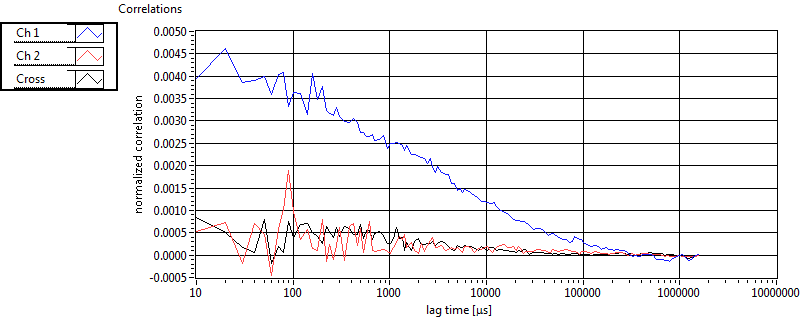

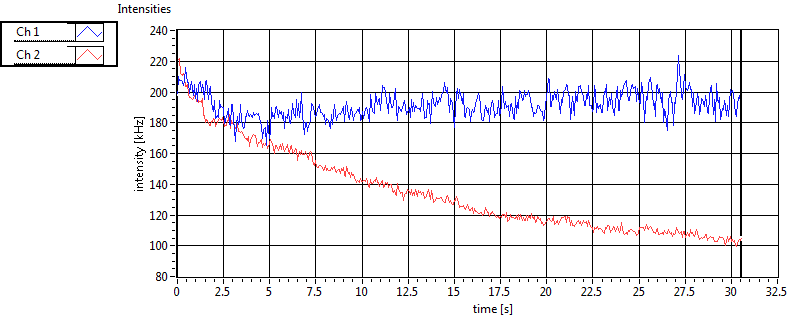

Point 2, intensity traces and correlation functions

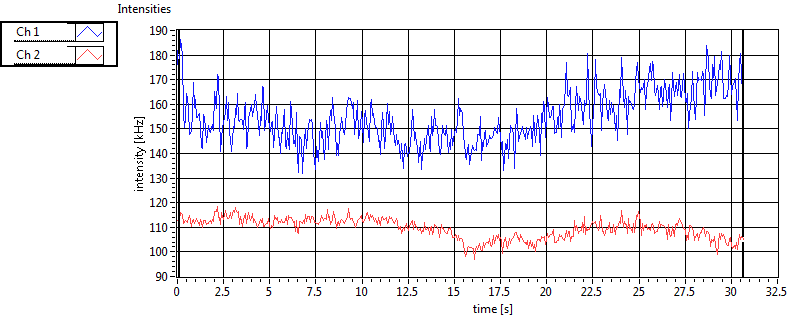

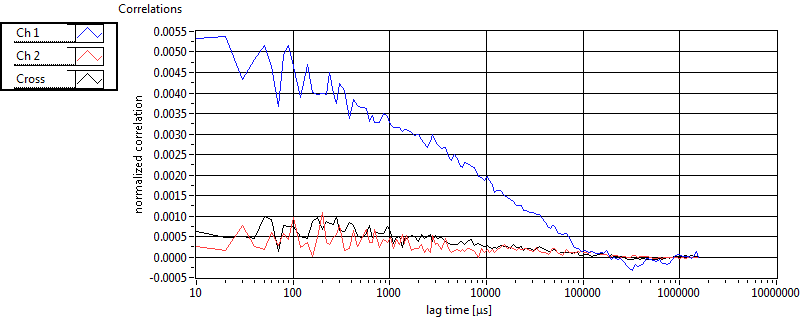

Point 3, intensity traces and correlation functions

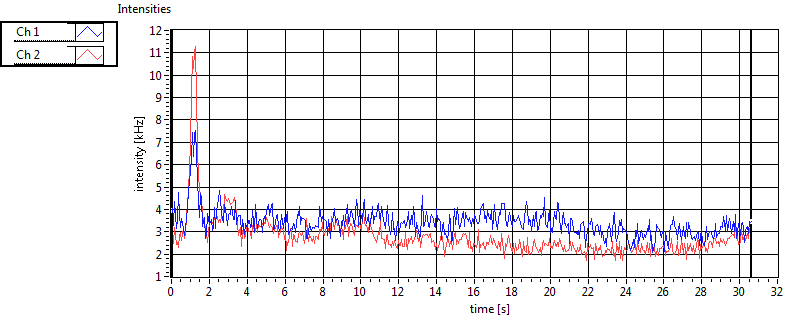

Point 4, intensity traces and correlation functions

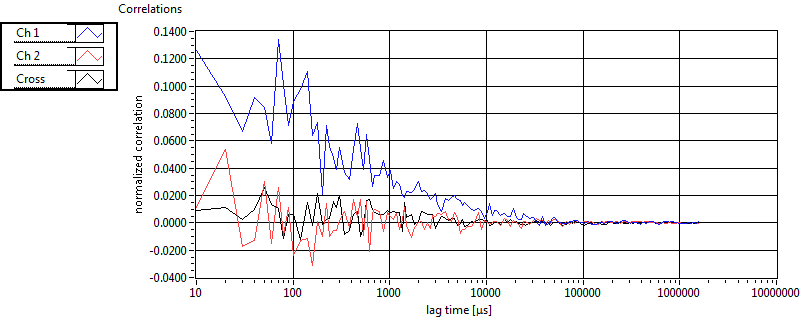

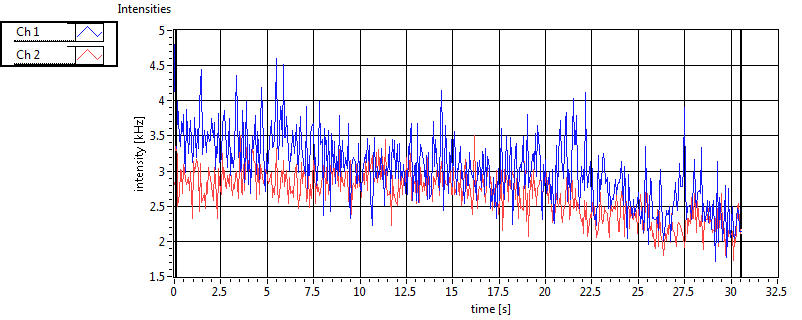

Point 5, intensity traces and correlation functions

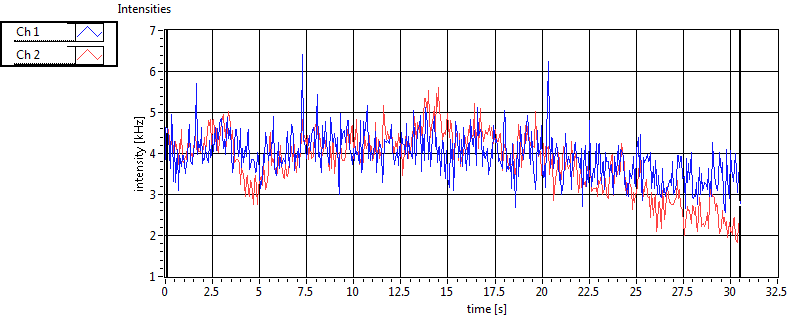

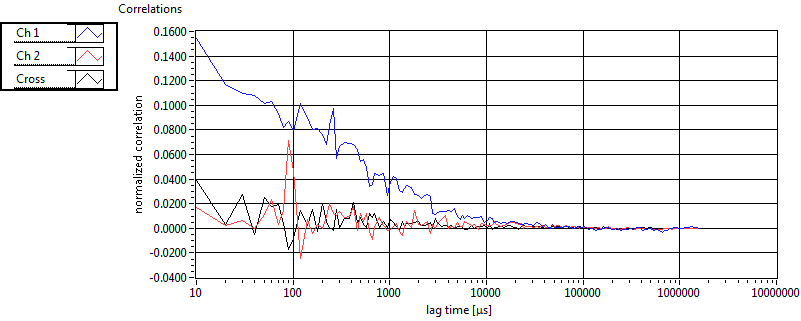

Point 6, intensity traces and correlation functions

Sessions

1 20110913\U03--V00--2692
2 20110914\U00--V01--2692
3 20110921\U03--V00--2692
4 20110923\U00--V01--2692
5 20110928\U00--V01--2692

Results table

Ch1 ave
Nuc		 Ch1 sd
Nuc		 Ch2 ave
Nuc		 Ch2 sd
Nuc		 Cross ave
Nuc		 Cross sd
Nuc		 Ch1 ave
Cyto		 Ch1 sd
Cyto		 Ch2 ave
Cyto		 Ch2 sd
Cyto		 Cross ave
Cyto		 Cross sd
Cyto
N 2.021E+2 1.781E+2 1.042E+3 5.384E+2 5.506E+1 6.132E+1 3.179E+1 6.055E+1 2.786E+2 3.217E+2 4.359E+1 7.079E+1
N_corr 2.436E+2 2.196E+2 1.227E+3 7.056E+2 8.127E+1 1.143E+2 3.930E+1 8.846E+1 3.341E+2 3.535E+2 8.658E+1 1.577E+2
c [nM] 1.257E+3 1.108E+3 4.834E+3 2.497E+3 2.831E+2 3.153E+2 1.977E+2 3.766E+2 1.292E+3 1.492E+3 2.241E+2 3.640E+2
c_corr [nM] 1.515E+3 1.366E+3 5.692E+3 3.273E+3 4.178E+2 5.874E+2 2.444E+2 5.502E+2 1.550E+3 1.640E+3 4.451E+2 8.106E+2
ratioG 1.969E-1 1.350E-1 4.208E-1 2.684E-1
ratioG_corr 5.511E-2 1.132E-1 2.766E-1 2.655E-1
f_1 8.826E-1 1.127E-1 4.978E-1 2.585E-1 9.639E-1 7.378E-2 9.410E-1 8.787E-2 9.659E-1 1.603E-1 8.840E-1 2.145E-1
tauD_1 [ms] 1.453E+0 8.190E-1 1.835E+0 4.562E-2 1.083E+0 8.037E-1 7.695E-1 3.361E+0 7.793E+0 1.510E+1 2.668E+0 8.687E+0
D_1 [mum^2/s] 9.582E+0 8.226E+0 7.025E+0 1.720E-1 2.034E+1 2.088E+1 2.753E+1 1.529E+1 1.514E+1 2.745E+1 2.783E+1 2.750E+1
alpha_1 9.599E-1 9.978E-2 9.200E-1 0.000E+0 8.704E-1 2.124E-1 9.762E-1 1.289E-1 9.539E-1 2.767E-1 9.778E-1 2.489E-1
f_2 1.174E-1 1.127E-1 5.022E-1 2.585E-1 3.607E-2 7.378E-2 5.896E-2 8.787E-2 3.406E-2 1.603E-1 1.160E-1 2.145E-1
tauD_2 [ms] 2.569E+1 1.825E+1 9.182E+1 1.160E+2 5.664E+1 4.634E+1 1.887E+1 3.414E+1 2.473E+1 8.962E+1 8.856E+1 1.199E+2
D_2 [mum^2/s] 5.595E-1 2.638E-1 6.829E-1 1.045E+0 3.155E-1 1.694E-1 1.044E+0 5.591E-1 2.321E+0 7.270E-1 4.669E-1 4.462E-1
alpha_2 1.268E+0 2.506E-1 1.271E+0 3.294E-1 1.129E+0 1.692E-1 1.107E+0 1.015E-1 1.073E+0 2.277E-1 1.197E+0 2.538E-1
tauD_m [ms] 5.142E+0 5.988E+0 4.584E+1 6.297E+1 3.770E+0 7.315E+0 3.194E+0 1.863E+1 1.548E+1 3.396E+1 2.963E+1 6.937E+1
D_m [mum^2/s] 8.727E+0 8.259E+0 3.964E+0 1.492E+0 1.963E+1 2.024E+1 2.626E+1 1.518E+1 1.489E+1 2.754E+1 2.524E+1 2.650E+1
R [1/s] 3.859E+1 3.494E+1 5.772E+0 2.778E+1
CPM [kHz] 1.476E+0 5.803E-1 3.401E-1 3.101E-1 8.117E-1 7.678E-1 3.648E-1 3.865E-1
CPM_corr [kHz] 1.500E+0 5.776E-1 4.493E-1 4.014E-1 1.098E+0 8.182E-1 6.435E-1 5.679E-1
Int [kHz] 3.155E+2 3.035E+2 1.695E+2 5.092E+1 2.687E+1 8.727E+1 6.461E+1 6.022E+1
Int_corr [kHz] 3.778E+2 3.766E+2 2.591E+2 8.728E+1 3.632E+1 1.236E+2 1.065E+2 1.056E+2
# samples 174 174 136 136 120 120 219 219 36 36 31 31
# cells 102

Histograms

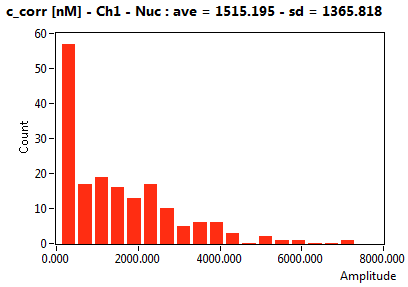

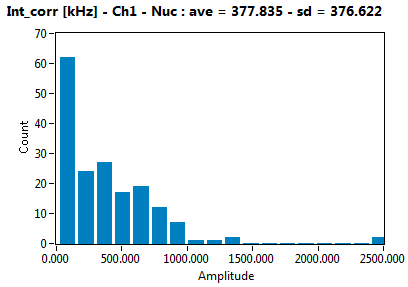

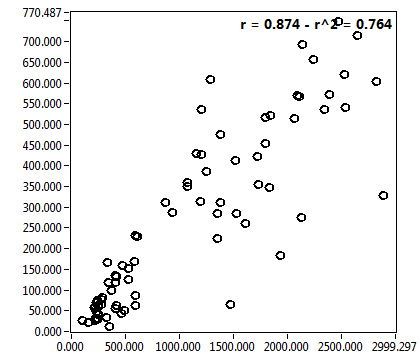

c_corr [nM] - Ch1 - Nuc : ave = 1515.195 - sd = 1365.818Int_corr [kHz] - Ch1 - Nuc : ave = 377.835 - sd = 376.622r = 0.874 - r^2 = 0.764

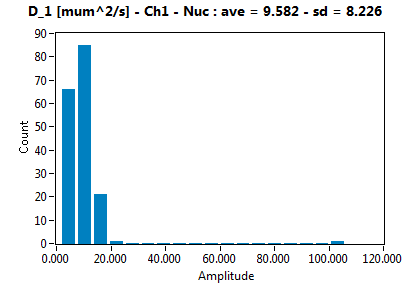

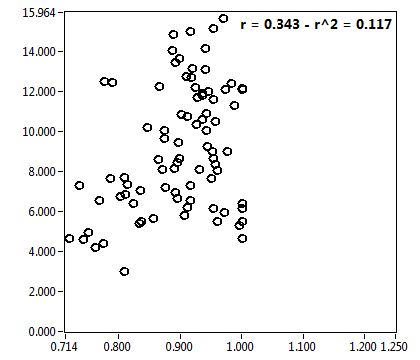

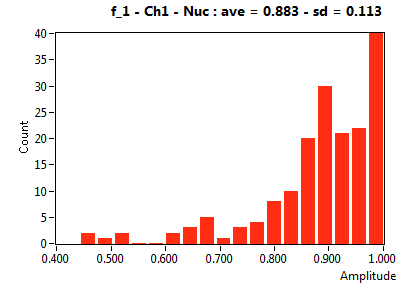

f_1 - Ch1 - Nuc : ave = 0.883 - sd = 0.113D_1 [mum^2/s] - Ch1 - Nuc : ave = 9.582 - sd = 8.226r = 0.343 - r^2 = 0.117

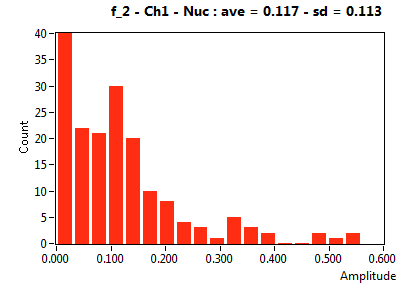

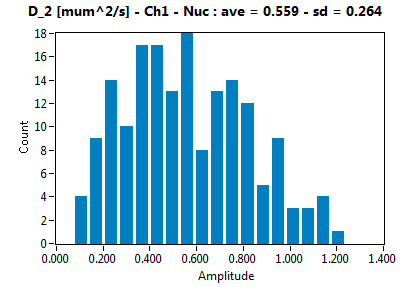

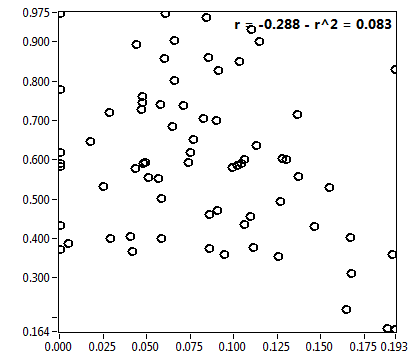

f_2 - Ch1 - Nuc : ave = 0.117 - sd = 0.113D_2 [mum^2/s] - Ch1 - Nuc : ave = 0.559 - sd = 0.264r = -0.288 - r^2 = 0.083

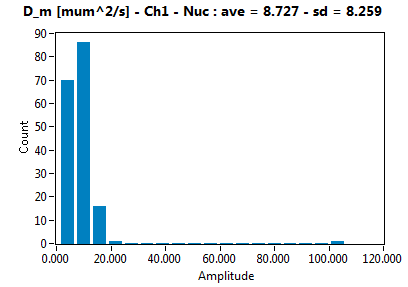

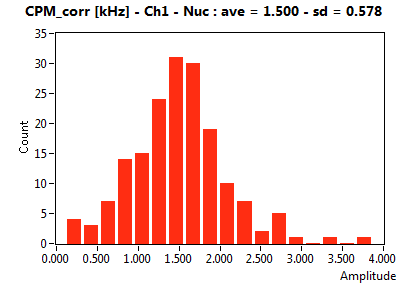

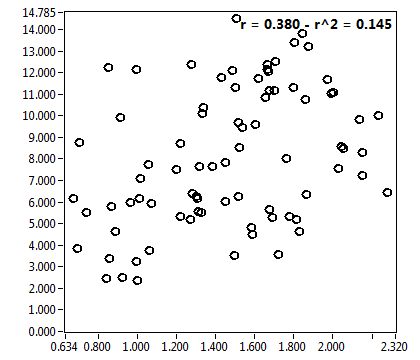

CPM_corr [kHz] - Ch1 - Nuc : ave = 1.500 - sd = 0.578D_m [mum^2/s] - Ch1 - Nuc : ave = 8.727 - sd = 8.259r = 0.380 - r^2 = 0.145

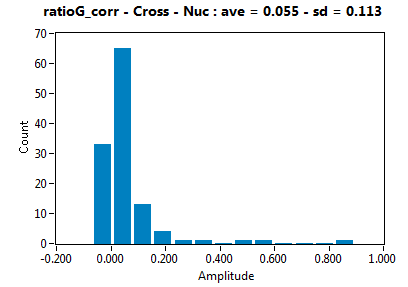

c_corr [nM] - Ch1 - Nuc : ave = 1515.195 - sd = 1365.818ratioG_corr - Cross - Nuc : ave = 0.055 - sd = 0.113r = 0.281 - r^2 = 0.079

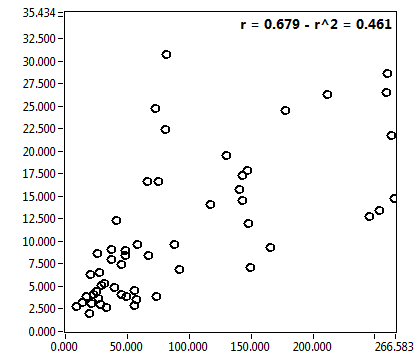

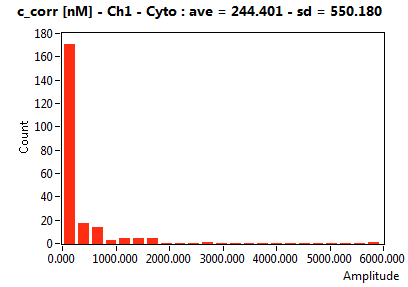

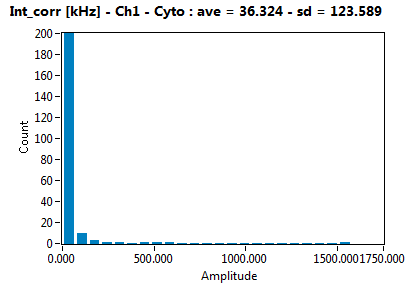

c_corr [nM] - Ch1 - Cyto : ave = 244.401 - sd = 550.180Int_corr [kHz] - Ch1 - Cyto : ave = 36.324 - sd = 123.589r = 0.679 - r^2 = 0.461

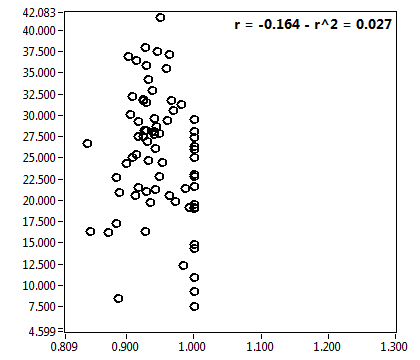

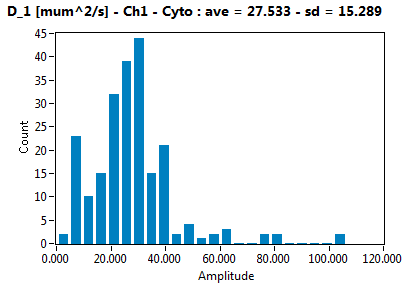

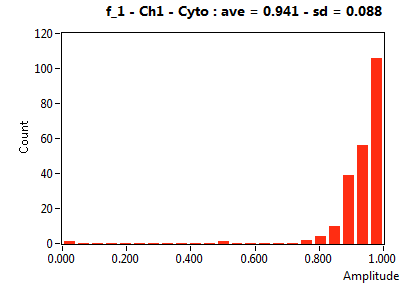

f_1 - Ch1 - Cyto : ave = 0.941 - sd = 0.088D_1 [mum^2/s] - Ch1 - Cyto : ave = 27.533 - sd = 15.289r = -0.164 - r^2 = 0.027

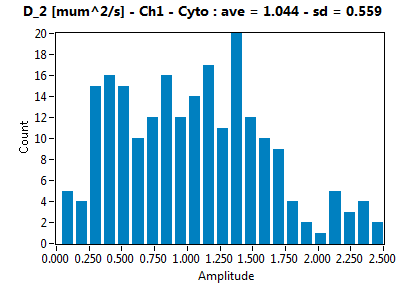

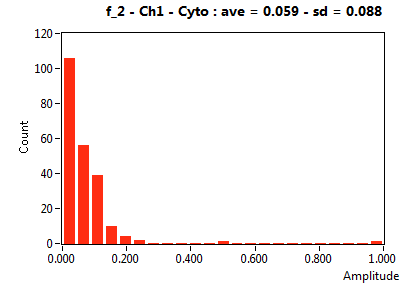

f_2 - Ch1 - Cyto : ave = 0.059 - sd = 0.088D_2 [mum^2/s] - Ch1 - Cyto : ave = 1.044 - sd = 0.559r = 0.076 - r^2 = 0.006

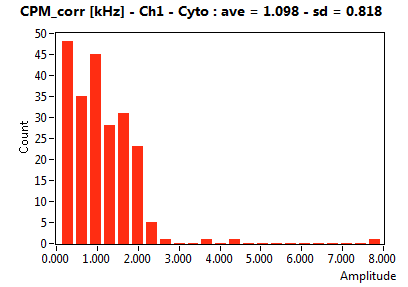

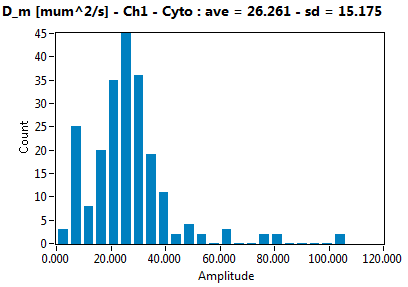

CPM_corr [kHz] - Ch1 - Cyto : ave = 1.098 - sd = 0.818D_m [mum^2/s] - Ch1 - Cyto : ave = 26.261 - sd = 15.175r = 0.376 - r^2 = 0.141
