Automated F(C)CS analysis of clone # 2318

Created on 12/08/2014
Back to overview

Gene and protein information

Clone # 2318
Gene symbol: ZSCAN22
Description: zinc finger and SCAN domain containing 22
Molecular weight (with FP): 81.6 kDa
Localisation: granular nucleus, dim nucleoli, no speckles, no cytoplasm

Image and FCS data

Images Ch1 (EYFP construct), Ch2 (H2B-mCherry) with measurement points

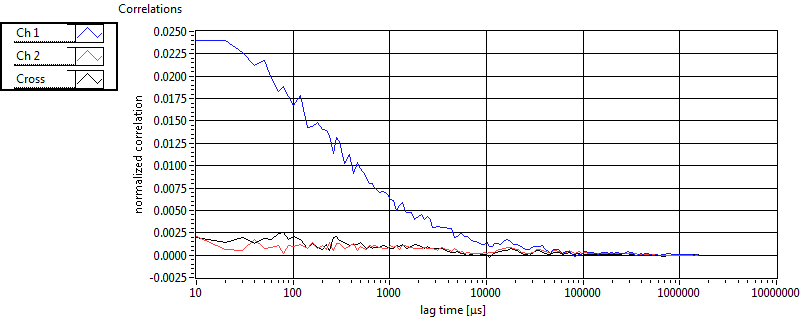

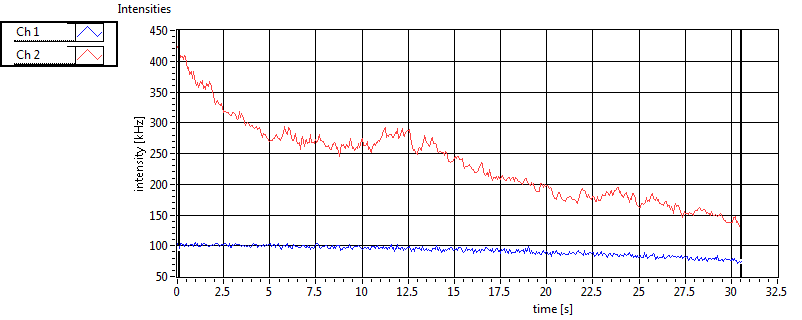

Point 1, intensity traces and correlation functions

Point 2, intensity traces and correlation functions

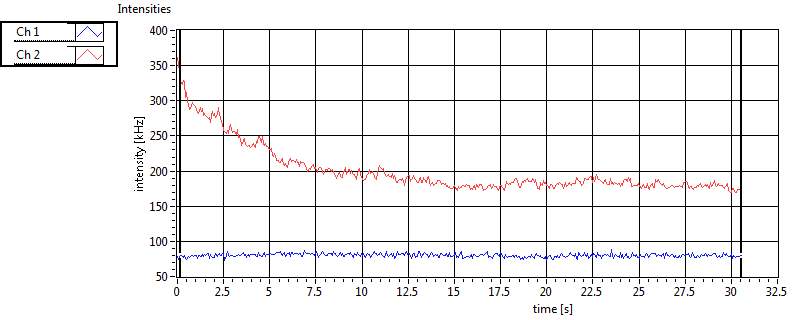

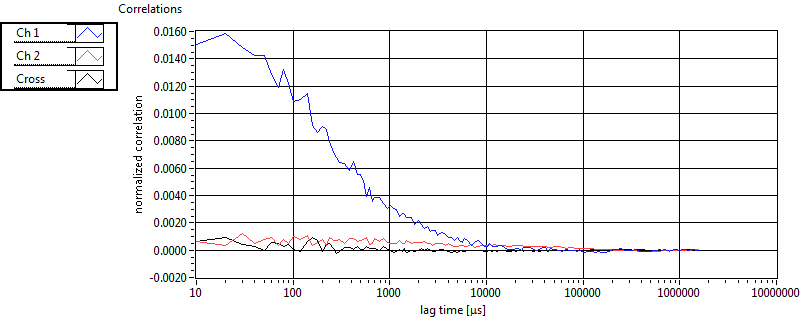

Point 3, intensity traces and correlation functions

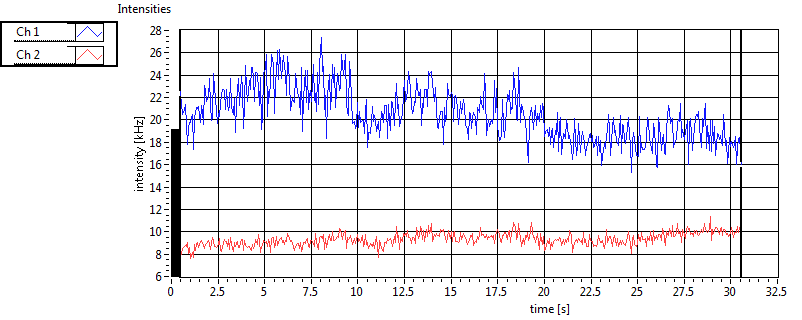

Point 4, intensity traces and correlation functions

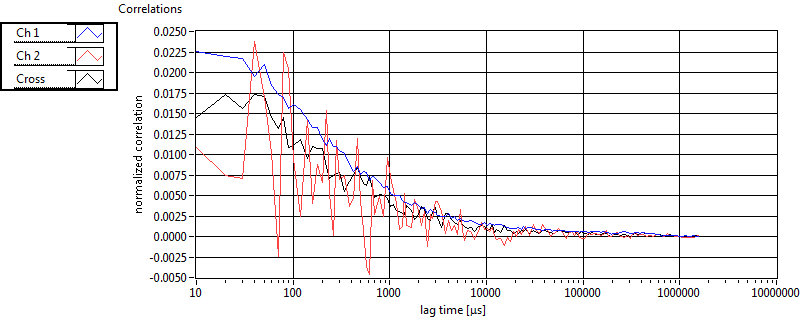

Point 5, intensity traces and correlation functions

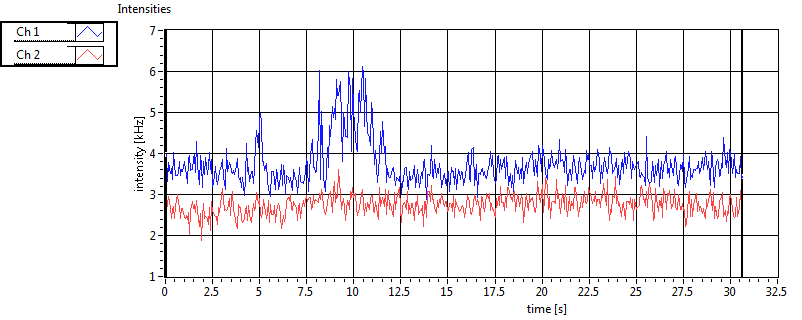

Point 6, intensity traces and correlation functions

Sessions

1 20111117\U02--V01--2318
2 20111125\U02--V01--2318
3 20111129\U02--V01--2318
4 20111206\U02--V01--2318
5 20120127\U01--V00--2318

Results table

Ch1 ave
Nuc		 Ch1 sd
Nuc		 Ch2 ave
Nuc		 Ch2 sd
Nuc		 Cross ave
Nuc		 Cross sd
Nuc		 Ch1 ave
Cyto		 Ch1 sd
Cyto		 Ch2 ave
Cyto		 Ch2 sd
Cyto		 Cross ave
Cyto		 Cross sd
Cyto
N 9.590E+1 4.194E+1 9.266E+2 4.763E+2 1.333E+1 1.383E+1 3.773E+1 5.065E+1 3.172E+2 2.106E+2 1.866E+1 2.179E+1
N_corr 1.122E+2 7.393E+1 1.246E+3 8.311E+2 2.419E+1 7.401E+1 4.296E+1 5.616E+1 4.129E+2 3.216E+2 3.127E+1 5.037E+1
c [nM] 5.964E+2 2.608E+2 4.298E+3 2.209E+3 6.851E+1 7.112E+1 2.346E+2 3.150E+2 1.471E+3 9.768E+2 9.591E+1 1.120E+2
c_corr [nM] 6.980E+2 4.598E+2 5.778E+3 3.855E+3 1.244E+2 3.805E+2 2.672E+2 3.493E+2 1.915E+3 1.492E+3 1.608E+2 2.589E+2
ratioG 1.149E-1 7.723E-2 3.665E-1 2.595E-1
ratioG_corr 2.972E-2 9.140E-2 1.061E-1 5.341E-2
f_1 8.135E-1 1.625E-1 4.025E-1 2.145E-1 9.399E-1 1.128E-1 9.049E-1 7.955E-2 7.364E-1 2.796E-1 9.551E-1 6.686E-2
tauD_1 [ms] 2.461E+0 1.952E+0 1.860E+0 4.441E-16 2.025E+0 1.570E+0 4.084E-1 3.390E-1 1.860E+0 4.441E-16 1.149E+0 1.080E+0
D_1 [mum^2/s] 8.975E+0 9.414E+0 6.926E+0 8.882E-16 1.428E+1 2.230E+1 3.492E+1 1.592E+1 6.926E+0 0.000E+0 3.834E+1 3.721E+1
alpha_1 9.877E-1 9.297E-2 9.200E-1 0.000E+0 8.478E-1 2.025E-1 1.021E+0 1.029E-1 9.200E-1 0.000E+0 8.897E-1 2.021E-1
f_2 1.865E-1 1.625E-1 5.975E-1 2.145E-1 6.013E-2 1.128E-1 9.511E-2 7.955E-2 2.636E-1 2.796E-1 4.493E-2 6.686E-2
tauD_2 [ms] 3.259E+1 2.831E+1 9.055E+1 1.250E+2 8.785E+1 8.137E+1 2.410E+1 5.166E+1 1.170E+2 1.637E+2 4.847E+1 3.610E+1
D_2 [mum^2/s] 5.648E-1 4.913E-1 7.147E-1 1.025E+0 2.273E-1 1.996E-1 1.144E+0 1.444E+0 7.154E-1 1.093E+0 4.857E-1 3.856E-1
alpha_2 1.373E+0 3.048E-1 1.302E+0 3.394E-1 1.208E+0 2.820E-1 1.072E+0 1.580E-1 1.226E+0 4.162E-1 9.734E-1 2.018E-1
tauD_m [ms] 8.016E+0 7.824E+0 5.110E+1 6.993E+1 9.183E+0 2.267E+1 4.515E+0 1.787E+1 3.384E+1 4.997E+1 4.935E+0 6.802E+0
D_m [mum^2/s] 7.521E+0 8.738E+0 3.322E+0 1.197E+0 1.324E+1 2.032E+1 3.186E+1 1.453E+1 5.453E+0 1.318E+0 3.760E+1 3.716E+1
R [1/s] 2.318E+1 3.724E+1 4.396E+1 5.527E+1
CPM [kHz] 1.717E+0 5.593E-1 4.151E-1 3.639E-1 1.065E+0 5.580E-1 3.241E-1 1.850E-1
CPM_corr [kHz] 1.741E+0 5.576E-1 4.902E-1 4.235E-1 1.166E+0 5.440E-1 6.621E-1 5.638E-1
Int [kHz] 1.784E+2 1.046E+2 1.921E+2 5.860E+1 4.606E+1 7.179E+1 6.945E+1 4.587E+1
Int_corr [kHz] 2.025E+2 1.181E+2 2.912E+2 1.015E+2 5.461E+1 8.076E+1 1.090E+2 7.316E+1
# samples 155 155 133 133 117 117 106 106 14 14 10 10
# cells 71

Histograms

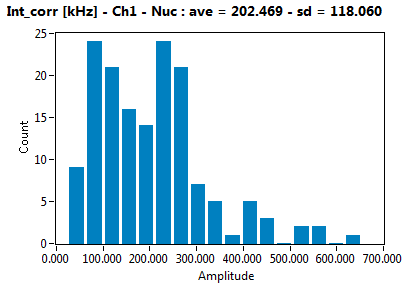

c_corr [nM] - Ch1 - Nuc : ave = 697.999 - sd = 459.793Int_corr [kHz] - Ch1 - Nuc : ave = 202.469 - sd = 118.060r = 0.766 - r^2 = 0.587

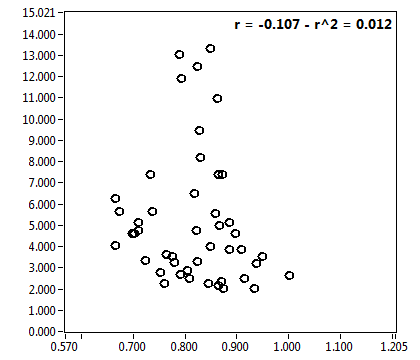

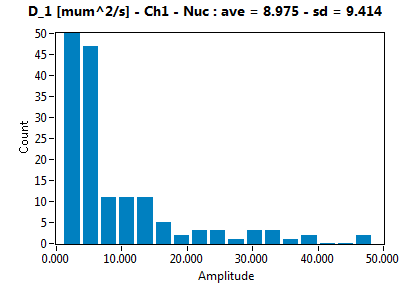

f_1 - Ch1 - Nuc : ave = 0.814 - sd = 0.162D_1 [mum^2/s] - Ch1 - Nuc : ave = 8.975 - sd = 9.414r = -0.107 - r^2 = 0.012

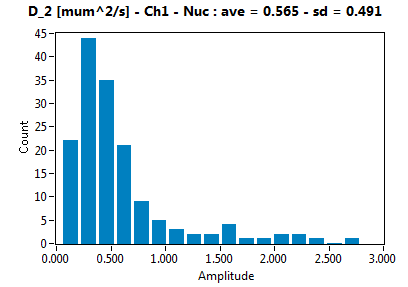

f_2 - Ch1 - Nuc : ave = 0.186 - sd = 0.162D_2 [mum^2/s] - Ch1 - Nuc : ave = 0.565 - sd = 0.491r = -0.073 - r^2 = 0.005
CPM_corr [kHz] - Ch1 - Nuc : ave = 1.741 - sd = 0.558D_m [mum^2/s] - Ch1 - Nuc : ave = 7.521 - sd = 8.738r = -0.261 - r^2 = 0.068
c_corr [nM] - Ch1 - Nuc : ave = 697.999 - sd = 459.793ratioG_corr - Cross - Nuc : ave = 0.030 - sd = 0.091r = 0.013 - r^2 = 0.000

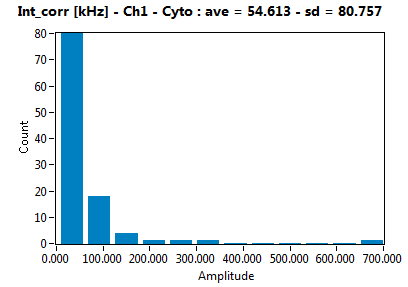

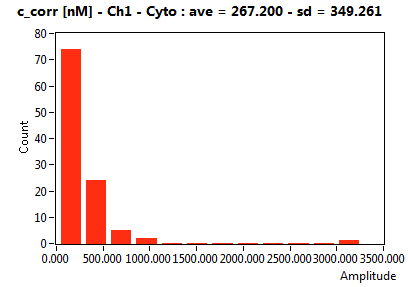

c_corr [nM] - Ch1 - Cyto : ave = 267.200 - sd = 349.261Int_corr [kHz] - Ch1 - Cyto : ave = 54.613 - sd = 80.757r = 0.616 - r^2 = 0.379

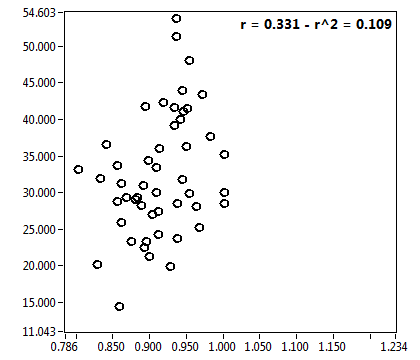

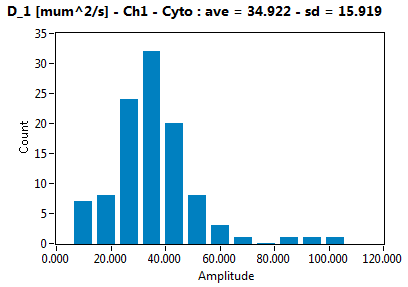

f_1 - Ch1 - Cyto : ave = 0.905 - sd = 0.080D_1 [mum^2/s] - Ch1 - Cyto : ave = 34.922 - sd = 15.919r = 0.331 - r^2 = 0.109

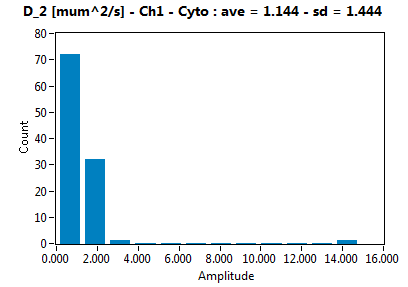

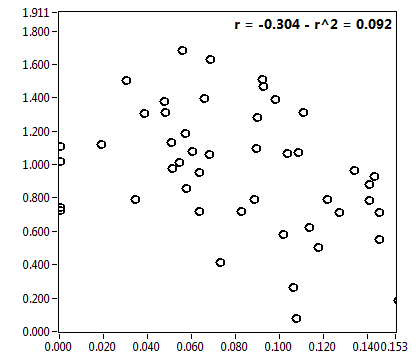

f_2 - Ch1 - Cyto : ave = 0.095 - sd = 0.080D_2 [mum^2/s] - Ch1 - Cyto : ave = 1.144 - sd = 1.444r = -0.304 - r^2 = 0.092

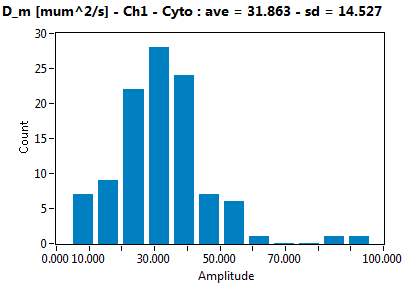

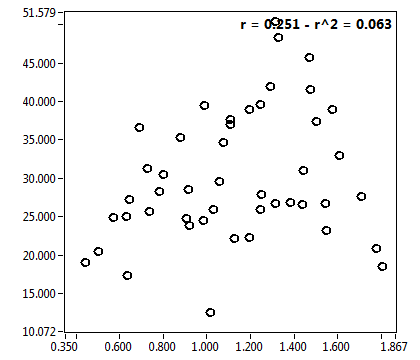

CPM_corr [kHz] - Ch1 - Cyto : ave = 1.166 - sd = 0.544D_m [mum^2/s] - Ch1 - Cyto : ave = 31.863 - sd = 14.527r = 0.251 - r^2 = 0.063
