Automated F(C)CS analysis of clone # 1431

Created on 12/08/2014
Back to overview

Gene and protein information

Clone # 1431
Gene symbol: MED23
Description: mediator complex subunit 23
Molecular weight (with FP): 183.5 kDa
Localisation: homogeneous nucleus, dim nucleoli, no speckles, no cytoplasm

Image and FCS data

Images Ch1 (EYFP construct), Ch2 (H2B-mCherry) with measurement points


Point 1, intensity traces and correlation functions

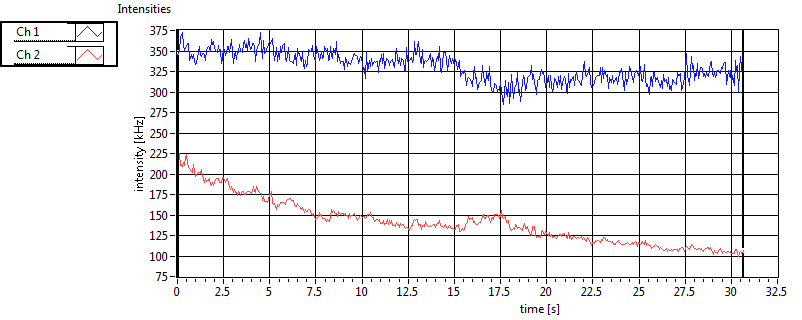

Point 2, intensity traces and correlation functions

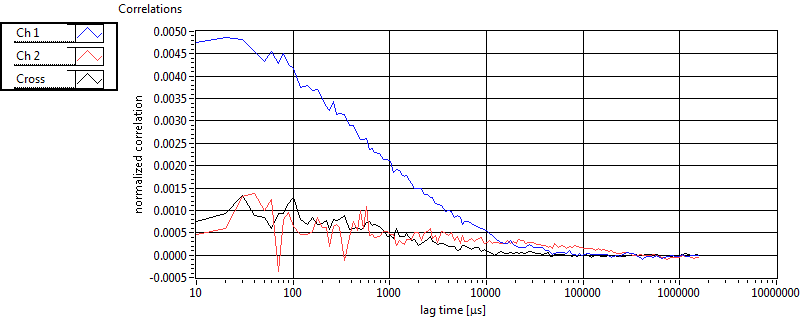

Point 3, intensity traces and correlation functions

Point 4, intensity traces and correlation functions

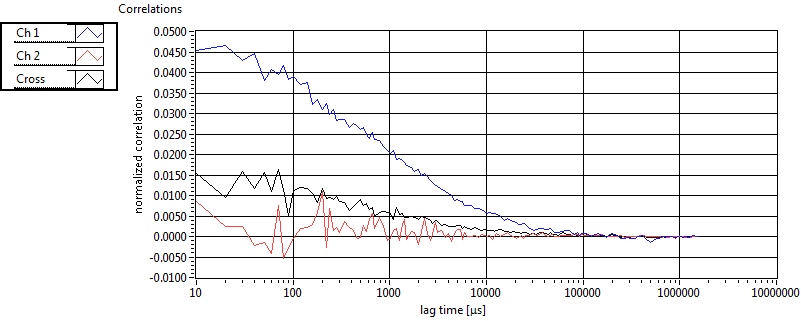

Point 5, intensity traces and correlation functions

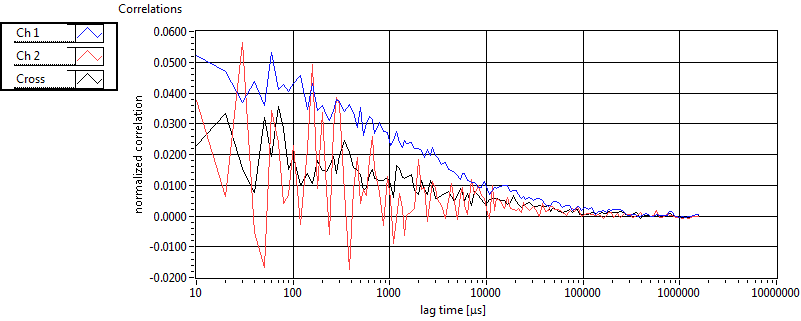

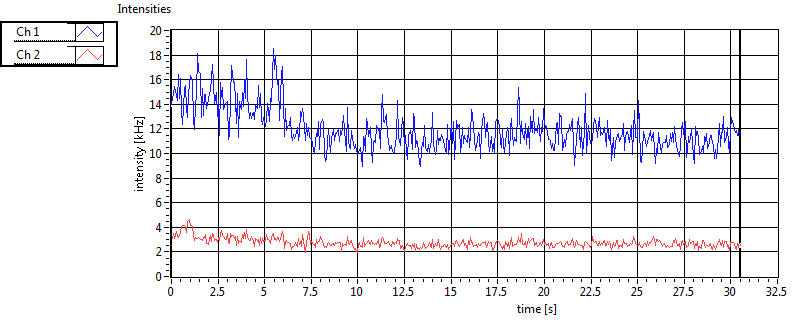

Point 6, intensity traces and correlation functions

Sessions

1 20111111\U01--V00--1431
2 20111115\U01--V00--1431
3 20111116\U01--V00--1431
4 20111209\U03--V00--1431
5 20120117\U02--V00--1431
6 20120214\U02--V00--1431
7 20120229\U00--V00--1431

Results table

Ch1 ave
Nuc		 Ch1 sd
Nuc		 Ch2 ave
Nuc		 Ch2 sd
Nuc		 Cross ave
Nuc		 Cross sd
Nuc		 Ch1 ave
Cyto		 Ch1 sd
Cyto		 Ch2 ave
Cyto		 Ch2 sd
Cyto		 Cross ave
Cyto		 Cross sd
Cyto
N 1.329E+2 7.969E+1 1.288E+3 5.738E+2 1.952E+1 2.141E+1 2.578E+1 2.468E+1 2.323E+2 2.681E+2 1.048E+1 8.051E+0
N_corr 1.384E+2 8.354E+1 1.795E+3 9.427E+2 2.186E+1 2.486E+1 2.502E+1 2.462E+1 3.070E+2 4.655E+2 1.159E+1 9.064E+0
c [nM] 8.263E+2 4.956E+2 5.976E+3 2.662E+3 1.004E+2 1.101E+2 1.603E+2 1.535E+2 1.078E+3 1.243E+3 5.387E+1 4.139E+1
c_corr [nM] 8.606E+2 5.196E+2 8.327E+3 4.373E+3 1.124E+2 1.278E+2 1.556E+2 1.531E+2 1.424E+3 2.159E+3 5.959E+1 4.660E+1
ratioG 1.130E-1 6.470E-2 3.585E-1 2.196E-1
ratioG_corr 8.724E-3 3.896E-2 8.897E-2 6.224E-2
f_1 8.863E-1 1.557E-1 4.293E-1 2.253E-1 9.848E-1 4.312E-2 8.337E-1 2.008E-1 8.348E-1 2.663E-1 9.601E-1 7.340E-2
tauD_1 [ms] 1.125E+0 5.868E-1 1.860E+0 4.441E-16 8.127E-1 6.195E-1 9.325E-1 1.118E+0 1.860E+0 2.220E-16 7.673E-1 6.617E-1
D_1 [mum^2/s] 1.152E+1 5.950E+0 6.926E+0 4.441E-15 2.648E+1 2.429E+1 1.693E+1 9.244E+0 6.926E+0 8.882E-16 3.171E+1 2.373E+1
alpha_1 9.166E-1 1.011E-1 9.200E-1 2.096E-4 9.013E-1 2.069E-1 8.581E-1 1.285E-1 9.200E-1 1.110E-16 9.067E-1 2.261E-1
f_2 1.137E-1 1.557E-1 5.707E-1 2.253E-1 1.521E-2 4.312E-2 1.663E-1 2.008E-1 1.652E-1 2.663E-1 3.994E-2 7.340E-2
tauD_2 [ms] 1.761E+1 1.074E+1 7.573E+1 8.865E+1 5.583E+1 3.981E+1 1.307E+1 1.557E+1 7.739E+1 1.645E+2 4.038E+1 5.964E+1
D_2 [mum^2/s] 8.808E-1 1.323E+0 5.216E-1 6.615E-1 3.353E-1 4.678E-1 5.467E+0 8.116E+0 7.006E-1 9.850E-1 6.077E-1 3.971E-1
alpha_2 1.172E+0 2.080E-1 1.258E+0 2.756E-1 1.093E+0 1.163E-1 1.143E+0 1.676E-1 1.180E+0 3.442E-1 1.134E+0 2.152E-1
tauD_m [ms] 2.681E+0 2.576E+0 4.235E+1 5.484E+1 1.955E+0 7.110E+0 1.750E+0 2.917E+0 1.617E+1 3.969E+1 4.601E+0 1.708E+1
D_m [mum^2/s] 9.942E+0 3.626E+0 3.301E+0 1.401E+0 2.603E+1 2.371E+1 1.717E+1 8.495E+0 6.047E+0 1.319E+0 3.029E+1 2.260E+1
R [1/s] 6.752E+1 1.829E+2 6.699E+2 1.074E+3
CPM [kHz] 1.459E+0 3.604E-1 3.202E-1 2.568E-1 1.068E+0 5.001E-1 2.245E-1 2.314E-1
CPM_corr [kHz] 1.478E+0 3.610E-1 3.841E-1 3.072E-1 -6.156E-1 3.858E+1 5.082E-1 3.355E-1
Int [kHz] 2.091E+2 1.216E+2 1.991E+2 5.368E+1 2.772E+1 2.308E+1 4.350E+1 4.649E+1
Int_corr [kHz] 2.199E+2 1.281E+2 3.280E+2 1.088E+2 2.956E+1 2.379E+1 6.932E+1 8.553E+1
# samples 523 523 360 360 339 339 412 412 72 72 60 60
# cells 182

Histograms

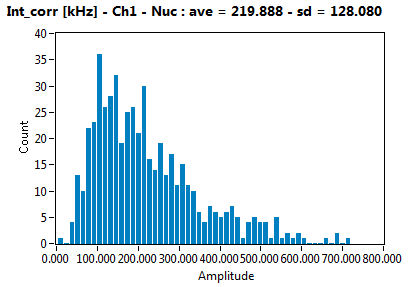

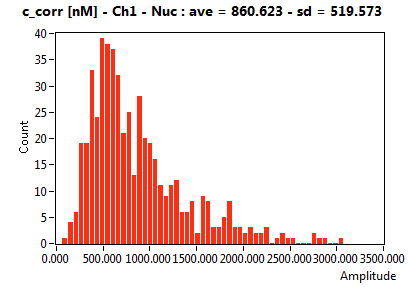

c_corr [nM] - Ch1 - Nuc : ave = 860.623 - sd = 519.573Int_corr [kHz] - Ch1 - Nuc : ave = 219.888 - sd = 128.080r = 0.831 - r^2 = 0.691

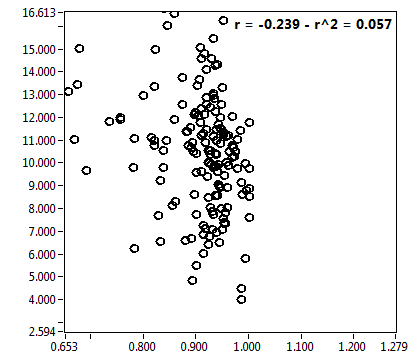

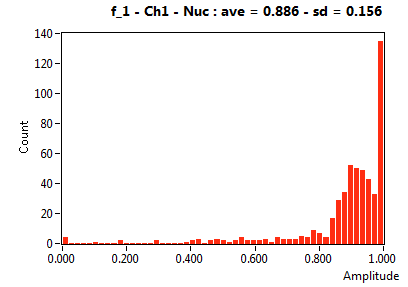

f_1 - Ch1 - Nuc : ave = 0.886 - sd = 0.156D_1 [mum^2/s] - Ch1 - Nuc : ave = 11.520 - sd = 5.950r = -0.239 - r^2 = 0.057

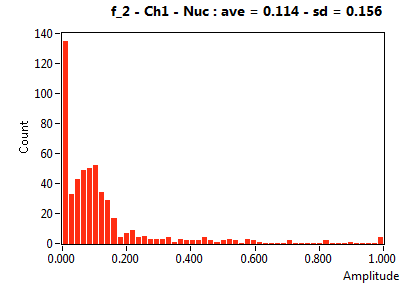

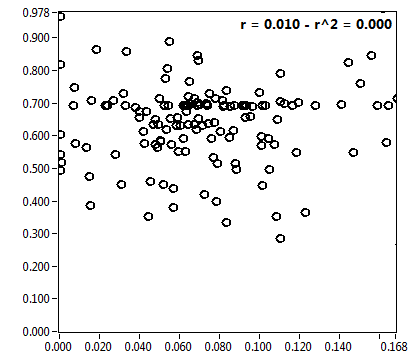

f_2 - Ch1 - Nuc : ave = 0.114 - sd = 0.156D_2 [mum^2/s] - Ch1 - Nuc : ave = 0.881 - sd = 1.323r = 0.010 - r^2 = 0.000

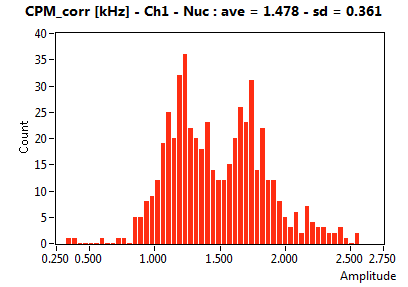

CPM_corr [kHz] - Ch1 - Nuc : ave = 1.478 - sd = 0.361D_m [mum^2/s] - Ch1 - Nuc : ave = 9.942 - sd = 3.626r = 0.201 - r^2 = 0.040

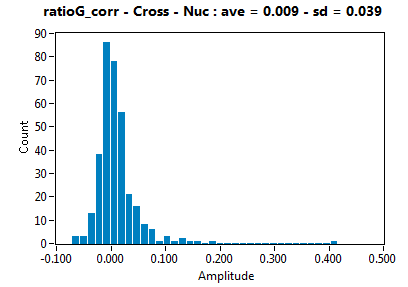

c_corr [nM] - Ch1 - Nuc : ave = 860.623 - sd = 519.573ratioG_corr - Cross - Nuc : ave = 0.009 - sd = 0.039r = 0.103 - r^2 = 0.011

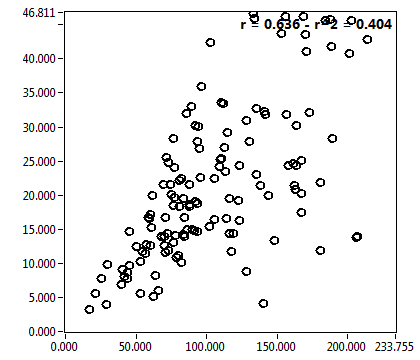

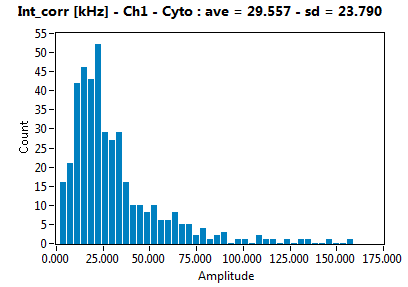

c_corr [nM] - Ch1 - Cyto : ave = 155.626 - sd = 153.087Int_corr [kHz] - Ch1 - Cyto : ave = 29.557 - sd = 23.790r = 0.636 - r^2 = 0.404
f_1 - Ch1 - Cyto : ave = 0.834 - sd = 0.201D_1 [mum^2/s] - Ch1 - Cyto : ave = 16.929 - sd = 9.244r = 0.549 - r^2 = 0.301

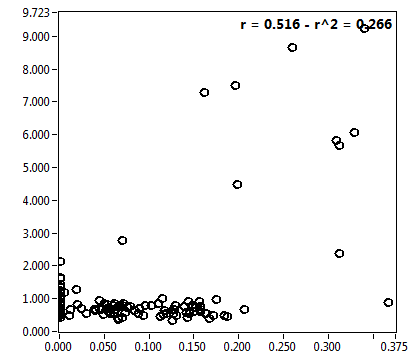

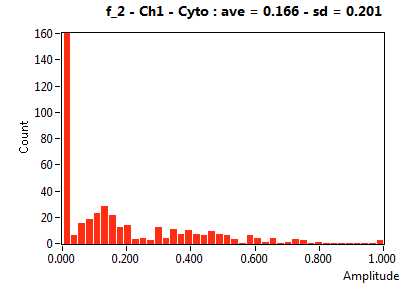

f_2 - Ch1 - Cyto : ave = 0.166 - sd = 0.201D_2 [mum^2/s] - Ch1 - Cyto : ave = 5.467 - sd = 8.116r = 0.516 - r^2 = 0.266

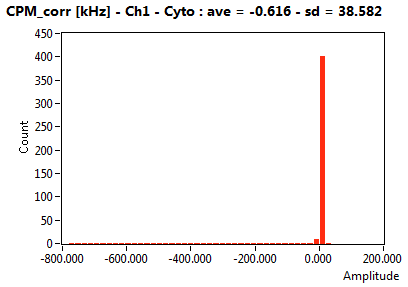

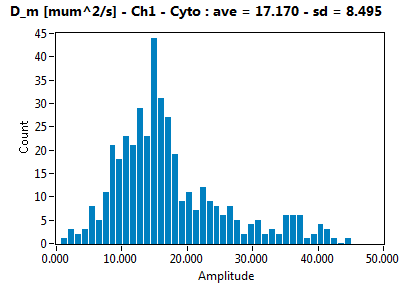

CPM_corr [kHz] - Ch1 - Cyto : ave = -0.616 - sd = 38.582D_m [mum^2/s] - Ch1 - Cyto : ave = 17.170 - sd = 8.495r = 0.042 - r^2 = 0.002
