Automated F(C)CS analysis of clone # 1376

Created on 12/08/2014
Back to overview

Gene and protein information

Clone # 1376
Gene symbol: RPL36
Description: ribosomal protein L36
Molecular weight (with FP): 39.3 kDa
Localisation: homogeneous nucleus, bright nucleoli, no speckles, no cytoplasm

Image and FCS data

Images Ch1 (EYFP construct), Ch2 (H2B-mCherry) with measurement points

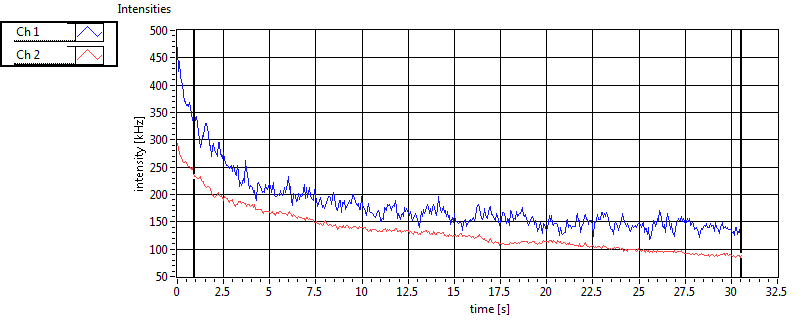

Point 1, intensity traces and correlation functions

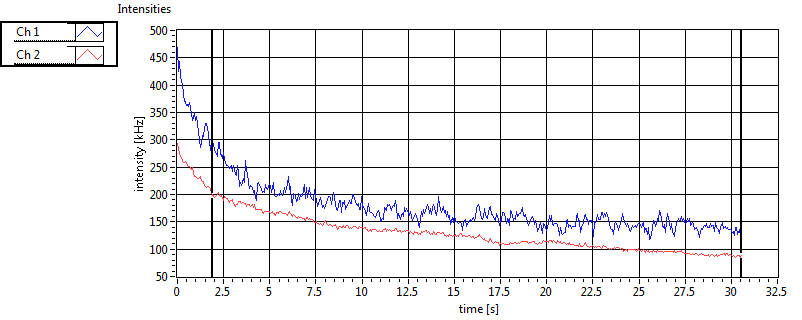

Point 2, intensity traces and correlation functions

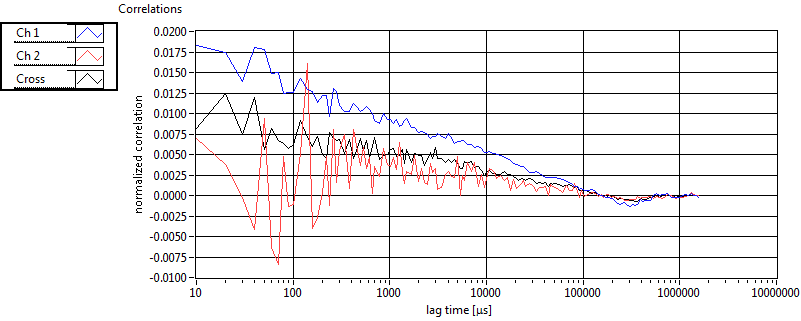

Point 3, intensity traces and correlation functions

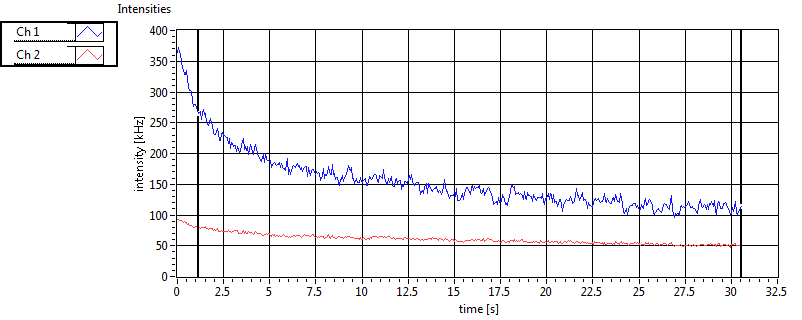

Point 4, intensity traces and correlation functions

Point 5, intensity traces and correlation functions

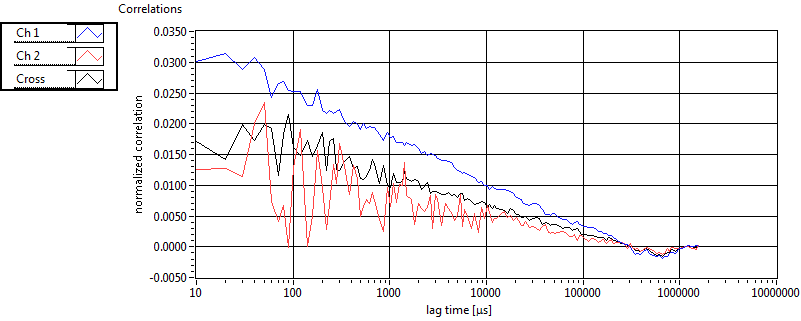

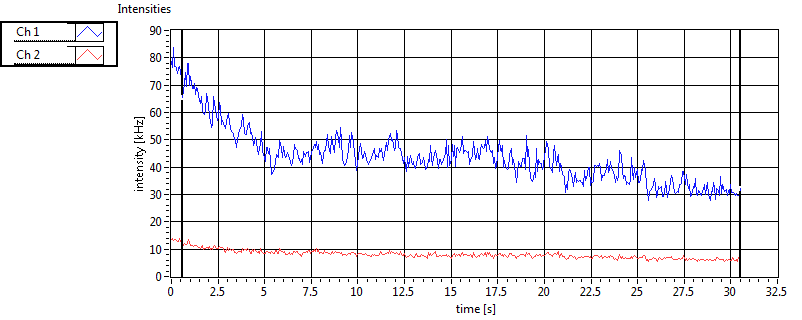

Point 6, intensity traces and correlation functions

Sessions

1 20110902\U01--V00--1376
2 20110906\U03--V00--1376
3 20110907\U02--V00--1376
4 20110908\U02--V00--1376

Results table

Ch1 ave
Nuc		 Ch1 sd
Nuc		 Ch2 ave
Nuc		 Ch2 sd
Nuc		 Cross ave
Nuc		 Cross sd
Nuc		 Ch1 ave
Cyto		 Ch1 sd
Cyto		 Ch2 ave
Cyto		 Ch2 sd
Cyto		 Cross ave
Cyto		 Cross sd
Cyto
N 1.523E+2 2.138E+2 9.845E+2 4.637E+2 2.807E+1 4.962E+1 4.242E+1 3.551E+1 2.107E+2 1.700E+2 2.639E+1 2.399E+1
N_corr 2.043E+2 2.889E+2 1.470E+3 7.711E+2 3.736E+1 7.118E+1 5.533E+1 5.188E+1 2.473E+2 3.544E+2 5.000E+1 4.947E+1
c [nM] 9.474E+2 1.329E+3 4.567E+3 2.151E+3 1.443E+2 2.551E+2 2.638E+2 2.208E+2 9.775E+2 7.883E+2 1.357E+2 1.233E+2
c_corr [nM] 1.271E+3 1.797E+3 6.820E+3 3.576E+3 1.921E+2 3.660E+2 3.441E+2 3.226E+2 1.147E+3 1.644E+3 2.570E+2 2.543E+2
ratioG 1.273E-1 9.184E-2 4.673E-1 2.587E-1
ratioG_corr 2.320E-2 3.606E-2 9.731E-2 8.469E-2
f_1 7.963E-1 1.314E-1 3.914E-1 1.940E-1 9.627E-1 8.851E-2 7.749E-1 9.634E-2 1.000E+0 0.000E+0 8.660E-1 1.123E-1
tauD_1 [ms] 2.253E+0 2.390E+0 1.905E+0 9.987E-2 1.025E+0 7.300E-1 2.070E+0 1.365E+0 6.811E+0 1.062E+1 1.735E+0 2.567E+0
D_1 [mum^2/s] 7.781E+0 4.713E+0 6.781E+0 3.574E-1 2.285E+1 2.428E+1 8.159E+0 6.784E+0 7.069E+0 1.692E+1 1.515E+1 1.735E+1
alpha_1 9.711E-1 1.907E-1 9.305E-1 9.987E-3 7.920E-1 2.084E-1 9.107E-1 1.814E-1 8.045E-1 2.375E-1 7.375E-1 2.229E-1
f_2 2.037E-1 1.314E-1 6.086E-1 1.940E-1 3.727E-2 8.851E-2 2.251E-1 9.634E-2 0.000E+0 0.000E+0 1.340E-1 1.123E-1
tauD_2 [ms] 3.853E+1 3.927E+1 1.129E+2 1.057E+2 7.370E+1 6.807E+1 4.924E+1 3.815E+1 5.000E+0 0.000E+0 6.970E+1 4.457E+1
D_2 [mum^2/s] 4.409E-1 2.348E-1 3.129E-1 4.274E-1 3.047E-1 3.902E-1 3.160E-1 1.998E-1 2.576E+0 4.441E-16 2.238E-1 1.091E-1
alpha_2 1.448E+0 3.347E-1 1.330E+0 3.139E-1 1.145E+0 2.319E-1 1.396E+0 3.345E-1 1.089E+0 6.298E-2 1.421E+0 3.461E-1
tauD_m [ms] 1.083E+1 1.309E+1 7.242E+1 7.975E+1 6.192E+0 2.349E+1 1.234E+1 1.153E+1 6.811E+0 1.062E+1 1.195E+1 1.720E+1
D_m [mum^2/s] 6.413E+0 4.044E+0 2.843E+0 1.185E+0 2.227E+1 2.427E+1 6.481E+0 5.726E+0 7.069E+0 1.692E+1 1.248E+1 1.281E+1
R [1/s] 3.867E+1 2.593E+1 0.000E+0 0.000E+0
CPM [kHz] 1.229E+0 3.785E-1 3.921E-1 3.420E-1 9.715E-1 4.611E-1 2.176E-1 1.977E-1
CPM_corr [kHz] 1.274E+0 3.670E-1 4.492E-1 3.755E-1 1.067E+0 4.614E-1 6.901E-1 4.290E-1
Int [kHz] 1.775E+2 2.306E+2 1.346E+2 3.467E+1 4.153E+1 3.649E+1 3.565E+1 3.171E+1
Int_corr [kHz] 2.311E+2 2.910E+2 2.291E+2 6.524E+1 5.696E+1 5.077E+1 5.898E+1 6.368E+1
# samples 204 204 99 99 63 63 366 366 61 61 54 54
# cells 107

Histograms


c_corr [nM] - Ch1 - Nuc : ave = 1270.771 - sd = 1796.672Int_corr [kHz] - Ch1 - Nuc : ave = 231.106 - sd = 291.000r = 0.913 - r^2 = 0.833

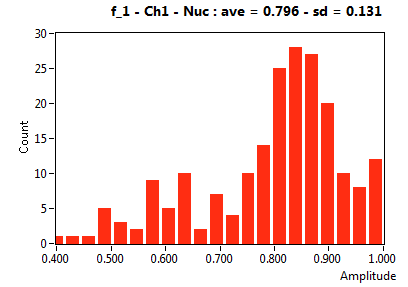

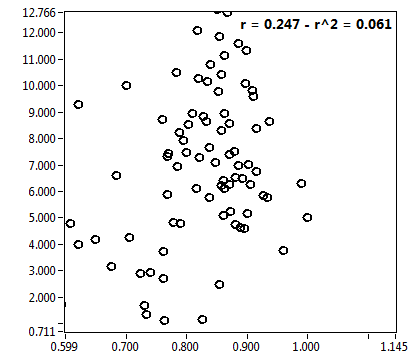

f_1 - Ch1 - Nuc : ave = 0.796 - sd = 0.131D_1 [mum^2/s] - Ch1 - Nuc : ave = 7.781 - sd = 4.713r = 0.247 - r^2 = 0.061

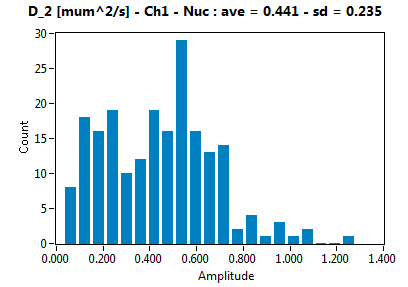

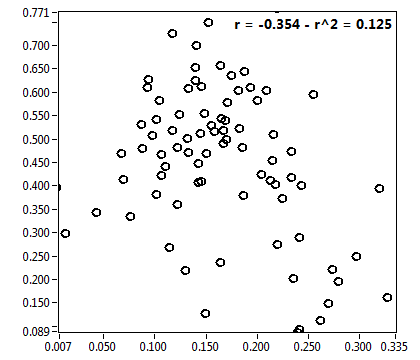

f_2 - Ch1 - Nuc : ave = 0.204 - sd = 0.131D_2 [mum^2/s] - Ch1 - Nuc : ave = 0.441 - sd = 0.235r = -0.354 - r^2 = 0.125

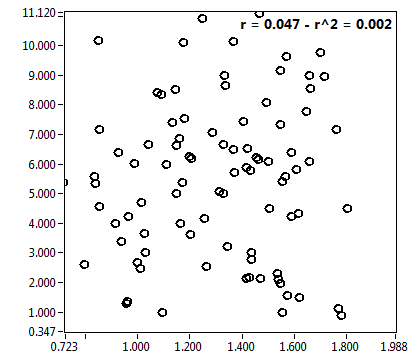

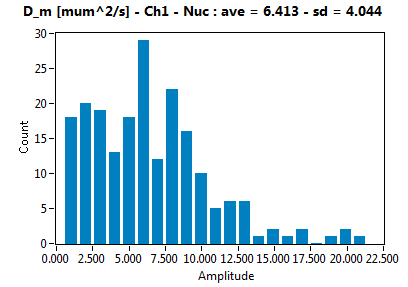

CPM_corr [kHz] - Ch1 - Nuc : ave = 1.274 - sd = 0.367D_m [mum^2/s] - Ch1 - Nuc : ave = 6.413 - sd = 4.044r = 0.047 - r^2 = 0.002

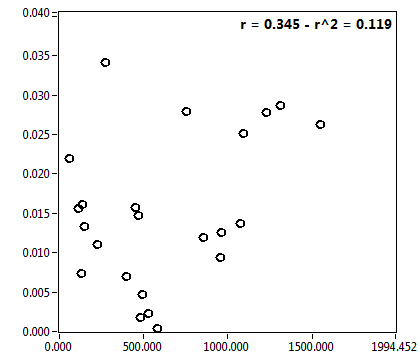

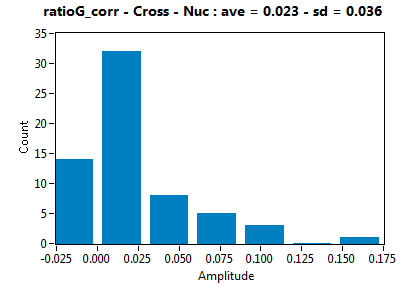

c_corr [nM] - Ch1 - Nuc : ave = 1270.771 - sd = 1796.672ratioG_corr - Cross - Nuc : ave = 0.023 - sd = 0.036r = 0.345 - r^2 = 0.119

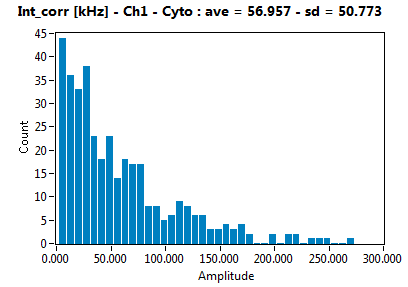

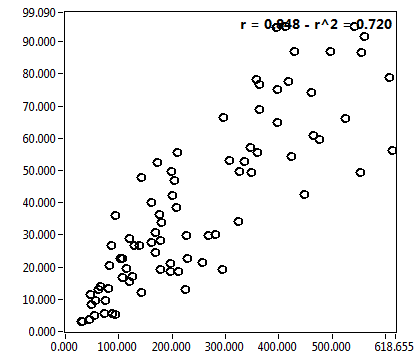

c_corr [nM] - Ch1 - Cyto : ave = 344.134 - sd = 322.626Int_corr [kHz] - Ch1 - Cyto : ave = 56.957 - sd = 50.773r = 0.848 - r^2 = 0.720

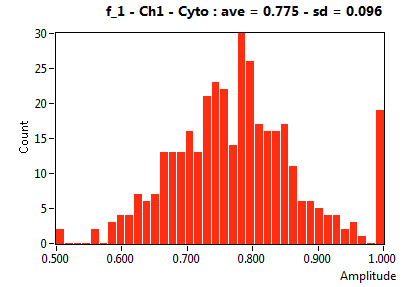

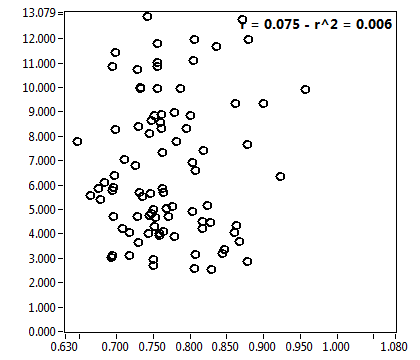

f_1 - Ch1 - Cyto : ave = 0.775 - sd = 0.096D_1 [mum^2/s] - Ch1 - Cyto : ave = 8.159 - sd = 6.784r = 0.075 - r^2 = 0.006
f_2 - Ch1 - Cyto : ave = 0.225 - sd = 0.096D_2 [mum^2/s] - Ch1 - Cyto : ave = 0.316 - sd = 0.200r = 0.123 - r^2 = 0.015

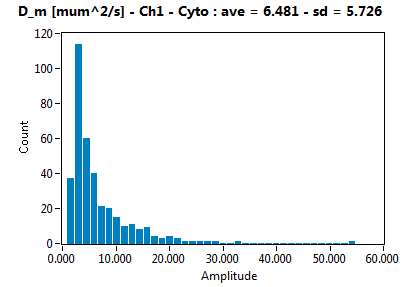

CPM_corr [kHz] - Ch1 - Cyto : ave = 1.067 - sd = 0.461D_m [mum^2/s] - Ch1 - Cyto : ave = 6.481 - sd = 5.726r = -0.106 - r^2 = 0.011
