Automated F(C)CS analysis of clone # 0775

Created on 12/08/2014
Back to overview

Gene and protein information

Clone # 0775
Gene symbol: HORMAD1
Description: HORMA domain containing 1
Molecular weight (with FP): 72.2 kDa
Localisation: granular nucleus, dim nucleoli, no speckles, no cytoplasm

Image and FCS data

Images Ch1 (EYFP construct), Ch2 (H2B-mCherry) with measurement points

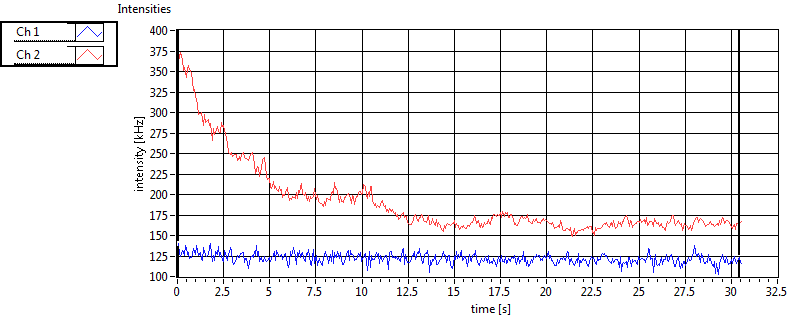

Point 1, intensity traces and correlation functions

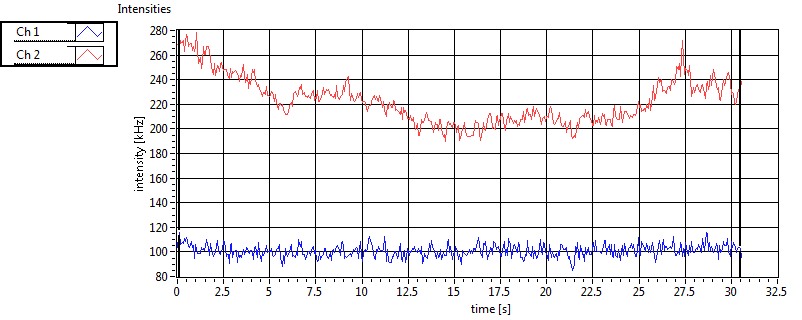

Point 2, intensity traces and correlation functions

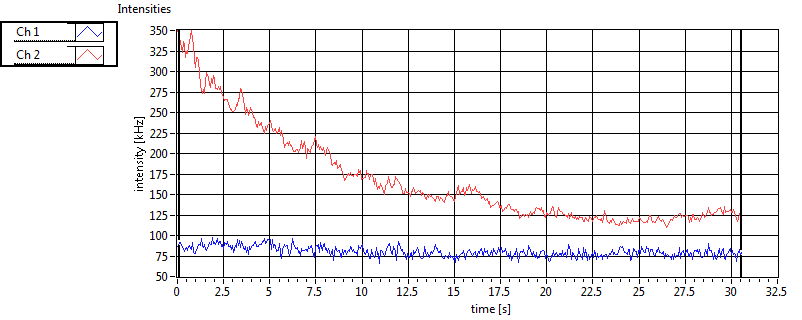

Point 3, intensity traces and correlation functions

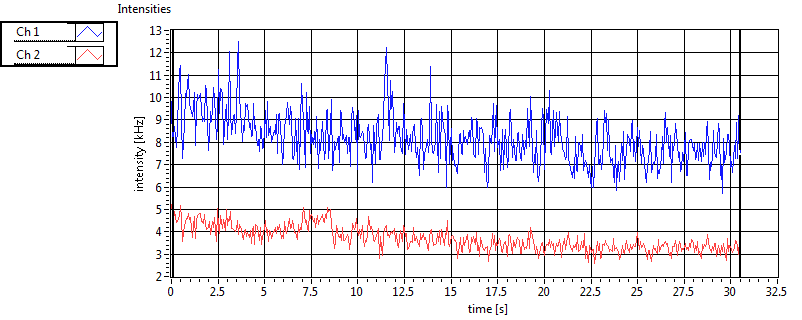

Point 4, intensity traces and correlation functions

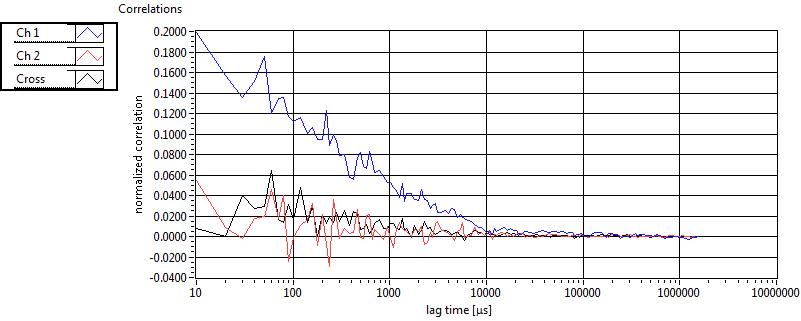

Point 5, intensity traces and correlation functions

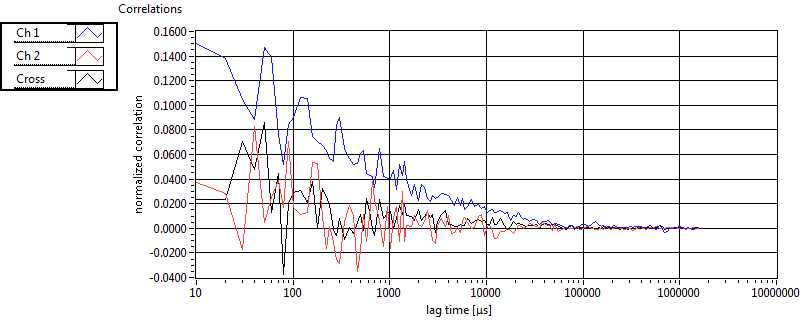

Point 6, intensity traces and correlation functions

Sessions

1 20110915\U02--V00--0775
2 20110916\U02--V00--0775
3 20110922\U02--V00--0775
4 20110930\U03--V00--0775
5 20111011\U02--V00--0775

Results table

Ch1 ave
Nuc		 Ch1 sd
Nuc		 Ch2 ave
Nuc		 Ch2 sd
Nuc		 Cross ave
Nuc		 Cross sd
Nuc		 Ch1 ave
Cyto		 Ch1 sd
Cyto		 Ch2 ave
Cyto		 Ch2 sd
Cyto		 Cross ave
Cyto		 Cross sd
Cyto
N 9.892E+1 5.869E+1 1.145E+3 4.964E+2 9.760E+0 1.314E+1 1.877E+1 1.721E+1 4.273E+2 3.998E+2 9.319E+0 6.753E+0
N_corr 1.086E+2 6.385E+1 1.660E+3 7.606E+2 1.308E+1 1.973E+1 2.088E+1 2.540E+1 7.332E+2 8.209E+2 1.451E+1 1.183E+1
c [nM] 6.152E+2 3.650E+2 5.313E+3 2.302E+3 5.018E+1 6.754E+1 1.167E+2 1.070E+2 1.982E+3 1.854E+3 4.791E+1 3.472E+1
c_corr [nM] 6.755E+2 3.971E+2 7.700E+3 3.528E+3 6.725E+1 1.014E+2 1.299E+2 1.580E+2 3.401E+3 3.807E+3 7.461E+1 6.083E+1
ratioG 6.888E-2 4.797E-2 2.858E-1 1.833E-1
ratioG_corr 1.092E-2 4.476E-2 7.924E-2 7.685E-2
f_1 8.947E-1 5.249E-2 4.194E-1 2.215E-1 9.772E-1 4.755E-2 9.013E-1 5.813E-2 7.387E-1 3.698E-1 9.450E-1 5.507E-2
tauD_1 [ms] 1.351E+0 5.593E-1 1.834E+0 2.979E-2 1.260E+0 1.194E+0 6.393E-1 5.561E-1 1.850E+0 2.236E-2 1.038E+0 7.900E-1
D_1 [mum^2/s] 9.641E+0 5.198E+0 7.028E+0 1.146E-1 2.498E+1 3.066E+1 2.559E+1 1.444E+1 6.964E+0 8.604E-2 2.987E+1 2.620E+1
alpha_1 9.466E-1 8.022E-2 9.200E-1 0.000E+0 8.660E-1 2.444E-1 9.739E-1 1.084E-1 9.200E-1 0.000E+0 1.017E+0 1.982E-1
f_2 1.053E-1 5.249E-2 5.806E-1 2.215E-1 2.285E-2 4.755E-2 9.873E-2 5.813E-2 2.613E-1 3.698E-1 5.500E-2 5.507E-2
tauD_2 [ms] 2.161E+1 1.136E+1 6.645E+1 1.001E+2 9.558E+1 7.909E+1 1.575E+1 1.256E+1 4.817E+1 4.840E+1 3.998E+1 2.393E+1
D_2 [mum^2/s] 5.866E-1 2.262E-1 6.950E-1 8.243E-1 1.775E-1 9.595E-2 9.889E-1 5.539E-1 7.420E-1 7.661E-1 5.305E-1 4.404E-1
alpha_2 1.294E+0 2.868E-1 1.323E+0 3.280E-1 1.116E+0 1.246E-1 1.102E+0 1.332E-1 1.214E+0 1.974E-1 9.525E-1 2.628E-1
tauD_m [ms] 3.528E+0 2.361E+0 3.460E+1 5.145E+1 4.733E+0 1.108E+1 2.295E+0 2.213E+0 8.251E+0 7.998E+0 4.373E+0 4.234E+0
D_m [mum^2/s] 8.634E+0 4.568E+0 3.449E+0 1.201E+0 2.469E+1 3.069E+1 2.329E+1 1.305E+1 5.527E+0 1.809E+0 2.952E+1 2.651E+1
R [1/s] 2.924E+1 2.967E+1 5.866E+1 4.744E+1
CPM [kHz] 1.557E+0 4.541E-1 3.190E-1 2.419E-1 1.215E+0 4.975E-1 2.679E-1 1.610E-1
CPM_corr [kHz] 1.589E+0 4.516E-1 3.534E-1 2.631E-1 1.412E+0 4.820E-1 4.108E-1 1.374E-1
Int [kHz] 1.671E+2 1.013E+2 2.165E+2 6.981E+1 2.687E+1 2.745E+1 9.833E+1 9.683E+1
Int_corr [kHz] 1.843E+2 1.083E+2 3.454E+2 1.192E+2 3.130E+1 3.591E+1 1.982E+2 2.259E+2
# samples 190 190 77 77 62 62 177 177 6 6 4 4
# cells 79

Histograms

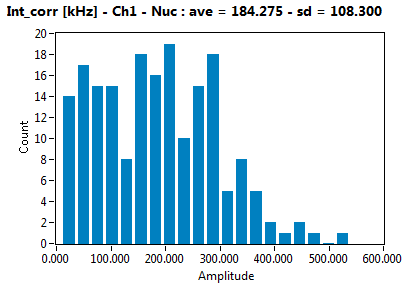

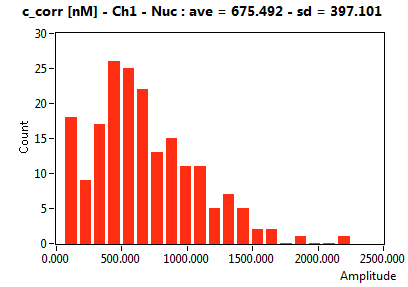

c_corr [nM] - Ch1 - Nuc : ave = 675.492 - sd = 397.101Int_corr [kHz] - Ch1 - Nuc : ave = 184.275 - sd = 108.300r = 0.893 - r^2 = 0.798

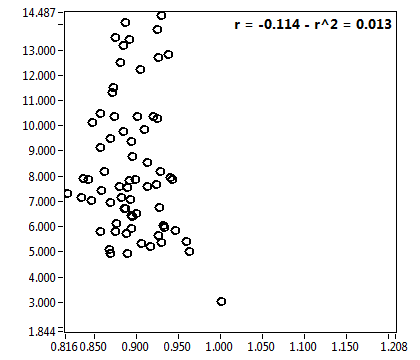

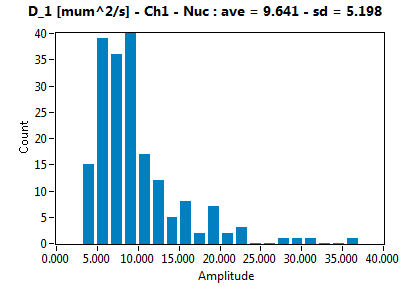

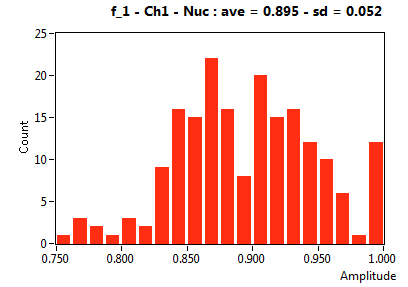

f_1 - Ch1 - Nuc : ave = 0.895 - sd = 0.052D_1 [mum^2/s] - Ch1 - Nuc : ave = 9.641 - sd = 5.198r = -0.114 - r^2 = 0.013

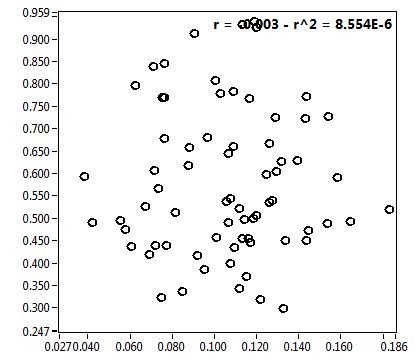

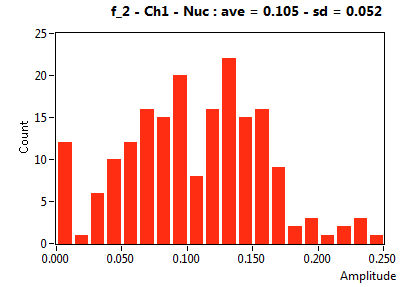

f_2 - Ch1 - Nuc : ave = 0.105 - sd = 0.052D_2 [mum^2/s] - Ch1 - Nuc : ave = 0.587 - sd = 0.226r = -0.003 - r^2 = 8.554E-6

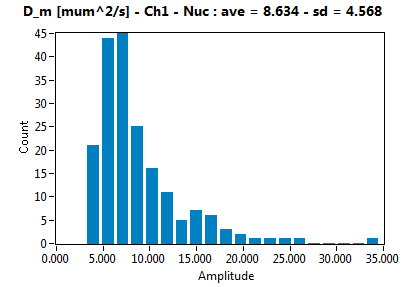

CPM_corr [kHz] - Ch1 - Nuc : ave = 1.589 - sd = 0.452D_m [mum^2/s] - Ch1 - Nuc : ave = 8.634 - sd = 4.568r = 0.015 - r^2 = 0.000

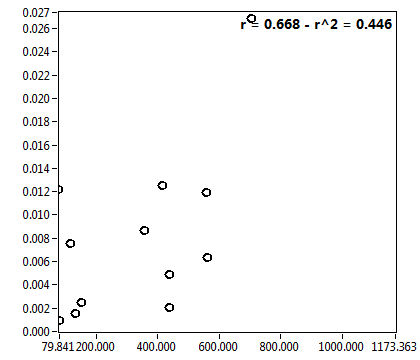

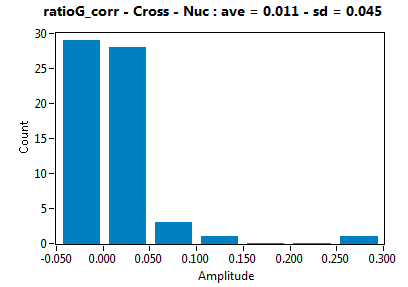

c_corr [nM] - Ch1 - Nuc : ave = 675.492 - sd = 397.101ratioG_corr - Cross - Nuc : ave = 0.011 - sd = 0.045r = 0.668 - r^2 = 0.446
c_corr [nM] - Ch1 - Cyto : ave = 129.856 - sd = 157.979Int_corr [kHz] - Ch1 - Cyto : ave = 31.304 - sd = 35.905r = 0.910 - r^2 = 0.828
f_1 - Ch1 - Cyto : ave = 0.901 - sd = 0.058D_1 [mum^2/s] - Ch1 - Cyto : ave = 25.590 - sd = 14.444r = 0.451 - r^2 = 0.203

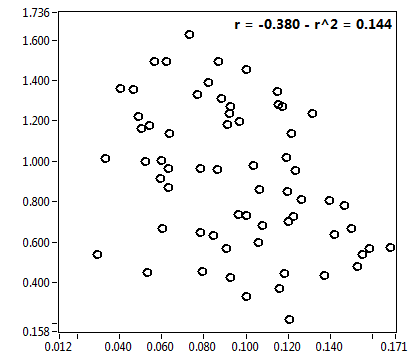

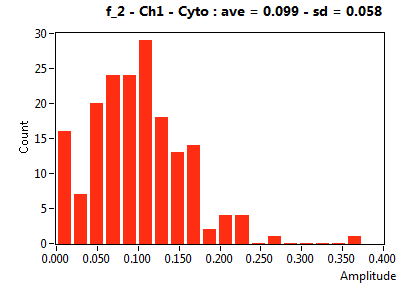

f_2 - Ch1 - Cyto : ave = 0.099 - sd = 0.058D_2 [mum^2/s] - Ch1 - Cyto : ave = 0.989 - sd = 0.554r = -0.380 - r^2 = 0.144

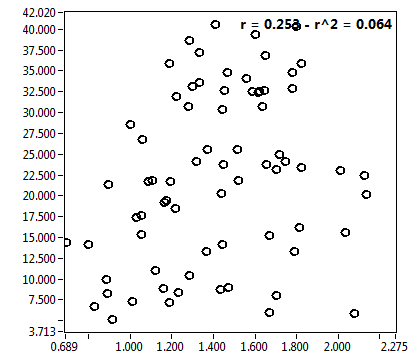

CPM_corr [kHz] - Ch1 - Cyto : ave = 1.412 - sd = 0.482D_m [mum^2/s] - Ch1 - Cyto : ave = 23.288 - sd = 13.050r = 0.253 - r^2 = 0.064
